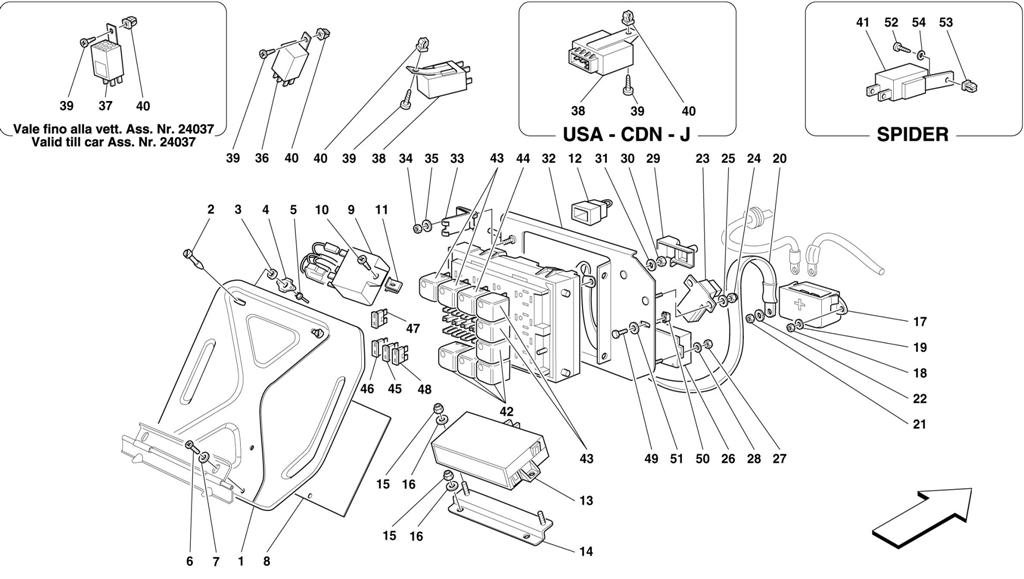

ELECTRICAL BOARDS - PASSENGERS COMPARTMENT

Go to Split View

ELECTRICAL BOARDS - PASSENGERS COMPARTMENT

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 168488 *Qty: 1 COMPLETE DASHBOARD ELECTRIC CONTROL STATION Call
Location: 1 Prev | Next Part: 62129900 *Qty: 1 FOOT-REST FOR PASSENGER -Not for GD $37.23
Location: 1 Prev | Next Part: 62174500 *Qty: 1 FOOT-REST FOR PASSENGER -Valid for GD $39.70
Location: 2 Prev | Next Part: 62538600 *Qty: 2 PIN $10.41
Location: 3 Prev | Next Part: 61866900 *Qty: 2 RUBBER $2.47
Location: 4 Prev | Next Part: 61867000 *Qty: 2 CLIP FOR PIN $3.85
Location: 5 Prev | Next Part: 12838850 *Qty: 4 RIVET $0.90
Location: 6 Prev | Next Part: 13276011 *Qty: 2 SCREW $0.90
Location: 7 Prev | Next Part: 12644424 *Qty: 2 WASHER $0.90
Location: 8 Prev | Next Part: 171371 *Qty: 1 RELAYS NAMEPLATE -Not for GD $30.03
Location: 8 Prev | Next Part: 171758 *Qty: 1 RELAYS NAMEPLATE -Valid for GD $18.79
Location: 9 Prev | Next Part: 178720 *Qty: 1 DOORS LOCKING ELECTRIC UNIT $42.63
Location: 10 Prev | Next Part: 15687970 *Qty: 1 SCREW $0.90
Location: 11 Prev | Next Part: 61789700 *Qty: 1 BRACKET $0.90
Location: 12 Prev | Next Part: 174943 *Qty: 1 BRACKET FOR ABS CUT-OUT CABLES WITHOUT CONTROL UNIT $7.10
Location: 13 Prev | Next Part: 157497 *Qty: 1 SHOCK ABSORBER CONTROL STATION Call
Location: 14 Prev | Next Part: 158721 *Qty: 1 CONTROL UNIT FIXING BRACKET $4.04
Location: 15 Prev | Next Part: 102948 *Qty: 4 NUT $0.90
Location: 16 Prev | Next Part: 10519424 *Qty: 4 WASHER Call
Location: 17 Prev | Next Part: 170114 *Qty: 1 TERMINAL BOX $55.22
Location: 18 Prev | Next Part: 62790300 *Qty: 2 NUT $0.90
Location: 19 Prev | Next Part: 10519224 *Qty: 2 WASHER $0.90
Location: 20 Prev | Next Part: 157801 *Qty: 1 CONNECTING PLAIT $44.90
Location: 21 Prev | Next Part: 101139 *Qty: 3 NUT $0.90
Location: 22 Prev | Next Part: 12601374 *Qty: 3 WASHER $0.90
Location: 23 Prev | Next Part: 156086 *Qty: 1 ABS CUT-OUT CONTROL STATION -Not for USA, CDN and AUS $409.21
Location: 24 Prev | Next Part: 62790300 *Qty: 2 NUT -Not for USA, CDN and AUS $0.90
Location: 25 Prev | Next Part: 12642877 *Qty: 2 WASHER -Not for USA, CDN and AUS $0.90
Location: 26 Prev | Next Part: 63488400 *Qty: 1 FUEL LEVEL INDICATOR CONTROL STATION Call
Location: 27 Prev | Next Part: 61002200 *Qty: 2 NUT $0.90
Location: 28 Prev | Next Part: 62767100 *Qty: 2 WASHER $0.90
Location: 29 Prev | Next Part: 160455 *Qty: 1 PROTECTION PLUG $3.47
Location: 30 Prev | Next Part: 102741 *Qty: 1 NUT $0.90
Location: 31 Prev | Next Part: 10519424 *Qty: 1 WASHER Call
Location: 32 Prev | Next Part: 166898 *Qty: 1 CONTROL UNIT FIXING BRACKET -Not for 355 F1 -Not for GD $51.88
Location: 32 Prev | Next Part: 168504 *Qty: 1 CONTROL UNIT FIXING BRACKET -Not for 355 F1 -Valid for GD $54.31
Location: 32 Prev | Next Part: 171126 *Qty: 1 CONTROL UNIT FIXING BRACKET -Valid for 355 F1 -Not for GD $64.70
Location: 32 Prev | Next Part: 174029 *Qty: 1 CONTROL UNIT FIXING BRACKET -Valid for 355 F1 -Valid for GD $64.70
Location: 33 Prev | Next Part: 62512200 *Qty: 2 FRONT ELECTRIC BOARD FIXING BRACKET $10.16
Location: 34 Prev | Next Part: 169180 *Qty: 2 NUT $0.90
Location: 35 Prev | Next Part: 14496324 *Qty: 2 WASHER $4.02
Location: 36 Prev | Next Part: 158019 *Qty: 1 DIRECTION-EMERGENCY LIGHTS RELAY -Not for USA, CDN and J -Valid till car Ass. Nr. 24037 $114.99
Location: 36 Prev | Next Part: 164369 *Qty: 1 DIRECTION-EMERGENCY LIGHTS RELAY -Valid for USA, CDN and J -Valid till car Ass. Nr. 24037 Call
Location: 36 Prev | Next Part: 171798 *Qty: 1 DIRECTION-EMERGENCY LIGHTS RELAY -Not for USA, CDN and J -Valid from car Ass. Nr. 24038 $211.81
Location: 36 Prev | Next Part: 213326 *Qty: 1 DIRECTION-EMERGENCY LIGHTS RELAY -Valid for USA, CDN and J -Valid from car Ass. Nr. 24038 Call
Location: 37 Prev | Next Part: 157498 *Qty: 1 DIRECTION LIGHTS ACOUSTIC REPEATER -Valid till car Ass. Nr. 24037 -See ref. 36 from car Ass. Nr. Call
Location: 38 Prev | Next Part: 61830700 *Qty: 1 SAFETY BELTS, BRAKES AND OPEN DOOR BUZZER WARNINGS CONTROL UNIT -Valid for USA, CDN and J $82.82
Location: 38 Prev | Next Part: 137667 *Qty: 1 BRAKES WARNING LIGHT CONTROL SIGNALLER -Not for USA, CDN and J $82.43
Location: 39 Prev | Next Part: 15688170 *Qty: 2 SCREW $0.90
Location: 40 Prev | Next Part: 14201980 *Qty: 2 BLOCK $0.90
Location: 41 Prev | Next Part: 137666 *Qty: 1 TOP MOVEMENT BUZZER -Valid for Spider $81.44
Location: 42 Prev | Next Part: 157991 *Qty: 4 SWITCH RELAY $34.75
Location: 43 Prev | Next Part: 175318 *Qty: 2 INJECTION DEVICE RELAY $34.77
Location: 44 Prev | Next Part: 157802 *Qty: 1 DOUBLE SWITCH RELAY Call
Location: 45 Prev | Next Part: 125241 *Qty: 7 FUSE 10 A. $0.90
Location: 46 Prev | Next Part: 125242 *Qty: 7 FUSE 15 A. $0.90
Location: 47 Prev | Next Part: 125243 *Qty: 3 FUSE 20 A. $0.90
Location: 48 Prev | Next Part: 131941 *Qty: 3 FUSE 30 A. Call
Location: 49 Prev | Next Part: 10977624 *Qty: 1 SCREW $0.90
Location: 50 Prev | Next Part: 62923900 *Qty: 1 NUT WITH CAGE $0.90
Location: 51 Prev | Next Part: 12637824 *Qty: 1 WASHER $0.90
Location: 52 Prev | Next Part: 15688175 *Qty: 1 SCREW -Valid for Spider $0.90
Location: 53 Prev | Next Part: 14201980 *Qty: 1 BLOCK -Valid for Spider $0.90
Location: 54 Prev | Next Part: 10519424 *Qty: 1 WASHER -Valid for Spider Call

* Quantity shown indicates the number of pieces used in the diagram.
