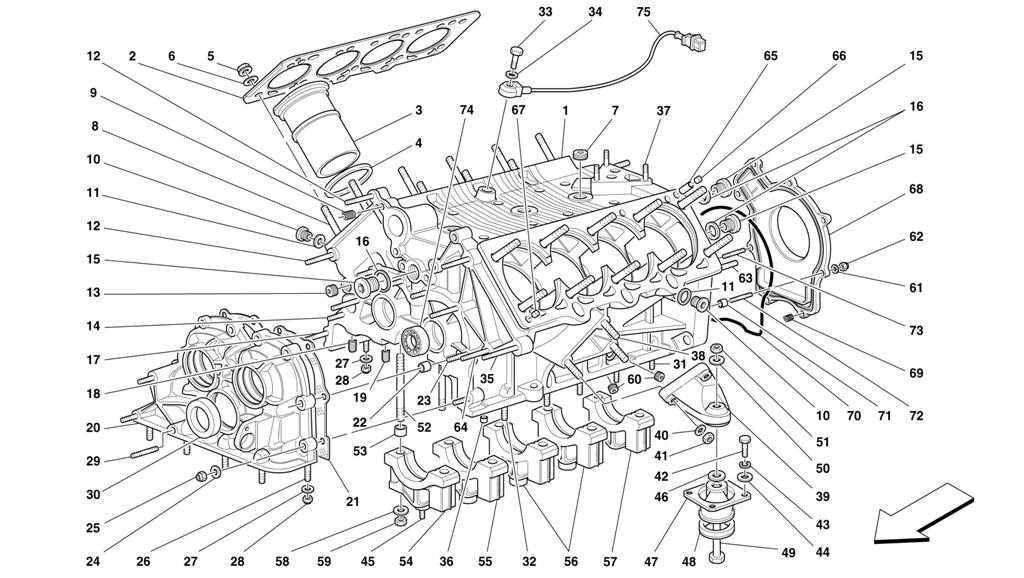

CRANKCASE

Go to Split View

CRANKCASE

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 164025 *Qty: 1 COMPLETE CRANKCASE Call
Location: 1 Prev | Next Part: 164848 *Qty: 1 CRANKCASE -Not as spare part -With the complete crankcase Call
Location: 2 Prev | Next Part: 150311 *Qty: 2 GASKET $172.82
Location: 3 Prev | Next Part: 136875 *Qty: 8 CYLINDERS LINER $635.40
Location: 4 Prev | Next Part: 136258 *Qty: 8 GASKET $6.80
Location: 5 Prev | Next Part: 148093 *Qty: 20 NUT $30.14
Location: 6 Prev | Next Part: 151117 *Qty: 20 WASHER $1.42
Location: 7 Prev | Next Part: 14325540 *Qty: 3 THREADED PLUG $12.13
Location: 8 Prev | Next Part: 148311 *Qty: 20 STUD $20.51
Location: 9 Prev | Next Part: 13525870 *Qty: 4 THREADED INSERT $3.43
Location: 10 Prev | Next Part: 150731 *Qty: 2 WATER OUTLET PLUG $4.87
Location: 11 Prev | Next Part: 10280060 *Qty: 2 GASKET $0.90
Location: 12 Prev | Next Part: 13544024 *Qty: 2 STUD $0.90
Location: 13 Prev | Next Part: 14325140 *Qty: 1 THREADED PLUG $1.86
Location: 14 Prev | Next Part: 13543424 *Qty: 5 STUD $0.90
Location: 15 Prev | Next Part: 10275011 *Qty: 3 THREADED PLUG $2.30
Location: 16 Prev | Next Part: 10263460 *Qty: 3 GASKET Superseded
Location: 17 Prev | Next Part: 13544024 *Qty: 1 STUD $0.90
Location: 18 Prev | Next Part: 13525870 *Qty: 3 THREADED INSERT $3.43
Location: 19 Prev | Next Part: 13525770 *Qty: 1 THREADED INSERT $0.90
Location: 20 Prev | Next Part: 154113 *Qty: 1 FRONT COVER -Not as spare part -With the complete crankcase Call
Location: 21 Prev | Next Part: 153921 *Qty: 1 GASKET $18.82
Location: 22 Prev | Next Part: 100041 *Qty: 2 DOWEL $9.30
Location: 23 Prev | Next Part: 13543624 *Qty: 1 STUD $0.90
Location: 24 Prev | Next Part: 12601374 *Qty: 9 WASHER $0.90
Location: 25 Prev | Next Part: 101139 *Qty: 9 NUT $0.90
Location: 26 Prev | Next Part: 13543524 *Qty: 6 STUD $0.95
Location: 27 Prev | Next Part: 12604474 *Qty: 18 WASHER $0.90
Location: 28 Prev | Next Part: 101139 *Qty: 18 NUT $0.90
Location: 29 Prev | Next Part: 13517224 *Qty: 3 STUD $1.02
Location: 30 Prev | Next Part: 163985 *Qty: 1 GASKET -Substitutes 133628 $45.80
Location: 30 Prev | Next Part: 133628 *Qty: 1 GASKET -Not as spare part for F355 replaced by 163985 $121.20
Location: 31 Prev | Next Part: 13543324 *Qty: 11 STUD $4.04
Location: 32 Prev | Next Part: 13543524 *Qty: 1 STUD $0.95
Location: 33 Prev | Next Part: 16043834 *Qty: 2 SCREW $0.90
Location: 34 Prev | Next Part: 11198074 *Qty: 2 WASHER $0.90
Location: 35 Prev | Next Part: 13544321 *Qty: 1 STUD Superseded
Location: 36 Prev | Next Part: 102725 *Qty: 2 DOWEL $0.90
Location: 37 Prev | Next Part: 13543524 *Qty: 3 STUD $0.95
Location: 38 Prev | Next Part: 13546624 *Qty: 6 STUD $1.14
Location: 39 Prev | Next Part: 159955 *Qty: 2 ENGINE FIXING SUPPORT $468.63
Location: 40 Prev | Next Part: 11190574 *Qty: 6 WASHER $0.90
Location: 41 Prev | Next Part: 133988 *Qty: 6 NUT $0.90
Location: 42 Prev | Next Part: 15970634 *Qty: 8 SCREW $0.90
Location: 43 Prev | Next Part: 127497 *Qty: 8 WASHER $0.90
Location: 44 Prev | Next Part: 14496624 *Qty: 8 WASHER $0.90
Location: 45 Prev | Next Part: 13516624 *Qty: 4 STUD $0.90
Location: 46 Prev | Next Part: 162373 *Qty: 2 UPPER SPACER $202.13
Location: 47 Prev | Next Part: 162769 *Qty: 2 WICK BODY $135.88
Location: 48 Prev | Next Part: 162375 *Qty: 2 LOWER SPACER Call
Location: 49 Prev | Next Part: 15864234 *Qty: 2 SCREW $5.31
Location: 50 Prev | Next Part: 12601774 *Qty: 2 WASHER $0.90
Location: 51 Prev | Next Part: 176573 *Qty: 2 NUT $1.32
Location: 52 Prev | Next Part: 104075 *Qty: 10 STUD $14.41
Location: 53 Prev | Next Part: 125317 *Qty: 10 DOWEL $1.44
Location: 54 Prev | Next Part: 152158 *Qty: 1 FRONT HAT -Not as spare part -With the complete crankcase Call
Location: 55 Prev | Next Part: 152159 *Qty: 1 FRONT INTERMEDIATE HAT -Not as spare part -With the complete crankcase Call
Location: 56 Prev | Next Part: 152098 *Qty: 2 INTERMEDIATE CENTRAL AND REAR HAT -Not as spare part -With the complete crankcase Call
Location: 57 Prev | Next Part: 152099 *Qty: 1 REAR HAT -Not as spare part -With the complete crankcase Call
Location: 58 Prev | Next Part: 103842 *Qty: 10 WASHER $3.84
Location: 59 Prev | Next Part: 6103841 *Qty: 10 NUT $5.31
Location: 60 Prev | Next Part: 164400 *Qty: 2 THREADED PLUG $4.55
Location: 61 Prev | Next Part: 12620474 *Qty: 6 WASHER $0.90
Location: 62 Prev | Next Part: 15896214 *Qty: 6 NUT $0.90
Location: 63 Prev | Next Part: 13547135 *Qty: 4 STUD $15.96
Location: 64 Prev | Next Part: 13544024 *Qty: 2 STUD $0.90
Location: 65 Prev | Next Part: 156862 *Qty: 2 NONRETURN VALVE $20.60
Location: 66 Prev | Next Part: 156865 *Qty: 2 DOWEL (R.H. FRONT-L.H. REAR) $31.76
Location: 67 Prev | Next Part: 156864 *Qty: 2 DOWEL (L.H. FRONT-R.H. REAR) $2.92
Location: 68 Prev | Next Part: 142471 *Qty: 1 REAR COVER $770.24
Location: 69 Prev | Next Part: 13525570 *Qty: 2 THREADED INSERT $3.27
Location: 70 Prev | Next Part: 142472 *Qty: 1 O.R. GASKET $22.34
Location: 71 Prev | Next Part: 103038 *Qty: 2 DOWEL $1.60
Location: 72 Prev | Next Part: 13541124 *Qty: 2 STUD $8.19
Location: 73 Prev | Next Part: 13540824 *Qty: 4 STUD $0.90
Location: 74 Prev | Next Part: 171177 *Qty: 2 BEARING -Valid after stock exhaustion of 144713 $21.32
Location: 75 Prev | Next Part: 169474 *Qty: 2 SENSOR FOR FIRING $149.34

* Quantity shown indicates the number of pieces used in the diagram.
