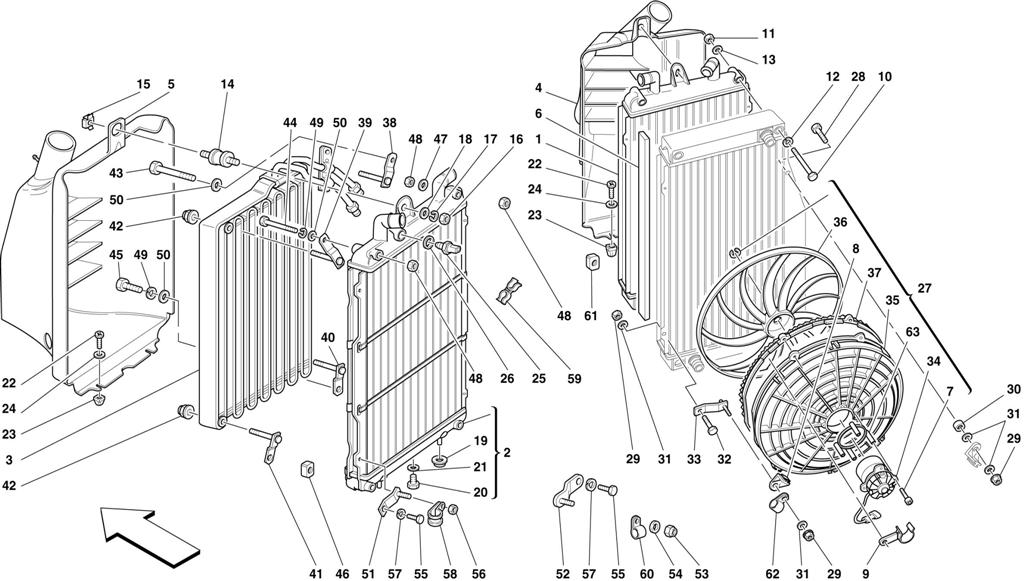

COOLING SYSTEM RADIATORS

Go to Split View

COOLING SYSTEM RADIATORS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 157589 *Qty: 1 WATER R.H. RADIATOR $723.09
Location: 2 Prev | Next Part: 157590 *Qty: 1 WATER L.H. RADIATOR Call
Location: 3 Prev | Next Part: 62963600 *Qty: 1 A.C. CONDENSER $705.96
Location: 4 Prev | Next Part: 64525700 *Qty: 1 R.H. AIR INLET $921.76
Location: 5 Prev | Next Part: 65513500 *Qty: 1 L.H. AIR INLET $954.69
Location: 6 Prev | Next Part: 158243 *Qty: 2 GASKET $8.75
Location: 7 Prev | Next Part: 166550 *Qty: 8 SCREW $11.26
Location: 8 Prev | Next Part: 166548 *Qty: 8 SUPPORT -Valid till Ass. Nr. 24391 -Valid till stock exhaustion -After stock exhaustion require 1 $12.02
Location: 8 Prev | Next Part: 177930 *Qty: 8 SUPPORT -Valid from Ass. Nr. 24392 $1.13
Location: 9 Prev | Next Part: 162751 *Qty: 1 FLEXIBLE CLIP $0.90
Location: 10 Prev | Next Part: 16045624 *Qty: 4 SCREW $0.97
Location: 11 Prev | Next Part: 133989 *Qty: 2 NUT $0.90
Location: 12 Prev | Next Part: 127496 *Qty: 4 WASHER $0.90
Location: 13 Prev | Next Part: 14496524 *Qty: 4 WASHER $0.90
Location: 14 Prev | Next Part: 157650 *Qty: 2 PAD $14.89
Location: 15 Prev | Next Part: 14074890 *Qty: 2 NUT WITH CAGE $0.90
Location: 16 Prev | Next Part: 133989 *Qty: 2 NUT $0.90
Location: 17 Prev | Next Part: 127496 *Qty: 2 WASHER $0.90
Location: 18 Prev | Next Part: 124338 *Qty: 2 WASHER $3.69
Location: 19 Prev | Next Part: 137624 *Qty: 4 ANTIVIBRATION PAD Call
Location: 20 Prev | Next Part: 159923 *Qty: 2 THREADED PLUG $9.54
Location: 21 Prev | Next Part: 140150 *Qty: 2 O.R. GASKET $5.72
Location: 22 Prev | Next Part: 15903970 *Qty: 10 SCREW $0.90
Location: 23 Prev | Next Part: 14202580 *Qty: 10 BLOCK $0.90
Location: 24 Prev | Next Part: 12638124 *Qty: 10 WASHER $0.90
Location: 25 Prev | Next Part: 158655 *Qty: 1 TEMPERATURE SWITCH $29.90
Location: 26 Prev | Next Part: 101508 *Qty: 1 GASKET $1.46
Location: 27 Prev | Next Part: 173030 *Qty: 2 COMPLETE ELECTROFAN -Valid from Ass. Nr. 24392 $415.00
Location: 28 Prev | Next Part: 10902724 *Qty: 2 SCREW -Valid till Ass. Nr. 24391 -Valid till stock exhaustion -After stock exhaustion require 173 $0.90
Location: 28 Prev | Next Part: 10903024 *Qty: 2 SCREW -Valid from Ass. Nr. 24392 $0.90
Location: 29 Prev | Next Part: 102741 *Qty: 6 NUT $0.90
Location: 30 Prev | Next Part: 162424 *Qty: 2 SPACER -Valid till Ass. Nr. 24391 -Valid till stock exhaustion -After stock exhaustion require 17 $3.90
Location: 30 Prev | Next Part: 173032 *Qty: 2 SPACER -Valid from Ass. Nr. 24392 $3.60
Location: 31 Prev | Next Part: 12644424 *Qty: 8 WASHER $0.90
Location: 32 Prev | Next Part: 10902024 *Qty: 2 SCREW $0.90
Location: 33 Prev | Next Part: 162422 *Qty: 2 SMALL PLATE $16.70
Location: 34 Prev | Next Part: 153174 *Qty: 2 ELECTRIC FAN MOTOR -Valid till stock exhaustion -See Ref. 27 after stock exhaustion Call
Location: 35 Prev | Next Part: 152920 *Qty: 2 AIR CONVEYOR -Spare part till stock exhaustion -See Ref. 27 after stock exhaustion $126.52
Location: 36 Prev | Next Part: 164096 *Qty: 2 BLOWER -Spare part till stock exhaustion -See Ref. 27 after stock exhaustion Call
Location: 37 Prev | Next Part: 164097 *Qty: 2 RUBBER EDGE -Spare part till stock exhaustion -See Ref. 27 after stock exhaustion Call
Location: 38 Prev | Next Part: 64303200 *Qty: 1 R.H. UPPER BRACKET $4.65
Location: 39 Prev | Next Part: 64255200 *Qty: 1 L.H. UPPER BRACKET $3.32
Location: 40 Prev | Next Part: 64306300 *Qty: 1 R.H. LOWER BRACKET $3.32
Location: 41 Prev | Next Part: 64255600 *Qty: 1 L.H. LOWER BRACKET $3.52
Location: 42 Prev | Next Part: 15896214 *Qty: 4 NUT $0.90
Location: 43 Prev | Next Part: 16044624 *Qty: 1 SCREW $1.97
Location: 44 Prev | Next Part: 16044424 *Qty: 1 SCREW Call
Location: 45 Prev | Next Part: 16043324 *Qty: 2 SCREW $0.90
Location: 46 Prev | Next Part: 14095511 *Qty: 2 NUT $0.90
Location: 47 Prev | Next Part: 64322200 *Qty: 1 WASHER $0.90
Location: 48 Prev | Next Part: 133989 *Qty: 3 NUT $0.90
Location: 49 Prev | Next Part: 127496 *Qty: 3 WASHER $0.90
Location: 50 Prev | Next Part: 14496524 *Qty: 4 WASHER $0.90
Location: 51 Prev | Next Part: 173038 *Qty: 2 SMALL PLATE -Valid from Ass. Nr. 24392 $2.30
Location: 51 Prev | Next Part: 162423 *Qty: 2 SMALL PLATE -Valid till Ass. Nr. 24391 -Valid till stock exhaustion -After stock exhaustion requi $16.70
Location: 52 Prev | Next Part: 173036 *Qty: 2 SMALL PLATE -Valid from Ass. Nr. 24392 $2.05
Location: 52 Prev | Next Part: 162422 *Qty: 2 SMALL PLATE -Valid till Ass. Nr. 24391 -Valid till stock exhaustion -After stock exhaustion requi $16.70
Location: 53 Prev | Next Part: 102741 *Qty: 4 NUT $0.90
Location: 54 Prev | Next Part: 12644424 *Qty: 4 WASHER $0.90
Location: 55 Prev | Next Part: 10902124 *Qty: 4 SCREW $0.90
Location: 56 Prev | Next Part: 102741 *Qty: 4 NUT $0.90
Location: 57 Prev | Next Part: 127494 *Qty: 4 WASHER $0.90
Location: 58 Prev | Next Part: 10441690 *Qty: 2 BRACKET WITH SHEATH $0.90
Location: 59 Prev | Next Part: 164374 *Qty: 1 FLEXIBLE CLIP $0.94
Location: 60 Prev | Next Part: 10418301 *Qty: 1 BRACKET Call
Location: 61 Prev | Next Part: 14095511 *Qty: 2 NUT $0.90
Location: 62 Prev | Next Part: 10418301 *Qty: 1 BRACKET Call
Location: 63 Prev | Next Part: 177938 *Qty: 1 SPACER SUPPORT -Valid from Ass. Nr. 24392 -Valid till stock exhaustion -See Ref. 27 after stock e Call

* Quantity shown indicates the number of pieces used in the diagram.
