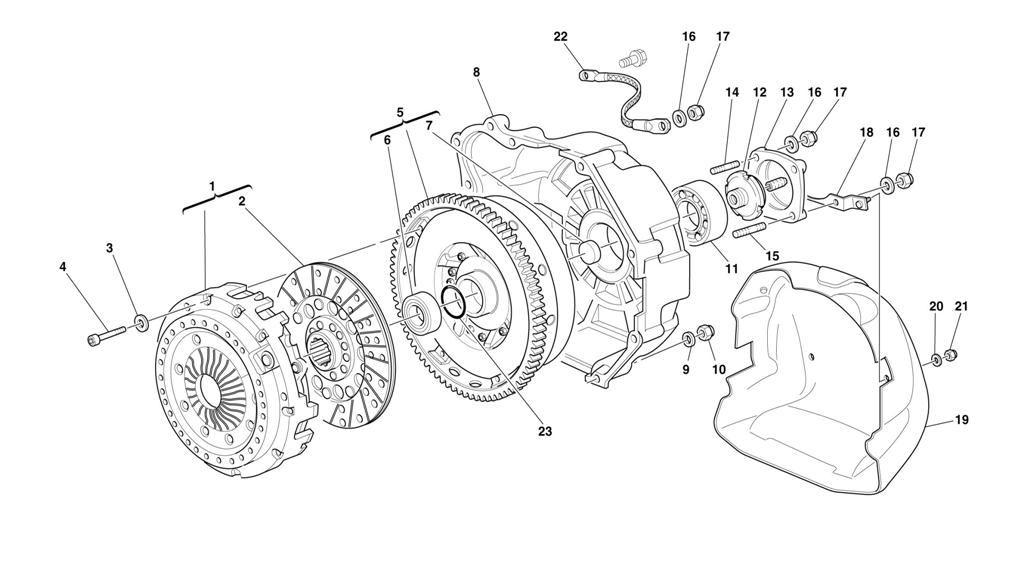

CLUTCH

Go to Split View

CLUTCH

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 164050 *Qty: 1 COMPLETE CLUTCH HOUSING Call
Location: 1 Prev | Next Part: 157754 *Qty: 1 COMPLETE CLUTCH $1,535.71
Location: 2 Prev | Next Part: 157756 *Qty: 1 CLUTCH DISC Call
Location: 3 Prev | Next Part: 10569279 *Qty: 9 WASHER $0.90
Location: 4 Prev | Next Part: 14305674 *Qty: 9 SCREW $0.90
Location: 5 Prev | Next Part: 159507 *Qty: 1 FLYWHEEL $4,519.11
Location: 6 Prev | Next Part: 165539 *Qty: 1 BEARING $147.37
Location: 7 Prev | Next Part: 165540 *Qty: 1 SPACER Call
Location: 8 Prev | Next Part: 157887 *Qty: 1 CLUTCH HOUSING -Not as spare part -With the complete clutch housing Call
Location: 9 Prev | Next Part: 12601374 *Qty: 8 WASHER $0.90
Location: 10 Prev | Next Part: 16100821 *Qty: 8 NUT $3.46
Location: 11 Prev | Next Part: 136957 *Qty: 1 BEARING $279.12
Location: 12 Prev | Next Part: 168156 *Qty: 1 SPECIAL SCREW $57.00
Location: 13 Prev | Next Part: 171408 *Qty: 1 SMALL COVER $175.86
Location: 14 Prev | Next Part: 12354524 *Qty: 2 STUD $37.74
Location: 15 Prev | Next Part: 13543424 *Qty: 2 STUD $0.90
Location: 16 Prev | Next Part: 12601374 *Qty: 4 WASHER $0.90
Location: 17 Prev | Next Part: 16100821 *Qty: 4 NUT $3.46
Location: 18 Prev | Next Part: 171574 *Qty: 1 BRACKET $147.53
Location: 19 Prev | Next Part: 170694 *Qty: 1 INSULATING SHIELD $922.74
Location: 20 Prev | Next Part: 10523424 *Qty: 2 WASHER $0.90
Location: 21 Prev | Next Part: 15896214 *Qty: 2 NUT $0.90
Location: 22 Prev | Next Part: 155073 *Qty: 1 CABLE FOR ENGINE-FRAME EARTH $13.84
Location: 23 Prev | Next Part: 104984 *Qty: 1 O.R. GASKET $1.69

* Quantity shown indicates the number of pieces used in the diagram.
