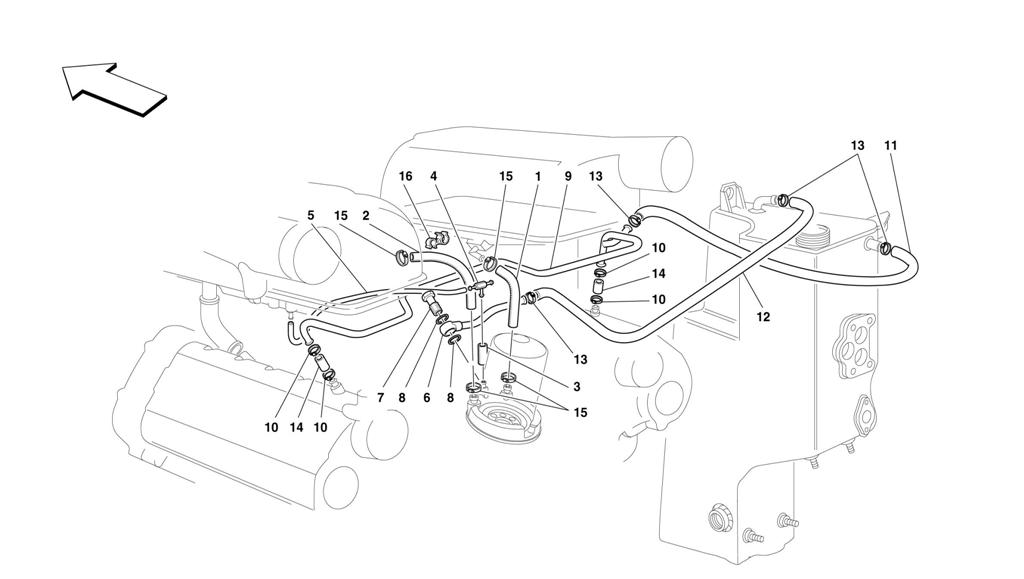

BLOW-BY SYSTEM

Go to Split View

BLOW-BY SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 160932 *Qty: 1 R.H. OIL EXHAUST TUBE Call
Location: 2 Prev | Next Part: 160931 *Qty: 1 L.H. OIL EXHAUST TUBE Call
Location: 3 Prev | Next Part: 137904 *Qty: 1 PIPE FROM FILTER TO 3-WAY UNION $4.95
Location: 4 Prev | Next Part: 161816 *Qty: 1 3-WAY UNION Call
Location: 5 Prev | Next Part: 115676 *Qty: 2 RUBBER HOSE FROM UNION TO AIR CAPACITY UNION -Substitutes 126342 $10.92
Location: 5 Prev | Next Part: 126342 *Qty: 2 RUBBER HOSE FROM UNION TO AIR CAPACITY UNION -Not as spare part for F355 replaced by 115676 $4.31
Location: 6 Prev | Next Part: 159409 *Qty: 1 SWINGING PIPE $66.58
Location: 7 Prev | Next Part: 159424 *Qty: 1 UNION $13.94
Location: 8 Prev | Next Part: 10257060 *Qty: 2 GASKET $0.90
Location: 9 Prev | Next Part: 163622 *Qty: 1 BREATHER PIPE $112.01
Location: 10 Prev | Next Part: 13000290 *Qty: 4 SCREW COLLAR $0.90
Location: 11 Prev | Next Part: 160017 *Qty: 1 PIPE FROM 3-WAY TO RESERVOIR $111.20
Location: 12 Prev | Next Part: 160018 *Qty: 1 PIPE FROM BREATHER BODY TO RESERVOIR $73.90
Location: 13 Prev | Next Part: 13000390 *Qty: 4 SCREW COLLAR $0.90
Location: 14 Prev | Next Part: 165557 *Qty: 2 RUBBER HOSE $46.77
Location: 15 Prev | Next Part: 13000290 *Qty: 4 SCREW COLLAR $0.90
Location: 16 Prev | Next Part: 139966 *Qty: 2 FLEXIBLE CLIP $0.90

* Quantity shown indicates the number of pieces used in the diagram.
