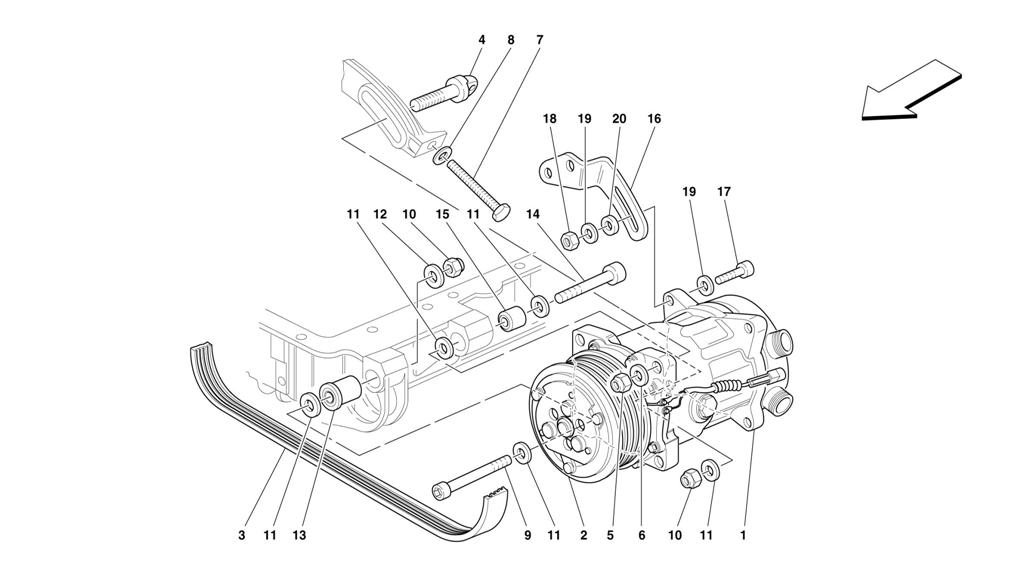

AIR CONDITIONING COMPRESSOR

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 157355 *Qty: 1 AIR CONDITIONING COMPRESSOR $520.00
Location: 2 Prev | Next Part: 138331 *Qty: 1 ELECTRO-MAGNETIC JOINT $1,244.63
Location: 3 Prev | Next Part: 199830 *Qty: 1 COMPRESSOR CONTROL BELT $23.27
Location: 4 Prev | Next Part: 178283 *Qty: 1 THREADED PIN -Valid for bracket 178256 -See Pos. 30 Table 6 $28.71
Location: 4 Prev | Next Part: 156434 *Qty: 1 THREADED PIN -Valid for bracket 162947 -See Pos. 30 Table 6 $92.45
Location: 5 Prev | Next Part: 102742 *Qty: 1 NUT $0.90
Location: 6 Prev | Next Part: 13550401 *Qty: 1 WASHER $0.90
Location: 7 Prev | Next Part: 125668 *Qty: 1 SCREW $1.81
Location: 8 Prev | Next Part: 14496524 *Qty: 1 WASHER $0.90
Location: 9 Prev | Next Part: 101632 *Qty: 1 SCREW $12.28
Location: 10 Prev | Next Part: 102742 *Qty: 2 NUT $0.90
Location: 11 Prev | Next Part: 12642524 *Qty: 5 WASHER $0.90
Location: 12 Prev | Next Part: 12626224 *Qty: 1 WASHER $0.90
Location: 13 Prev | Next Part: 137768 *Qty: 1 ESTENDBLOCK $16.17
Location: 14 Prev | Next Part: 14308121 *Qty: 1 SCREW $3.85
Location: 15 Prev | Next Part: 135108 *Qty: 1 ESTENDBLOCK Call
Location: 16 Prev | Next Part: 162946 *Qty: 1 REAR BRACKET $43.23
Location: 17 Prev | Next Part: 14307624 *Qty: 1 SCREW $2.23
Location: 18 Prev | Next Part: 133988 *Qty: 1 NUT $0.90
Location: 19 Prev | Next Part: 12604579 *Qty: 2 WASHER $1.51
Location: 20 Prev | Next Part: 12626021 *Qty: 1 WASHER $0.90

* Quantity shown indicates the number of pieces used in the diagram.
