AIR BOXES

Go to Split View

AIR BOXES

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 170018 *Qty: 1 COMPLETE R.H. AIR FEEDING PLENUM CHAMBER AND COVER -Not for USA, CDN, SA, ZA, AUS and J $1,845.61
Location: - Prev | Next Part: 170019 *Qty: 1 COMPLETE L.H. AIR FEEDING PLENUM CHAMBER AND COVER -Not for USA, CDN, SA, ZA, AUS and J $1,868.29
Location: - Prev | Next Part: 167478 *Qty: 1 COMPLETE R.H. AIR FEEDING PLENUM CHAMBER AND COVER -Valid for USA, CDN, SA, ZA, AUS and J $991.84
Location: - Prev | Next Part: 167479 *Qty: 1 COMPLETE L.H. AIR FEEDING PLENUM CHAMBER AND COVER -Valid for USA, CDN, SA, ZA, AUS and J $991.84
Location: 1 Prev | Next Part: 165415 *Qty: 1 R.H. AIR FEEDING PLENUM CHAMBER -Valid for USA, CDN, SA, ZA, AUS and J -Not as spare part ing5 Call
Location: 1 Prev | Next Part: 168709 *Qty: 1 R.H. AIR FEEDING PLENUM CHAMBER -Not for USA, CDN, SA, ZA, AUS and J -Not as spare part -With c Call
Location: 2 Prev | Next Part: 165414 *Qty: 1 L.H. AIR FEEDING PLENUM CHAMBER -Valid for USA, CDN, SA, ZA, AUS and J -Not as spare part ing5 Call
Location: 2 Prev | Next Part: 168710 *Qty: 1 L.H. AIR FEEDING PLENUM CHAMBER -Not for USA, CDN, SA, ZA, AUS and J -Not as spare part -With c Call
Location: 3 Prev | Next Part: 11500724 *Qty: 6 STUD $1.72
Location: 4 Prev | Next Part: 113021 *Qty: 1 PAD $11.10
Location: 5 Prev | Next Part: 160701 *Qty: 2 SLEEVE $71.96
Location: 6 Prev | Next Part: 162397 *Qty: 2 AIR FLOW METER $697.44
Location: 7 Prev | Next Part: 145643 *Qty: 8 GASKET $30.51
Location: 8 Prev | Next Part: 169452 *Qty: 16 SEMI-RING $19.68
Location: 9 Prev | Next Part: 145645 *Qty: 8 CLAMP $11.64
Location: 10 Prev | Next Part: 167356 *Qty: 2 LOWER COVER -Not as spare part now -With compl. air chambers 170018, 170019,167478 and 167479 Call
Location: 11 Prev | Next Part: 14305424 *Qty: 32 SCREW Superseded
Location: 12 Prev | Next Part: 12601274 *Qty: 32 WASHER $0.90
Location: 13 Prev | Next Part: 160846 *Qty: 2 THREADED UNION $6.91
Location: 14 Prev | Next Part: 129808 *Qty: 2 THREADED UNION $6.02
Location: 15 Prev | Next Part: 153926 *Qty: 2 THREADED UNION $42.63
Location: 16 Prev | Next Part: 169180 *Qty: 1 NUT $0.90
Location: 17 Prev | Next Part: 12644424 *Qty: 1 WASHER $0.90
Location: 18 Prev | Next Part: 170444 *Qty: 2 THREADED UNION $37.03
Location: 19 Prev | Next Part: 164279 *Qty: 2 PIPE FROM REGULATOR TO PLENUM CHAMBER $29.40
Location: 20 Prev | Next Part: 166494 *Qty: 1 COMPLETE ANTI-EVAPORATION PIPING $137.23
Location: 21 Prev | Next Part: 128292 *Qty: 1 CLIP $3.15
Location: 22 Prev | Next Part: 153628 *Qty: 1 O.R. GASKET $0.90
Location: 23 Prev | Next Part: 153381 *Qty: 2 GASKET $27.08
Location: 24 Prev | Next Part: 162406 *Qty: 1 REGULATOR FOR IDLE Call
Location: 25 Prev | Next Part: 164337 *Qty: 1 SLEEVE $12.25
Location: 26 Prev | Next Part: 164278 *Qty: 1 SLEEVE $119.62
Location: 27 Prev | Next Part: 13000490 *Qty: 3 SCREW COLLAR Call
Location: 28 Prev | Next Part: 164299 *Qty: 1 R.H. AIR DELIVERY TUBE $180.87
Location: 28 Prev | Next Part: 164300 *Qty: 1 L.H. AIR DELIVERY TUBE $180.87
Location: 29 Prev | Next Part: 13000490 *Qty: 4 SCREW COLLAR Call
Location: 30 Prev | Next Part: 164284 *Qty: 1 BRACKET WITH SHEATH Call
Location: 31 Prev | Next Part: 16043224 *Qty: 1 SCREW $0.90
Location: 32 Prev | Next Part: 12601374 *Qty: 1 WASHER $0.90
Location: 33 Prev | Next Part: 168684 *Qty: 1 R.H. AIR DELIVERY SLEEVE $91.97
Location: 33 Prev | Next Part: 168685 *Qty: 1 L.H. AIR DELIVERY SLEEVE $90.75
Location: 34 Prev | Next Part: 149666 *Qty: 2 O.R. GASKET $3.67
Location: 35 Prev | Next Part: 171001 *Qty: 2 CLAMP $13.40
Location: 36 Prev | Next Part: 13001090 *Qty: 4 SCREW COLLAR $1.88
Location: 37 Prev | Next Part: 164225 *Qty: 1 AIR DELIVERY Y TUBE $225.24
Location: 38 Prev | Next Part: 159517 *Qty: 1 SHIELD $103.43
Location: 39 Prev | Next Part: 10296160 *Qty: 1 GASKET $0.90
Location: 40 Prev | Next Part: 168783 *Qty: 1 DUCT $60.70
Location: 41 Prev | Next Part: 168902 *Qty: 1 CLAMP $16.88
Location: 42 Prev | Next Part: 168911 *Qty: 1 BRACKET Call
Location: 43 Prev | Next Part: 100044 *Qty: 2 NUT $0.90
Location: 44 Prev | Next Part: 14496424 *Qty: 2 WASHER Superseded
Location: 45 Prev | Next Part: 113113 *Qty: 2 WASHER $1.71
Location: 46 Prev | Next Part: 162419 *Qty: 1 AIR TEMPERATURE SENSOR Call
Location: 47 Prev | Next Part: 171000 *Qty: 1 CLAMP $13.71
Location: 48 Prev | Next Part: 126596 *Qty: 1 O.R. GASKET $5.06
Location: 49 Prev | Next Part: 179203 *Qty: 1 FLEXIBLE CLIP -R.h. side Call
Location: 49 Prev | Next Part: 10441790 *Qty: 1 BRACKET WITH SHEATH -L.h. side $0.94

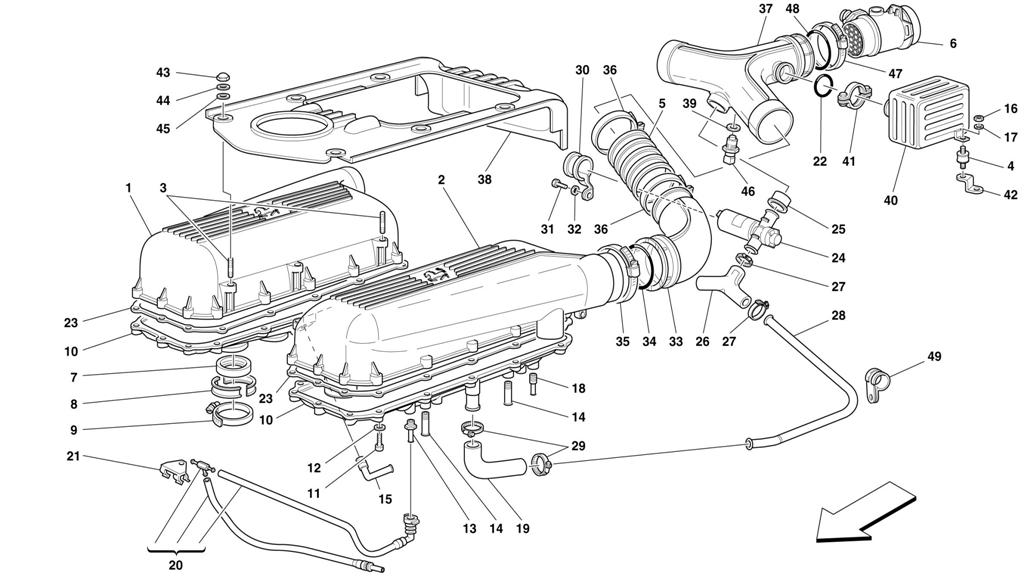

* Quantity shown indicates the number of pieces used in the diagram.
