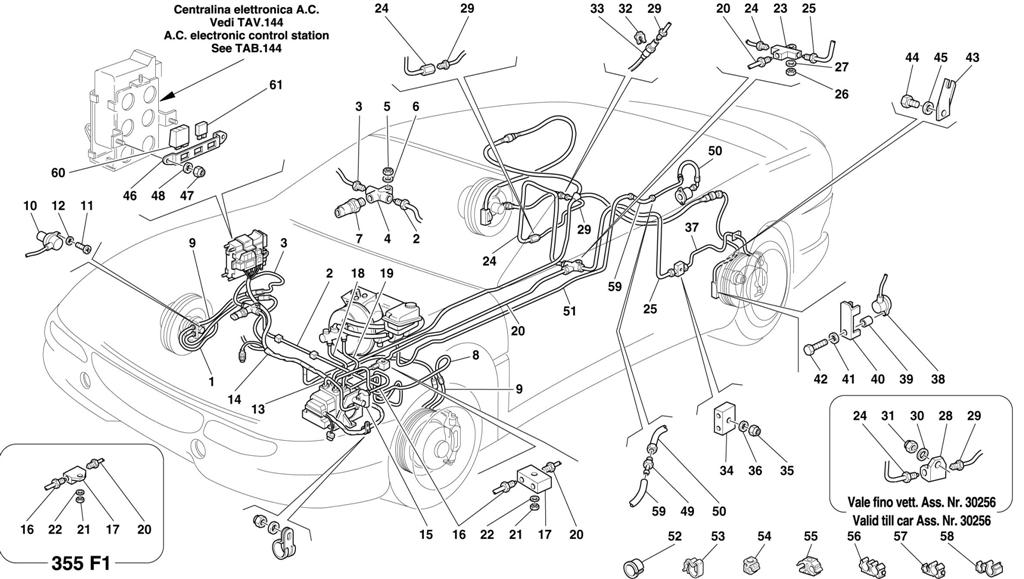

ABS BOSCH BRAKE SYSTEM -VALID FOR ABS BOSCH AND 355 F1 CARS-

Go to Split View

ABS BOSCH BRAKE SYSTEM -VALID FOR ABS BOSCH AND 355 F1 CARS-

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 143641 *Qty: 1 PIPE TO R.H. FRONT CALIPER $180.89
Location: 1 Prev | Next Part: 143669 *Qty: 1 PIPE TO L.H. FRONT CALIPER $180.89
Location: 2 Prev | Next Part: 169048 *Qty: 1 BRAKE PIPE FROM CENTER UNIT TO R.H. FRONT UNION -Valid for GD $17.02
Location: 2 Prev | Next Part: 170641 *Qty: 1 BRAKE PIPE FROM CENTER UNIT TO PRESS SWITCH -Not for GD $17.87
Location: 3 Prev | Next Part: 156241 *Qty: 1 BRAKE PIPE FROM PRESS SWITCH TO R.H. FRONT FLEXIBLE PIPE $22.68
Location: 4 Prev | Next Part: 10104661 *Qty: 1 3-WAY UNION $7.44
Location: 5 Prev | Next Part: 102741 *Qty: 1 NUT $0.90
Location: 6 Prev | Next Part: 12639724 *Qty: 1 WASHER $0.90
Location: 7 Prev | Next Part: 154309 *Qty: 1 PRESSURE SWITCH $38.34
Location: 8 Prev | Next Part: 170642 *Qty: 1 BRAKE PIPE FROM CENTER UNIT TO L.H. REAR FLEXIBLE PIPE $17.83
Location: 9 Prev | Next Part: 116373 *Qty: 2 FRONT BRAKE FLEXIBLE PIPE Superseded
Location: 10 Prev | Next Part: 170592 *Qty: 2 FRONT SENSOR $104.31
Location: 11 Prev | Next Part: 60909500 *Qty: 4 SCREW $2.73
Location: 12 Prev | Next Part: 127494 *Qty: 4 WASHER $0.90
Location: 13 Prev | Next Part: 170643 *Qty: 1 BRAKE PIPE FROM ABS CENTER UNIT TO BRAKING REGULATOR $4.61
Location: 14 Prev | Next Part: 172956 *Qty: 1 CABLES FOR ANTISKID DEVICES CONNECTION -Not for GD $505.25
Location: 14 Prev | Next Part: 172959 *Qty: 1 CABLES FOR ANTISKID DEVICES CONNECTION -Valid for GD $508.09
Location: 15 Prev | Next Part: 172979 *Qty: 1 BRAKING REGULATOR $151.93
Location: 16 Prev | Next Part: 150372 *Qty: 1 PIPE FROM BRAKING CORRECTOR TO FRONT 2-WAY UNION $19.21
Location: 17 Prev | Next Part: 174443 *Qty: 1 2-WAY UNION -Valid for 355 F1 cars $107.89
Location: 17 Prev | Next Part: 139375 *Qty: 1 2-WAY UNION -Not for 355 F1 cars $63.79
Location: 18 Prev | Next Part: 170647 *Qty: 1 PIPE FROM FRONT PUMP TO CENTER UNIT -Valid for GD $18.16
Location: 18 Prev | Next Part: 170640 *Qty: 1 PIPE FROM FRONT PUMP TO CENTER UNIT -Not for GD $15.28
Location: 19 Prev | Next Part: 170639 *Qty: 1 PIPE FROM REAR PUMP TO CENTER UNIT -Not for GD $15.28
Location: 19 Prev | Next Part: 170646 *Qty: 1 PIPE FROM REAR PUMP TO CENTER UNIT -Valid for GD $18.16
Location: 20 Prev | Next Part: 170645 *Qty: 1 PIPE FROM 2-WAY UNION TO 3-WAY UNION $19.44
Location: 21 Prev | Next Part: 102741 *Qty: 1 NUT $0.90
Location: 22 Prev | Next Part: 12639724 *Qty: 1 WASHER $0.90
Location: 23 Prev | Next Part: 10104661 *Qty: 1 3-WAY UNION $7.44
Location: 24 Prev | Next Part: 145076 *Qty: 1 BRAKE PIPE FROM THREE-WAY UNION TO R.H. UNION -Valid till car Ass. Nr. 30256 $9.52
Location: 24 Prev | Next Part: 178668 *Qty: 1 BRAKE PIPE FROM THREE-WAY UNION TO R.H. UNION -Valid from car Ass. Nr. 30257 $20.23
Location: 25 Prev | Next Part: 162756 *Qty: 1 BRAKE PIPE FROM THREE-WAY UNION TO L.H. UNION $21.84
Location: 26 Prev | Next Part: 102741 *Qty: 1 NUT $0.90
Location: 27 Prev | Next Part: 12639724 *Qty: 1 WASHER $0.90
Location: 28 Prev | Next Part: 155215 *Qty: 1 R.H. TWO-WAY UNION -Valid till car Ass. Nr. 30256 $38.32
Location: 29 Prev | Next Part: 165286 *Qty: 1 BRAKE PIPE FROM UNION TO REAR R.H. FLEXIBLE -Valid till car Ass. Nr. 30256 Call
Location: 29 Prev | Next Part: 178669 *Qty: 1 BRAKE PIPE FROM UNION TO REAR R.H. FLEXIBLE -Valid from car Ass. Nr. 30257 Call
Location: 30 Prev | Next Part: 12639724 *Qty: 1 WASHER -Valid till car Ass. Nr. 30256 $0.90
Location: 31 Prev | Next Part: 102741 *Qty: 1 NUT -Valid till car Ass. Nr. 30256 $0.90
Location: 32 Prev | Next Part: 116374 *Qty: 4 CLIP $2.96
Location: 33 Prev | Next Part: 118100 *Qty: 2 REAR BRAKE FLEXIBLE PIPE Superseded
Location: 34 Prev | Next Part: 139375 *Qty: 1 UNION $63.79
Location: 35 Prev | Next Part: 102741 *Qty: 1 NUT $0.90
Location: 36 Prev | Next Part: 12639724 *Qty: 1 WASHER $0.90
Location: 37 Prev | Next Part: 176226 *Qty: 1 BRAKE PIPE FROM UNION TO REAR L.H. FLEXIBLE Call
Location: 38 Prev | Next Part: 170593 *Qty: 2 REAR SENSOR $372.11
Location: 39 Prev | Next Part: 169037 *Qty: 2 SPACER $7.67
Location: 40 Prev | Next Part: 170603 *Qty: 2 REAR SENSOR PROTECTION $38.32
Location: 41 Prev | Next Part: 12601274 *Qty: 2 WASHER $0.90
Location: 42 Prev | Next Part: 10903024 *Qty: 2 SCREW $0.90
Location: 43 Prev | Next Part: 140674 *Qty: 1 R.H. BRACKET $4.47
Location: 43 Prev | Next Part: 140675 *Qty: 1 L.H. BRACKET $4.47
Location: 44 Prev | Next Part: 10902024 *Qty: 2 SCREW $0.90
Location: 45 Prev | Next Part: 12601274 *Qty: 2 WASHER $0.90
Location: 46 Prev | Next Part: 164273 *Qty: 1 BRACKET $14.09
Location: 47 Prev | Next Part: 102948 *Qty: 2 NUT $0.90
Location: 48 Prev | Next Part: 10519378 *Qty: 2 WASHER $0.90
Location: 49 Prev | Next Part: 147978 *Qty: 1 NONRETURN VALVE $19.14
Location: 50 Prev | Next Part: 174523 *Qty: 1 PIPE FOR BRAKE BOOSTER $177.72
Location: 51 Prev | Next Part: 170650 *Qty: 1 BRAKE BOOSTER VACUUM PUMP UNDERFLOOR TUBE $86.91
Location: 52 Prev | Next Part: 105369 *Qty: 3 CABLE GROMMET $1.76
Location: 53 Prev | Next Part: 140798 *Qty: 1 CLIP $0.90
Location: 54 Prev | Next Part: 141505 *Qty: 17 CLIP $1.55
Location: 55 Prev | Next Part: 141522 *Qty: 7 CLIP $2.09
Location: 56 Prev | Next Part: 140130 *Qty: 8 FRONT AND REAR PIPE FIXING MODULE $0.90
Location: 56 Prev | Next Part: 145544 *Qty: 4 FRONT PIPE FIXING MODULE Call
Location: 57 Prev | Next Part: 140742 *Qty: 4 ELASTIC SPRINGS ASSEMBLY -D. 10 - D. 18 $0.90
Location: 58 Prev | Next Part: 150695 *Qty: 2 CLIP -D. 9 - D. 11 $0.90
Location: 59 Prev | Next Part: 173627 *Qty: 1 RUBBER HOSE ENGINE SIDE $14.44
Location: 60 Prev | Next Part: 172871 *Qty: 1 60 A FUSE $12.36
Location: 61 Prev | Next Part: 125241 *Qty: 1 10 A FUSE $0.90

* Quantity shown indicates the number of pieces used in the diagram.
