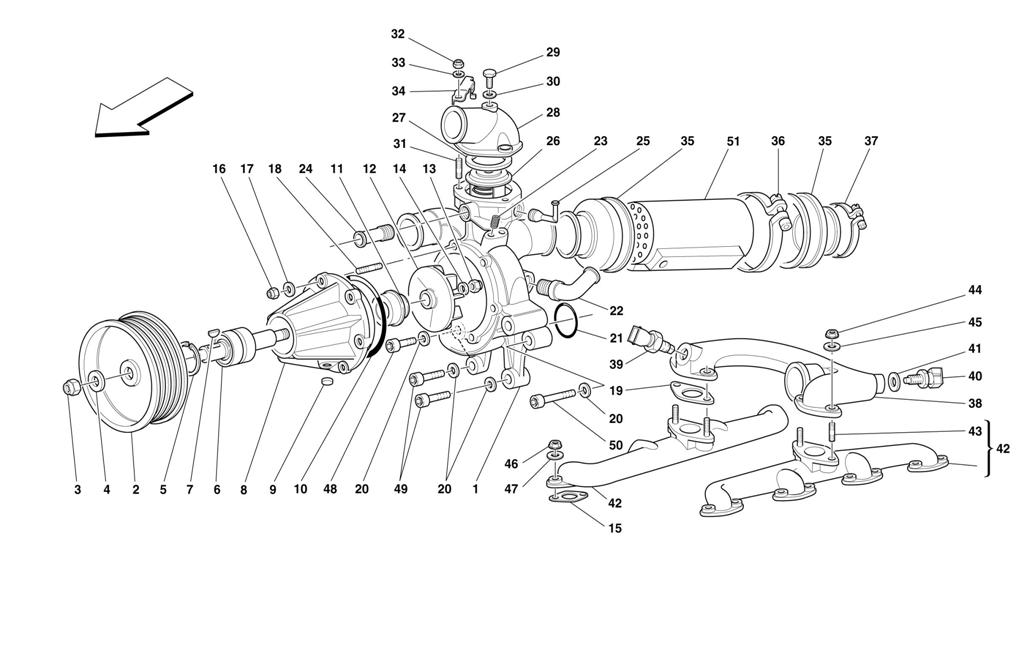

WATER PUMP AND OIL/WATER HEAT EXCHANGER

Go to Split View

WATER PUMP AND OIL/WATER HEAT EXCHANGER

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 158001 *Qty: 1 WATER PUMP BODY -Valid till engine Nr. 37561 -Not as spare part -Replace with 163875 + proper fi Call
Location: 1 Prev | Next Part: 177561 *Qty: 1 WATER PUMP (NO PULLEY) -Valid from engine Nr. 37562 $700.00
Location: 2 Prev | Next Part: 158014 *Qty: 1 WATER PUMP CONTROL PULLEY -Valid for steering box with power steering cars $297.18
Location: 2 Prev | Next Part: 159584 *Qty: 1 WATER PUMP CONTROL PULLEY -Valid for mechanical steering box cars $297.85
Location: 3 Prev | Next Part: 102742 *Qty: 1 NUT $0.90
Location: 4 Prev | Next Part: 12646821 *Qty: 1 WASHER $0.90
Location: 5 Prev | Next Part: 11059976 *Qty: 1 SEEGER RING $1.34
Location: 6 Prev | Next Part: 143742 *Qty: 1 BEARING COMPLETE WITH SHAFT $301.01
Location: 7 Prev | Next Part: 10202320 *Qty: 1 DISC KEY $1.39
Location: 8 Prev | Next Part: 176173 *Qty: 1 WATER PUMP COVER $518.66
Location: 9 Prev | Next Part: 10158801 *Qty: 1 PLUG $1.79
Location: 10 Prev | Next Part: 137868 *Qty: 1 O.R. GASKET $17.64
Location: 11 Prev | Next Part: 183759 *Qty: 1 FRONT SEAL RING $38.63
Location: 12 Prev | Next Part: 154542 *Qty: 1 WATER PUMP IMPELLER $124.26
Location: 13 Prev | Next Part: 100436 *Qty: 1 NUT $12.89
Location: 14 Prev | Next Part: 11194079 *Qty: 1 WASHER Call
Location: 15 Prev | Next Part: 141332 *Qty: 8 GASKET $1.48
Location: 16 Prev | Next Part: 102741 *Qty: 6 NUT $0.90
Location: 17 Prev | Next Part: 12601274 *Qty: 6 WASHER $0.90
Location: 18 Prev | Next Part: 13540924 *Qty: 6 STUD Call
Location: 19 Prev | Next Part: 152362 *Qty: 2 GASKET $1.60
Location: 20 Prev | Next Part: 12601374 *Qty: 4 WASHER $0.90
Location: 21 Prev | Next Part: 101044 *Qty: 1 O.R. GASKET $5.00
Location: 22 Prev | Next Part: 122844 *Qty: 1 UNION Call
Location: 23 Prev | Next Part: 13525570 *Qty: 2 THREADED INSERT $3.27
Location: 24 Prev | Next Part: 106227 *Qty: 1 UNION $8.13
Location: 25 Prev | Next Part: 157400 *Qty: 1 UNION $57.78
Location: 26 Prev | Next Part: 165473 *Qty: 1 THERMOSTAT -Valid after stock exhaustion of 130346 $165.00
Location: 27 Prev | Next Part: 105192 *Qty: 1 GASKET $20.77
Location: 28 Prev | Next Part: 136571 *Qty: 1 THERMOSTATIC VALVE COVER $213.61
Location: 29 Prev | Next Part: 132349 *Qty: 1 UNION Call
Location: 30 Prev | Next Part: 10297760 *Qty: 1 GASKET $0.90
Location: 31 Prev | Next Part: 13541024 *Qty: 3 STUD $0.90
Location: 32 Prev | Next Part: 102741 *Qty: 3 NUT $0.90
Location: 33 Prev | Next Part: 12601274 *Qty: 3 WASHER $0.90
Location: 34 Prev | Next Part: 163856 *Qty: 1 BRACKET Call
Location: 35 Prev | Next Part: 145015 *Qty: 2 SLEEVE Call
Location: 36 Prev | Next Part: 153430 *Qty: 2 CLAMP - D. 85 mm.- Superseded
Location: 37 Prev | Next Part: 153429 *Qty: 2 CLAMP - D. 50 mm.- $10.46
Location: 38 Prev | Next Part: 154445 *Qty: 1 WATER OUTLET MANIFOLD CONNECTION DUCT $232.79
Location: 39 Prev | Next Part: 148677 *Qty: 1 WATER TEMPERATURE TRANSMITTER $193.93
Location: 40 Prev | Next Part: 125769 *Qty: 2 WATER TEMPERATURE SENSOR $31.55
Location: 41 Prev | Next Part: 10298460 *Qty: 2 GASKET $0.90
Location: 42 Prev | Next Part: 154450 *Qty: 2 COMPLETE WATER OUTLET MANIFOLD $1,059.52
Location: 43 Prev | Next Part: 13516724 *Qty: 4 STUD Call
Location: 44 Prev | Next Part: 150978 *Qty: 4 NUT $15.55
Location: 45 Prev | Next Part: 12601374 *Qty: 4 WASHER $0.90
Location: 46 Prev | Next Part: 132877 *Qty: 16 NUT $3.78
Location: 47 Prev | Next Part: 12604274 *Qty: 16 WASHER $0.90
Location: 48 Prev | Next Part: 14306424 *Qty: 1 SCREW - L. 25 mm.- $0.90
Location: 49 Prev | Next Part: 14306424 *Qty: 2 SCREW - L. 25 mm.- -Valid for water pump body 158001 $0.90
Location: 49 Prev | Next Part: 14306624 *Qty: 2 SCREW - L. 35 mm.- -Valid for water pump body 163875 $0.90
Location: 50 Prev | Next Part: 14306624 *Qty: 1 SCREW - L. 35 mm.- -Valid for water pump body 158001 $0.90
Location: 50 Prev | Next Part: 14306824 *Qty: 1 SCREW - L. 45 mm.- -Valid for water pump body 163875 $0.90
Location: 51 Prev | Next Part: 180846 *Qty: 1 WATER-OIL HEAT EXCHANGER $821.83

* Quantity shown indicates the number of pieces used in the diagram.
