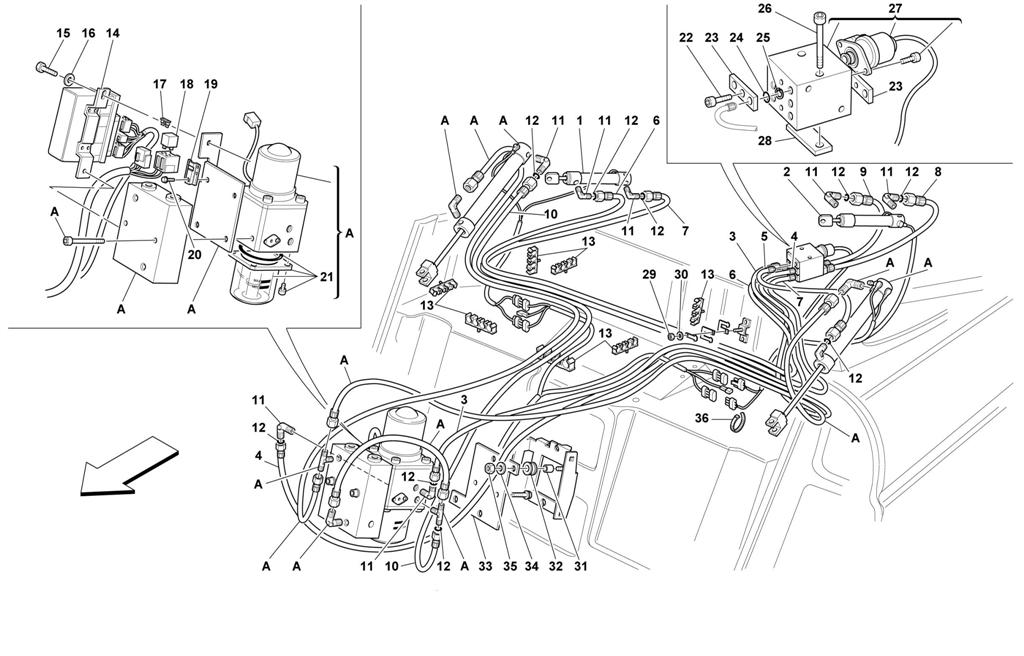

TOP HYDRAULIC CONTROL -VALID FOR SPIDER-

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 64967100 *Qty: 0 Description not available Call
Location: - Prev | Next Part: 64418200 *Qty: 1 COMPLETE HYDRAULIC CIRCUIT $4,316.41
Location: 1 Prev | Next Part: 64967200 *Qty: 1 R.H. SECONDARY CYLINDER $2,440.11
Location: 2 Prev | Next Part: 65699800 *Qty: 1 L.H. SECONDARY CYLINDER $2,392.23
Location: 3 Prev | Next Part: 168857 *Qty: 1 (L) PIPE FROM VALVE TO PUMP $202.20
Location: 4 Prev | Next Part: 168858 *Qty: 1 (N) PIPE FROM VALVE TO PUMP $552.96
Location: 5 Prev | Next Part: 168859 *Qty: 1 (K) PIPE FROM VALVE TO L.H. MAIN CYLINDER Call
Location: 6 Prev | Next Part: 168860 *Qty: 1 (O) PIPE FROM VALVE TO R.H. SECONDARY CYLINDER $228.27
Location: 7 Prev | Next Part: 168861 *Qty: 1 (P) PIPE FROM VALVE TO R.H. SECONDARY CYLINDER Call
Location: 8 Prev | Next Part: 168862 *Qty: 1 (R) PIPE FROM VALVE TO L.H. SECONDARY CYLINDER $281.22
Location: 9 Prev | Next Part: 168863 *Qty: 1 (S) PIPE FROM VALVE TO L.H. SECONDARY CYLINDER $154.07
Location: 10 Prev | Next Part: 168864 *Qty: 1 (V) PIPE FROM PUMP TO R.H. MAIN CYLINDER $184.35
Location: 11 Prev | Next Part: 168865 *Qty: 0 UNION $43.48
Location: 12 Prev | Next Part: 168866 *Qty: 0 O.R. GASKET FOR UNION $19.56
Location: 13 Prev | Next Part: 141699 *Qty: 8 CLIP $1.26
Location: 14 Prev | Next Part: 64660200 *Qty: 1 ELECTRONIC CONTROL STATION Call
Location: 15 Prev | Next Part: 13833224 *Qty: 2 CONTROL STATION FIXING SCREW -Valid after stock exhaustion of 13833271 $0.90
Location: 15 Prev | Next Part: 13833271 *Qty: 2 CONTROL STATION FIXING SCREW -Valid till stock exhaustion $0.90
Location: 16 Prev | Next Part: 14496324 *Qty: 2 WASHER $4.15
Location: 17 Prev | Next Part: 131941 *Qty: 1 30 A. FUSE -Green -For top movement engine Call
Location: 17 Prev | Next Part: 125242 *Qty: 1 15 A. FUSE -Blue -For top control station $0.90
Location: 18 Prev | Next Part: 157992 *Qty: 2 RELAY $41.32
Location: 19 Prev | Next Part: 155184 *Qty: 2 BRACKET $15.39
Location: 20 Prev | Next Part: 13835814 *Qty: 2 BLOCKS FIXING SCREW $4.43
Location: 21 Prev | Next Part: 168881 *Qty: 1 CUP COMPLETE KIT $110.00
Location: 22 Prev | Next Part: 168884 *Qty: 4 SMALL PLATE FIXING SCREW $2.80
Location: 23 Prev | Next Part: 168885 *Qty: 4 SMALL PLATE $88.89
Location: 24 Prev | Next Part: 168886 *Qty: 7 O.R. GASKET $2.80
Location: 25 Prev | Next Part: 168887 *Qty: 7 SEEGER $2.80
Location: 26 Prev | Next Part: 14359021 *Qty: 2 SOLENOID VALVE FIXING SCREW $0.90
Location: 27 Prev | Next Part: 168888 *Qty: 1 COMPLETE SOLENOID VALVE $5,791.60
Location: 28 Prev | Next Part: 64662600 *Qty: 1 SOLENOID VALVE FIXING SMALL PLATE $72.42
Location: 29 Prev | Next Part: 10794011 *Qty: 2 NUT $0.90
Location: 30 Prev | Next Part: 14496201 *Qty: 2 WASHER $0.90
Location: 31 Prev | Next Part: 168889 *Qty: 2 SPACER Call
Location: 32 Prev | Next Part: 168890 *Qty: 2 RUBBER BUSHING $19.85
Location: 33 Prev | Next Part: 168891 *Qty: 1 PUMP FIXING PLATE $98.10
Location: 34 Prev | Next Part: 14496424 *Qty: 2 WASHER Superseded
Location: 35 Prev | Next Part: 104030 *Qty: 2 NUT $0.90
Location: 36 Prev | Next Part: 110381 *Qty: 6 CLAMP $0.90

* Quantity shown indicates the number of pieces used in the diagram.
