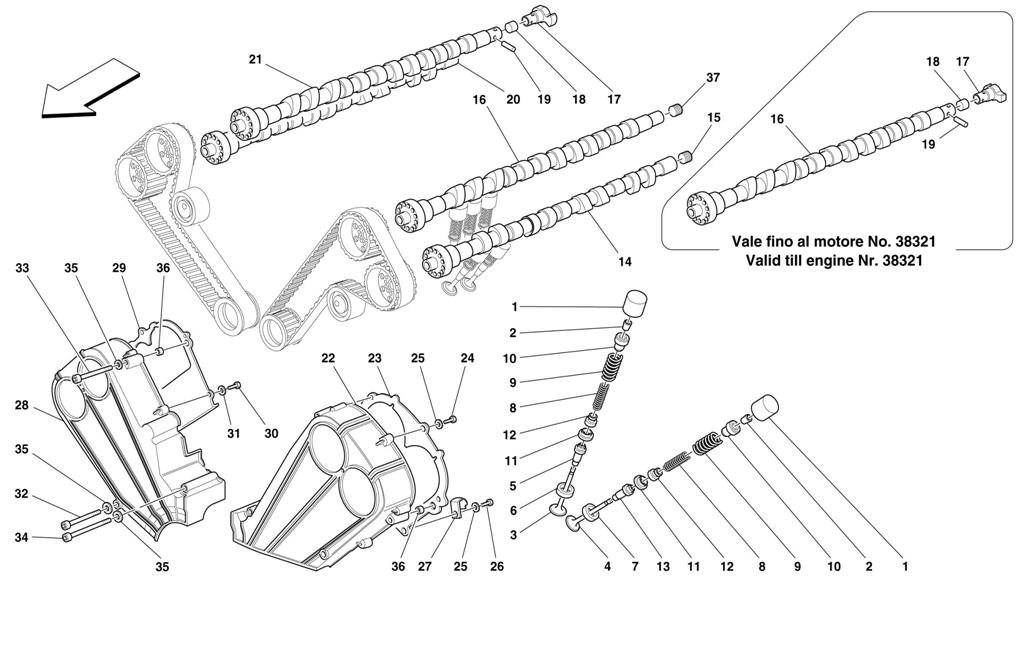

TIMING - TAPPETS AND SHIELDS

Go to Split View

TIMING - TAPPETS AND SHIELDS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 195017 *Qty: 40 TAPPET FOR VALVE CONTROL Call
Location: 2 Prev | Next Part: 157986 *Qty: 80 COTTER FOR VALVE SPRING CUP $2.74
Location: 3 Prev | Next Part: 160921R *Qty: 24 INTAKE VALVE Call
Location: 4 Prev | Next Part: 157988R *Qty: 16 EXHAUST VALVE Call
Location: 5 Prev | Next Part: 176437R *Qty: 24 INTAKE VALVE GUIDE Call
Location: 5 Prev | Next Part: 149901 *Qty: 24 INTAKE VALVE GUIDE -OVERSIZED Superseded
Location: 6 Prev | Next Part: 148234 *Qty: 24 INTAKE VALVE SEAT $17.85
Location: 7 Prev | Next Part: 140702 *Qty: 16 EXHAUST VALVE SEAT $51.44
Location: 8 Prev | Next Part: 149889 *Qty: 40 INNER SPRING FOR VALVE RETURN Call
Location: 9 Prev | Next Part: 149888 *Qty: 40 OUTER SPRING FOR VALVE RETURN $5.62
Location: 10 Prev | Next Part: 157989 *Qty: 40 UPPER CUP $8.52
Location: 11 Prev | Next Part: 172466 *Qty: 40 LOWER CUP $47.78
Location: 12 Prev | Next Part: 148153R *Qty: 40 OIL RING FOR VALVE GUIDE Call
Location: 13 Prev | Next Part: 176438R *Qty: 16 EXHAUST VALVE GUIDE Call
Location: 13 Prev | Next Part: 148191 *Qty: 16 EXHAUST VALVE GUIDE -OVERSIZED Call
Location: 14 Prev | Next Part: 149093 *Qty: 1 COMPLETE L.H. EXHAUST CAM SHAFT $1,761.88
Location: 15 Prev | Next Part: 10269550 *Qty: 2 THREADED PLUG $0.90
Location: 16 Prev | Next Part: 166660 *Qty: 1 COMPLETE L.H. INDUCTION DISTRIBUTION SHAFT -Valid after stock exhaustion of 162408 $1,755.00
Location: 16 Prev | Next Part: 158034 *Qty: 1 COMPLETE L.H. INDUCTION DISTRIBUTION SHAFT -Valid till engine Nr. 38321 $4,653.92
Location: 17 Prev | Next Part: 162759 *Qty: 1 R.H. COUPLING ON THE CAM SHAFT -Valid from engine Nr. 38322 $157.72
Location: 17 Prev | Next Part: 151194 *Qty: 2 COUPLING ON THE CAM SHAFT -Valid till engine Nr. 38321 Call
Location: 18 Prev | Next Part: 10158501 *Qty: 1 PLUG -Till engine Nr. 38321 q.ty 2 $1.81
Location: 19 Prev | Next Part: 149859 *Qty: 2 DOWEL BOLT -Till engine Nr. 38321 q.ty 4 $2.77
Location: 20 Prev | Next Part: 149376 *Qty: 1 COMPLETE R.H. EXHAUST CAM SHAFT $1,755.00
Location: 21 Prev | Next Part: 166661 *Qty: 1 COMPLETE R.H. INDUCTION DISTRIBUTION SHAFT -Valid after stock exhaustion of 163808 $2,039.81
Location: 21 Prev | Next Part: 158035 *Qty: 1 COMPLETE R.H. INDUCTION DISTRIBUTION SHAFT -Valid till engine Nr. 38321 $1,609.75
Location: 22 Prev | Next Part: 163876 *Qty: 1 L.H. GUARD -Valid for 5 fixing points L.H. Protection $89.35
Location: 22 Prev | Next Part: 158007 *Qty: 1 L.H. GUARD -Valid for 3 fixing points L.H. Protection -Valid till stock exhaustion -Replace with Call
Location: 23 Prev | Next Part: 158055 *Qty: 1 L.H. PROTECTION -Valid for L.H. Guard 158007 $47.86
Location: 23 Prev | Next Part: 163848 *Qty: 1 L.H. PROTECTION -Valid for L.H. Guard 163876 $52.32
Location: 24 Prev | Next Part: 10977724 *Qty: 4 SCREW -For L.H. Guard 158007 q.ty 2 $0.90
Location: 25 Prev | Next Part: 12601174 *Qty: 5 WASHER -For L.H. Guard 158007 q.ty 3 $0.90
Location: 26 Prev | Next Part: 10977824 *Qty: 1 SCREW $0.90
Location: 27 Prev | Next Part: 159521 *Qty: 1 CLIP $2.33
Location: 28 Prev | Next Part: 163877 *Qty: 1 R.H. GUARD -Valid for 5 fixing points R.H. Protection $198.58
Location: 28 Prev | Next Part: 157895 *Qty: 1 R.H. GUARD -Valid for 3 fixing points R.H. Protection -Valid till stock exhaustion -Replace with Call
Location: 29 Prev | Next Part: 158054 *Qty: 1 R.H. PROTECTION -Valid for R.H. Guard 157895 $47.86
Location: 29 Prev | Next Part: 163849 *Qty: 1 R.H. PROTECTION -Valid for R.H. Guard 163877 $51.21
Location: 30 Prev | Next Part: 10977724 *Qty: 5 SCREW -For R.H. Guard 157895 q.ty 3 $0.90
Location: 31 Prev | Next Part: 12601174 *Qty: 5 WASHER -For R.H. Guard 157895 q.ty 3 $0.90
Location: 32 Prev | Next Part: 156829 *Qty: 2 SCREW $1.26
Location: 33 Prev | Next Part: 156830 *Qty: 4 SCREW $1.17
Location: 34 Prev | Next Part: 156839 *Qty: 2 SCREW $16.16
Location: 35 Prev | Next Part: 12604274 *Qty: 8 WASHER $0.90
Location: 36 Prev | Next Part: 104339 *Qty: 4 SPACER $5.62
Location: 37 Prev | Next Part: 10269550 *Qty: 1 THREADED PLUG -Valid from engine Nr. 38322 $0.90

* Quantity shown indicates the number of pieces used in the diagram.
