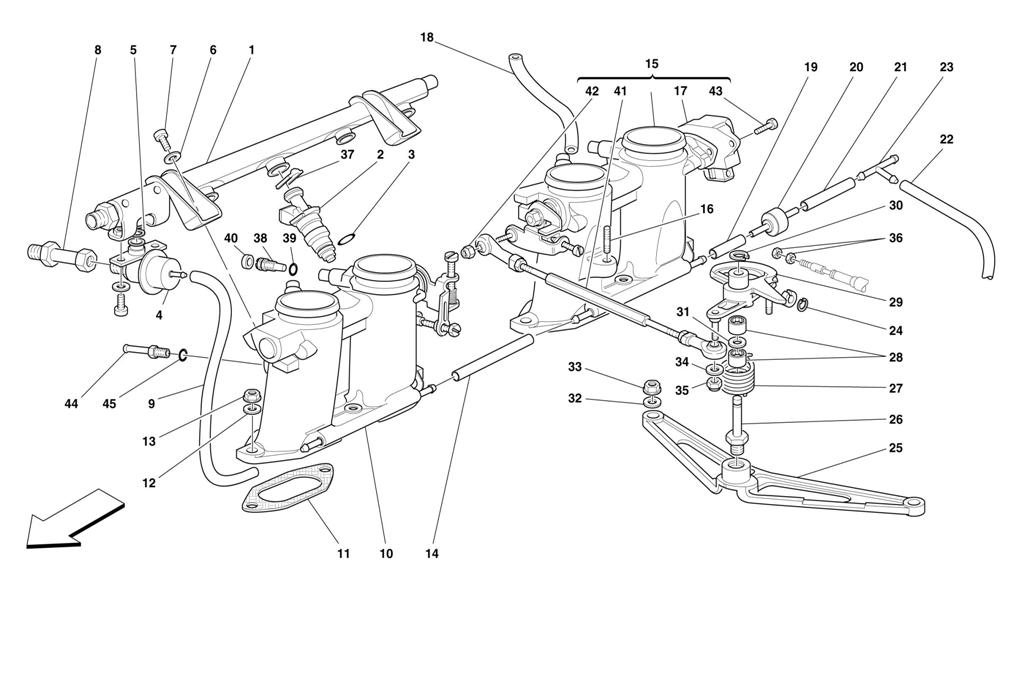

THROTTLE HOLDERS AND CONTROLS

Go to Split View

THROTTLE HOLDERS AND CONTROLS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 171796 *Qty: 1 R.H. TUBE FOR INJECTORS -Valid from engine Nr.42569 $876.11
Location: 1 Prev | Next Part: 171797 *Qty: 1 L.H. TUBE FOR INJECTORS -Valid from engine Nr.42569 Call
Location: 1 Prev | Next Part: 172560 *Qty: 1 L.H. TUBE FOR INJECTORS -For F355 not as spare part -Till engine Nr.42568 replace with 171797 $1,968.36
Location: 1 Prev | Next Part: 172559 *Qty: 1 R.H. TUBE FOR INJECTORS -For F355 not as spare part -Till engine Nr.42568 replace with 171796 $2,007.73
Location: 2 Prev | Next Part: 149316 *Qty: 8 ELECTRO-INJECTOR Call
Location: 3 Prev | Next Part: 133902 *Qty: 8 O.R. GASKET $8.47
Location: 4 Prev | Next Part: 167321 *Qty: 2 PRESSURE REGULATOR -Valid after stock exhaustion of 148254 Call
Location: 5 Prev | Next Part: 152211 *Qty: 2 SEAL RING $8.29
Location: 6 Prev | Next Part: 12601374 *Qty: 4 WASHER $0.90
Location: 7 Prev | Next Part: 14306224 *Qty: 4 SCREW $0.90
Location: 8 Prev | Next Part: 177787 *Qty: 1 R.H. EXTENSION -Valid for cars with double fuel pump -Valid after stock exhaustion of 160522 $186.21
Location: 8 Prev | Next Part: 178592 *Qty: 1 L.H. FLEXIBLE EXTENSION -Valid for cars with double fuel pump $386.36
Location: 9 Prev | Next Part: 159539 *Qty: 2 PIPE TO MANIFOLD $4.80
Location: 10 Prev | Next Part: 150526 *Qty: 1 R.H. FRONT SUCTION MANIFOLD $2,411.51
Location: 10 Prev | Next Part: 150527 *Qty: 1 L.H. FRONT SUCTION MANIFOLD Call
Location: 11 Prev | Next Part: 152055 *Qty: 8 GASKET $2.81
Location: 12 Prev | Next Part: 12601374 *Qty: 16 WASHER $0.90
Location: 13 Prev | Next Part: 150978 *Qty: 16 NUT $15.55
Location: 14 Prev | Next Part: 159540 *Qty: 2 PIPE $1.20
Location: 15 Prev | Next Part: 150528 *Qty: 1 COMPLETE R.H. REAR SUCTION MANIFOLD Call
Location: 15 Prev | Next Part: 150529 *Qty: 1 COMPLETE L.H. REAR SUCTION MANIFOLD $2,251.98
Location: 16 Prev | Next Part: 13516824 *Qty: 2 STUD $8.85
Location: 17 Prev | Next Part: 158170 *Qty: 2 POTENTIOMETER FOR THROTTLE VALVE $437.19
Location: 18 Prev | Next Part: 114877 *Qty: 8 PIPE TO LOWER SUCTION COVER -Valid after stock exhaustion of 159538 $8.53
Location: 19 Prev | Next Part: 159541 *Qty: 2 PIPE TO NON-RETURN VALVE $2.54
Location: 20 Prev | Next Part: 62507200 *Qty: 2 NON-RETURN VALVE $27.23
Location: 21 Prev | Next Part: 159541 *Qty: 1 PIPE TO 3-WAY UNION $2.54
Location: 22 Prev | Next Part: 159542 *Qty: 1 PIPE TO 3-WAY UNION $2.85
Location: 23 Prev | Next Part: 121793 *Qty: 1 3-WAY UNION $0.90
Location: 24 Prev | Next Part: 11087974 *Qty: 1 FLEXIBLE RING $0.90
Location: 25 Prev | Next Part: 157171 *Qty: 1 SUPPORT $56.64
Location: 26 Prev | Next Part: 160462 *Qty: 1 PIN $40.47
Location: 27 Prev | Next Part: 160535 *Qty: 1 SPRING $7.93
Location: 28 Prev | Next Part: 132873 *Qty: 2 BEARING $5.65
Location: 29 Prev | Next Part: 161826 *Qty: 1 ACCELERATOR CONTROL TRANSMISSION LEVER $1,053.40
Location: 30 Prev | Next Part: 11065676 *Qty: 1 SEEGER RING $0.90
Location: 31 Prev | Next Part: 136880 *Qty: 1 SPACER $31.40
Location: 32 Prev | Next Part: 12601374 *Qty: 2 WASHER $0.90
Location: 33 Prev | Next Part: 101139 *Qty: 2 NUT $0.90
Location: 34 Prev | Next Part: 14497801 *Qty: 2 WASHER $2.41
Location: 35 Prev | Next Part: 113647 *Qty: 2 NUT $0.90
Location: 36 Prev | Next Part: 10725011 *Qty: 2 NUT $2.15
Location: 37 Prev | Next Part: 144763 *Qty: 8 INJECTORS RETAINING CLIP $3.58
Location: 38 Prev | Next Part: 162700 *Qty: 8 BY-PASS SCREW $5.06
Location: 39 Prev | Next Part: 166485 *Qty: 8 GASKET $0.90
Location: 40 Prev | Next Part: 166486 *Qty: 8 SAFETY PLUG $0.90
Location: 41 Prev | Next Part: 166488 *Qty: 2 COMPLETE TIE ROD $1,053.72
Location: 42 Prev | Next Part: 166506 *Qty: 2 TIE ROD FIXING NUT Call
Location: 43 Prev | Next Part: 162722 *Qty: 4 POTENTIOMETER FIXING SCREW $0.90
Location: 44 Prev | Next Part: 168100 *Qty: 8 UNION $61.58
Location: 45 Prev | Next Part: 168105 *Qty: 8 O.R. GASKET $1.22

* Quantity shown indicates the number of pieces used in the diagram.
