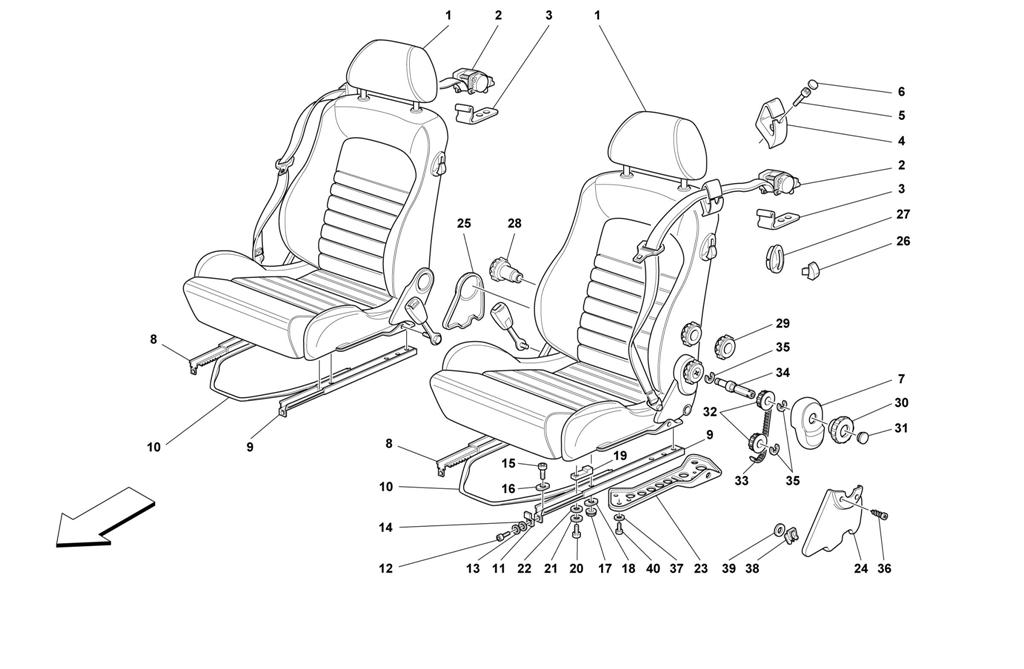

SEATS AND SAFETY BELTS -COMFORT-NOT FOR SPIDER-

Go to Split View

SEATS AND SAFETY BELTS -COMFORT-NOT FOR SPIDER-

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 643195.. *Qty: 1 COMPLETE L.H. SEAT -Not for GD Call
Location: - Prev | Next Part: 643403.. *Qty: 2 CUSHION CENTRAL LINING Call
Location: - Prev | Next Part: 643405.. *Qty: 2 CUSHION R.H. LATERAL LINING Call
Location: - Prev | Next Part: 643407.. *Qty: 2 CUSHION L.H. LATERAL LINING Call
Location: - Prev | Next Part: 643409.. *Qty: 2 CALF-REST LINING Call
Location: - Prev | Next Part: 644284.. *Qty: 1 COMPLETE R.H. SEAT -Valid for GD Call
Location: - Prev | Next Part: 644285.. *Qty: 1 COMPLETE L.H. SEAT -Valid for GD Call
Location: - Prev | Next Part: 644289.. *Qty: 1 R.H. SEAT BACK PERIPHERAL LINING -Valid for GD Call
Location: - Prev | Next Part: 644293.. *Qty: 1 L.H. SEAT BACK PERIPHERAL LINING -Valid for GD Call
Location: - Prev | Next Part: 643455.. *Qty: 1 R.H. SEAT BACK PERIPHERAL LINING -Not for GD Call
Location: - Prev | Next Part: 643397.. *Qty: 1 L.H. SEAT BACK PERIPHERAL LINING -Not for GD Call
Location: - Prev | Next Part: 643456.. *Qty: 1 R.H. SEAT BACK CENTRAL Call
Location: - Prev | Next Part: 643398.. *Qty: 1 L.H. SEAT BACK CENTRAL Call
Location: - Prev | Next Part: 643400.. *Qty: 2 SEAT BACK CENTRAL LINING Call
Location: - Prev | Next Part: 643194.. *Qty: 1 COMPLETE R.H. SEAT -Not for GD Call
Location: - Prev | Next Part: 643401.. *Qty: 2 CUSHION CENTRAL Call
Location: 1 Prev | Next Part: 643410.. *Qty: 2 UPHOLSTERED HEAD-REST Call
Location: 1 Prev | Next Part: 643413.. *Qty: 2 HEAD REST UPHOLSTERY Call
Location: 2 Prev | Next Part: 64928200 *Qty: 1 SAFETY BELTS ASSEMBLY -Valid for USA and CDN from Ass. Nr.20566 $658.49
Location: 2 Prev | Next Part: 64387700 *Qty: 1 SAFETY BELTS ASSEMBLY -Not for USA, CDN, SA and J -Valid till stock exhaustion Call
Location: 2 Prev | Next Part: 64476300 *Qty: 1 SAFETY BELTS ASSEMBLY -Valid for SA and J -Valid for USA and CDN till Ass. Nr.20565 $658.49
Location: 2 Prev | Next Part: 64678500 *Qty: 1 SAFETY BELTS ASSEMBLY -Not for USA, CDN, SA and J -Valid after stock exhaustion of 64387700 Call
Location: 3 Prev | Next Part: 63377800 *Qty: 2 BELT TIGHTENING BRACKET Call
Location: 4 Prev | Next Part: 64331600 *Qty: 2 COMPLETE BELT-SLIDING $9.80
Location: 5 Prev | Next Part: 64348200 *Qty: 2 SCREW $0.90
Location: 6 Prev | Next Part: 64341400 *Qty: 1 PLUG FOR SCREW $1.02
Location: 7 Prev | Next Part: 643417.. *Qty: 1 L.H. TRANSMISSION COVER Call
Location: 7 Prev | Next Part: 643458.. *Qty: 1 R.H. TRANSMISSION COVER Call
Location: 8 Prev | Next Part: 64339300 *Qty: 2 R.H. GUIDE $381.33
Location: 9 Prev | Next Part: 64339400 *Qty: 2 L.H. GUIDE $381.33
Location: 10 Prev | Next Part: 64339500 *Qty: 2 GUIDE CONTROL FORK $38.37
Location: 11 Prev | Next Part: 62844500 *Qty: 4 SMALL PLATE $37.07
Location: 12 Prev | Next Part: 40294308 *Qty: 4 SCREW $5.17
Location: 13 Prev | Next Part: 12601374 *Qty: 4 WASHER $0.90
Location: 14 Prev | Next Part: 14496506 *Qty: 4 WASHER $0.90
Location: 15 Prev | Next Part: 40294308 *Qty: 4 SCREW $5.17
Location: 16 Prev | Next Part: 63395300 *Qty: 4 ELASTIC PLATE Call
Location: 17 Prev | Next Part: 133215 *Qty: 8 NUT -Replaces 64342800 $3.75
Location: 18 Prev | Next Part: 63395300 *Qty: 8 ELASTIC PLATE Call
Location: 19 Prev | Next Part: 63698000 *Qty: 4 STOP BRACKET $23.61
Location: 20 Prev | Next Part: 10902024 *Qty: 4 SCREW $0.90
Location: 21 Prev | Next Part: 160957 *Qty: 4 WASHER $0.90
Location: 22 Prev | Next Part: 12644424 *Qty: 4 WASHER $0.90
Location: 23 Prev | Next Part: 64331400 *Qty: 2 L.H. ADAPTER $26.38
Location: 23 Prev | Next Part: 64331500 *Qty: 2 R.H. ADAPTER $26.38
Location: 24 Prev | Next Part: 643462.. *Qty: 1 R.H. SEAT OUTER JOINT COVER Call
Location: 24 Prev | Next Part: 643420.. *Qty: 1 L.H. SEAT OUTER JOINT COVER Call
Location: 25 Prev | Next Part: 643423.. *Qty: 1 L.H. SEAT INNER JOINT COVER Call
Location: 25 Prev | Next Part: 643460.. *Qty: 1 R.H. SEAT INNER JOINT COVER Call
Location: 26 Prev | Next Part: 64341600 *Qty: 2 SEAT RELEASE LEVER $2.32
Location: 27 Prev | Next Part: 64341500 *Qty: 2 FRAME FOR LEVER $2.95
Location: 28 Prev | Next Part: 64331000 *Qty: 1 LUMBAR ADJUSTMENT KNOB $3.62
Location: 29 Prev | Next Part: 64330900 *Qty: 1 SIDES ADJUSTMENT KNOB $3.29
Location: 30 Prev | Next Part: 64331300 *Qty: 2 SEAT BACK ADJUSTMENT KNOB $6.35
Location: 31 Prev | Next Part: 64330800 *Qty: 1 PLUG FOR KNOB $1.97
Location: 32 Prev | Next Part: 64330700 *Qty: 4 ARTICULATED JOINT CONTROL PULLEY $22.02
Location: 33 Prev | Next Part: 64796000 *Qty: 2 PULLEYS CONNECTING BELT $49.36
Location: 34 Prev | Next Part: 64795500 *Qty: 2 PIN $13.50
Location: 35 Prev | Next Part: 64795600 *Qty: 6 SEEGER RING Call
Location: 36 Prev | Next Part: 64428200 *Qty: 4 SCREW $0.90
Location: 37 Prev | Next Part: 64428300 *Qty: 12 WASHER $0.90
Location: 38 Prev | Next Part: 64795700 *Qty: 4 CLIP $2.38
Location: 39 Prev | Next Part: 64795800 *Qty: 4 WASHER Call
Location: 40 Prev | Next Part: 64348400 *Qty: 12 SCREW $0.90

* Quantity shown indicates the number of pieces used in the diagram.
