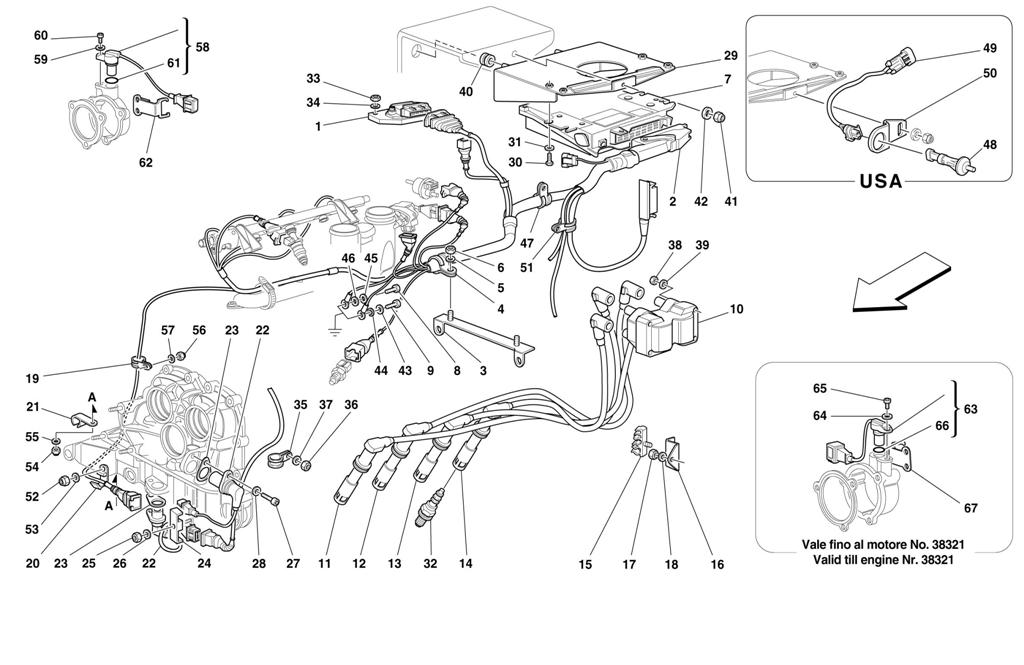

INJECTION DEVICE - IGNITION

Go to Split View

INJECTION DEVICE - IGNITION

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 137511 *Qty: 2 POWER MODULE Call
Location: 2 Prev | Next Part: 162623 *Qty: 1 L.H. SIDE ENGINE CONNECTING CABLE -Valid for USA, CDN and CH -Valid from engine Nr. 38322 $2,226.15
Location: 2 Prev | Next Part: 162998 *Qty: 1 R.H. SIDE ENGINE CONNECTING CABLE -Valid for USA, CDN and CH -Valid till engine Nr. 38321 $2,226.15
Location: 2 Prev | Next Part: 162999 *Qty: 1 L.H. SIDE ENGINE CONNECTING CABLE -Valid for USA, CDN and CH -Valid till engine Nr. 38321 $2,226.15
Location: 2 Prev | Next Part: 163859 *Qty: 1 R.H. SIDE ENGINE CONNECTING CABLE -Not for USA, CDN and CH -Valid from engine Nr. 38322 Call
Location: 2 Prev | Next Part: 163860 *Qty: 1 L.H. SIDE ENGINE CONNECTING CABLE -Not for USA, CDN and CH -Valid from engine Nr. 38322 Call
Location: 2 Prev | Next Part: 162358 *Qty: 1 R.H. SIDE ENGINE CONNECTING CABLE -Not for USA, CDN and CH -Valid till engine Nr. 38321 $2,226.15
Location: 2 Prev | Next Part: 162359 *Qty: 1 L.H. SIDE ENGINE CONNECTING CABLE -Not for USA, CDN and CH -Valid till engine Nr. 38321 $2,226.15
Location: 2 Prev | Next Part: 162622 *Qty: 1 R.H. SIDE ENGINE CONNECTING CABLE -Valid for USA, CDN and CH -Valid from engine Nr. 38322 $2,226.15
Location: 3 Prev | Next Part: 159185 *Qty: 1 BRACKET $123.05
Location: 4 Prev | Next Part: 10441890 *Qty: 2 BRACKET WITH SHEATH $0.90
Location: 5 Prev | Next Part: 10519424 *Qty: 2 WASHER Call
Location: 6 Prev | Next Part: 102948 *Qty: 2 NUT $0.90
Location: 7 Prev | Next Part: 164921 *Qty: 2 ELECTRONIC CONTROL STATION -Valid after stock exhaustion of 152213 $3,274.76
Location: 8 Prev | Next Part: 10902024 *Qty: 2 SCREW $0.90
Location: 9 Prev | Next Part: 10977624 *Qty: 2 SCREW $0.90
Location: 10 Prev | Next Part: 138255D *Qty: 2 COIL DECAL $5.00
Location: 10 Prev | Next Part: 138255 *Qty: 2 IGNITION COIL ASSEMBLY $224.81
Location: 11 Prev | Next Part: 156483 *Qty: 1 CABLE (FOR SPARK PLUG 8) $219.23
Location: 11 Prev | Next Part: 156476 *Qty: 1 CABLE (FOR SPARK PLUG 1) $218.99
Location: 12 Prev | Next Part: 156477 *Qty: 1 CABLE (FOR SPARK PLUG 2) $217.98
Location: 12 Prev | Next Part: 156482 *Qty: 1 CABLE (FOR SPARK PLUG 7) $217.08
Location: 13 Prev | Next Part: 156478 *Qty: 1 CABLE (FOR SPARK PLUG 3) $213.67
Location: 13 Prev | Next Part: 156481 *Qty: 1 CABLE (FOR SPARK PLUG 6) $214.10
Location: 14 Prev | Next Part: 156479 *Qty: 1 CABLE (FOR SPARK PLUG 4) $212.05
Location: 14 Prev | Next Part: 156480 *Qty: 1 CABLE (FOR SPARK PLUG 5) $212.07
Location: 15 Prev | Next Part: 119402 *Qty: 2 CLIP $2.28
Location: 16 Prev | Next Part: 162475 *Qty: 2 CLIP FIXING BRACKET $7.78
Location: 17 Prev | Next Part: 102948 *Qty: 2 NUT $0.90
Location: 18 Prev | Next Part: 10519424 *Qty: 2 WASHER Call
Location: 19 Prev | Next Part: 10441790 *Qty: 1 BRACKET WITH SHEATH $0.94
Location: 20 Prev | Next Part: 129544 *Qty: 1 CLIP $2.31
Location: 21 Prev | Next Part: 143121 *Qty: 1 CLIP $0.90
Location: 22 Prev | Next Part: 162916 *Qty: 2 ANGOLAR SPEED SENSOR Call
Location: 23 Prev | Next Part: 140621 *Qty: 2 THICKNESS $43.75
Location: 24 Prev | Next Part: 139244 *Qty: 1 SUPPORT $255.41
Location: 25 Prev | Next Part: 15896470 *Qty: 1 NUT $0.90
Location: 26 Prev | Next Part: 11199274 *Qty: 1 WASHER $0.90
Location: 27 Prev | Next Part: 14305724 *Qty: 2 SCREW $0.90
Location: 28 Prev | Next Part: 12601274 *Qty: 2 WASHER $0.90
Location: 29 Prev | Next Part: 158334 *Qty: 2 CONTROL UNIT FIXING BRACKET $68.68
Location: 30 Prev | Next Part: 10902011 *Qty: 8 SCREW $8.96
Location: 31 Prev | Next Part: 10519424 *Qty: 8 WASHER Call
Location: 32 Prev | Next Part: 171626 *Qty: 8 SPARK PLUG -Not as spare part now -Replaced by 167098 Call
Location: 32 Prev | Next Part: 167098 *Qty: 8 SPARK PLUG - For F355 not as spare part Call
Location: 32 Prev | Next Part: 168325 *Qty: 8 SPARK PLUG -Valid till stock exhaustion Superseded
Location: 32 Prev | Next Part: PMR7A *Qty: 8 SPARK PLUG -Valid after stock exhaustion of 168325 $22.50
Location: 33 Prev | Next Part: 113647 *Qty: 4 NUT $0.90
Location: 34 Prev | Next Part: 10519377 *Qty: 4 WASHER $0.90
Location: 35 Prev | Next Part: 10441390 *Qty: 1 BRACKET WITH SHEATH $0.90
Location: 36 Prev | Next Part: 102741 *Qty: 1 NUT $0.90
Location: 37 Prev | Next Part: 10519424 *Qty: 1 WASHER Call
Location: 38 Prev | Next Part: 113647 *Qty: 8 NUT $0.90
Location: 39 Prev | Next Part: 10519377 *Qty: 8 WASHER $0.90
Location: 40 Prev | Next Part: 10399280 *Qty: 4 CABLE GROMMET $1.98
Location: 41 Prev | Next Part: 102948 *Qty: 2 NUT $0.90
Location: 42 Prev | Next Part: 10519424 *Qty: 2 WASHER Call
Location: 43 Prev | Next Part: 149951 *Qty: 2 WASHER Superseded
Location: 44 Prev | Next Part: 14497801 *Qty: 2 WASHER $2.41
Location: 45 Prev | Next Part: 10615474 *Qty: 2 WASHER $0.90
Location: 46 Prev | Next Part: 12648201 *Qty: 2 WASHER $0.90
Location: 47 Prev | Next Part: 106195 *Qty: 2 BRACKET WITH SHEATH $45.54
Location: 48 Prev | Next Part: 163132 *Qty: 2 TESTER PUSH -Valid for USA Call
Location: 49 Prev | Next Part: 163123 *Qty: 2 TESTER PUSH CABLE -Valid for USA $28.71
Location: 50 Prev | Next Part: 163160 *Qty: 2 BRACKET -Valid for USA $11.36
Location: 51 Prev | Next Part: 10441790 *Qty: 1 L.H. BRACKET WITH SHEATH $0.94
Location: 51 Prev | Next Part: 10441990 *Qty: 1 R.H. BRACKET WITH SHEATH $0.94
Location: 52 Prev | Next Part: 102948 *Qty: 1 NUT $0.90
Location: 53 Prev | Next Part: 10519424 *Qty: 1 WASHER Call
Location: 54 Prev | Next Part: 169180 *Qty: 1 NUT $0.90
Location: 55 Prev | Next Part: 14496324 *Qty: 1 WASHER $4.02
Location: 56 Prev | Next Part: 169180 *Qty: 1 NUT $0.90
Location: 57 Prev | Next Part: 14496324 *Qty: 1 WASHER $4.02
Location: 58 Prev | Next Part: 150866 *Qty: 1 R.H. PHASE SENSOR $133.45
Location: 59 Prev | Next Part: 12601274 *Qty: 1 WASHER $0.90
Location: 60 Prev | Next Part: 14305224 *Qty: 1 SCREW $0.90
Location: 61 Prev | Next Part: 150867 *Qty: 1 SEAL RING $2.16
Location: 62 Prev | Next Part: 160867 *Qty: 1 BRACKET $50.23
Location: 63 Prev | Next Part: 150866 *Qty: 1 L.H. PHASE SENSOR -Valid till engine Nr. 38321 $133.45
Location: 64 Prev | Next Part: 12601274 *Qty: 1 WASHER -Valid till engine Nr. 38321 $0.90
Location: 65 Prev | Next Part: 14305224 *Qty: 1 SCREW -Valid till engine Nr. 38321 $0.90
Location: 66 Prev | Next Part: 150867 *Qty: 1 SEAL RING -Valid till engine Nr. 38321 $2.16
Location: 67 Prev | Next Part: 160867 *Qty: 1 BRACKET -Valid till engine Nr. 38321 $50.23

* Quantity shown indicates the number of pieces used in the diagram.
