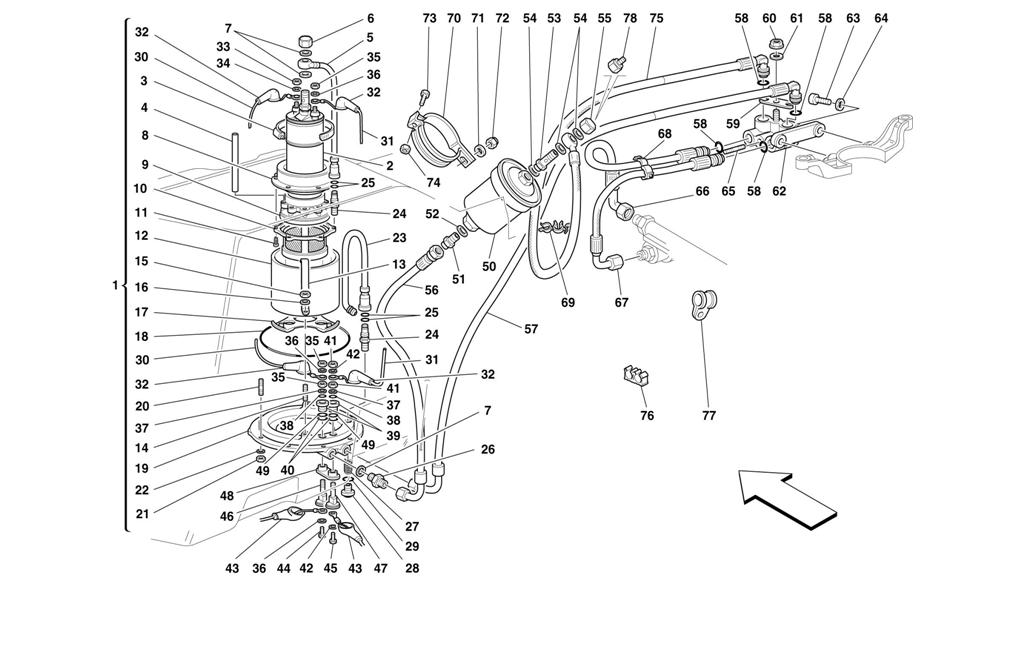

FUEL PUMP AND PIPES -VALID FOR CARS WITH SINGLE FUEL PUMP-

Go to Split View

FUEL PUMP AND PIPES -VALID FOR CARS WITH SINGLE FUEL PUMP-

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 165267 *Qty: 1 COMPLETE FUEL PUMP Call
Location: 2 Prev | Next Part: 140317 *Qty: 1 FUEL PUMP Call
Location: 3 Prev | Next Part: 13000890 *Qty: 1 SCREW COLLAR $1.18
Location: 4 Prev | Next Part: 139205 *Qty: 1 VENT PIPE $49.01
Location: 5 Prev | Next Part: 133967 *Qty: 1 FUEL PIPE Call
Location: 6 Prev | Next Part: 171752 *Qty: 1 UNION $25.24
Location: 7 Prev | Next Part: 113910 *Qty: 4 GASKET Superseded
Location: 8 Prev | Next Part: 126810 *Qty: 1 FUEL FILTER COVER -For F355 not as spare part Call
Location: 8 Prev | Next Part: 168880 *Qty: 1 FUEL FILTER COVER -Replaces 126810 Call
Location: 9 Prev | Next Part: 126809 *Qty: 1 GASKET Call
Location: 10 Prev | Next Part: 126808 *Qty: 1 FILTER INSIDE CHAMBER $46.43
Location: 11 Prev | Next Part: 15671101 *Qty: 6 SCREW $6.37
Location: 12 Prev | Next Part: 153189 *Qty: 1 PAN Call
Location: 13 Prev | Next Part: 137577 *Qty: 2 BRACKET $2.18
Location: 14 Prev | Next Part: 11000924 *Qty: 2 STUD $0.90
Location: 15 Prev | Next Part: 13677911 *Qty: 2 NUT Call
Location: 16 Prev | Next Part: 10730014 *Qty: 2 WASHER $0.90
Location: 17 Prev | Next Part: 126807 *Qty: 1 ANTI-VIBRATIONS $35.50
Location: 18 Prev | Next Part: 138453 *Qty: 1 O.R. GASKET $50.45
Location: 19 Prev | Next Part: 139454 *Qty: 1 FUEL PUMP COVER $736.71
Location: 20 Prev | Next Part: 11500224 *Qty: 8 STUD $0.90
Location: 21 Prev | Next Part: 102741 *Qty: 8 NUT $0.51
Location: 22 Prev | Next Part: 12601274 *Qty: 8 WASHER $0.90
Location: 23 Prev | Next Part: 165489 *Qty: 1 FUEL FLOWING BACK PIPE $182.09
Location: 24 Prev | Next Part: 133950 *Qty: 2 UNION $67.64
Location: 25 Prev | Next Part: 133956 *Qty: 4 O.R. GASKET $1.22
Location: 26 Prev | Next Part: 109797 *Qty: 2 UNION $46.44
Location: 27 Prev | Next Part: 103388 *Qty: 1 THREADED INSERT $17.15
Location: 28 Prev | Next Part: 134713 *Qty: 1 PLUG $16.28
Location: 29 Prev | Next Part: 134233 *Qty: 1 O.R. GASKET $5.38
Location: 30 Prev | Next Part: 139519 *Qty: 1 POSITIVE CABLE $74.55
Location: 31 Prev | Next Part: 146660 *Qty: 1 NEGATIVE CABLE $82.38
Location: 32 Prev | Next Part: 130146 *Qty: 1 BOOT $10.09
Location: 33 Prev | Next Part: 10794011 *Qty: 1 NUT $0.90
Location: 34 Prev | Next Part: 10615274 *Qty: 1 WASHER $0.90
Location: 35 Prev | Next Part: 15896470 *Qty: 3 NUT $0.90
Location: 36 Prev | Next Part: 149951 *Qty: 3 WASHER Superseded
Location: 37 Prev | Next Part: 10519424 *Qty: 2 WASHER Call
Location: 38 Prev | Next Part: 134701 *Qty: 2 O.R. GASET $0.90
Location: 39 Prev | Next Part: 134672 *Qty: 2 BUSHING Call
Location: 40 Prev | Next Part: 134705 *Qty: 2 O.R. GASKET $0.90
Location: 41 Prev | Next Part: 15896214 *Qty: 2 NUT $0.90
Location: 42 Prev | Next Part: 10615474 *Qty: 2 WASHER $0.90
Location: 43 Prev | Next Part: 137612 *Qty: 2 BOOT $5.59
Location: 44 Prev | Next Part: 10856821 *Qty: 1 SCREW $0.90
Location: 45 Prev | Next Part: 11635721 *Qty: 1 SCREW $0.90
Location: 46 Prev | Next Part: 137611 *Qty: 1 MASS PIN $62.75
Location: 47 Prev | Next Part: 137610 *Qty: 1 MASS PIN $51.14
Location: 48 Prev | Next Part: 137613 *Qty: 1 OUTER FLANGE $1.29
Location: 49 Prev | Next Part: 14456880 *Qty: 2 O.R. GASKET $0.90
Location: 50 Prev | Next Part: 117792 *Qty: 1 FUEL FILTER $28.00
Location: 51 Prev | Next Part: 109889 *Qty: 1 UNION Call
Location: 52 Prev | Next Part: 10280060 *Qty: 1 GASKET $0.90
Location: 53 Prev | Next Part: 158225 *Qty: 1 UNION $47.47
Location: 54 Prev | Next Part: 113910 *Qty: 3 GASKET Superseded
Location: 55 Prev | Next Part: 171752 *Qty: 1 UNION -Valid till engine Nr.42568 $25.24
Location: 56 Prev | Next Part: 171342 *Qty: 1 FUEL PIPE FROM PUMP TO FILTER -Replaces 165564 $413.48
Location: 57 Prev | Next Part: 171346 *Qty: 1 FUEL PIPE FROM REFLOW BLOCK TO PUMP -Replaces 165566 $416.55
Location: 58 Prev | Next Part: 127816 *Qty: 6 GASKET $4.79
Location: 59 Prev | Next Part: 129316 *Qty: 3 PLATE Call
Location: 60 Prev | Next Part: 14084211 *Qty: 3 NUT $0.90
Location: 61 Prev | Next Part: 12601274 *Qty: 3 WASHER $0.90
Location: 62 Prev | Next Part: 165192 *Qty: 1 FUEL DIVIDER Call
Location: 63 Prev | Next Part: 14433174 *Qty: 2 SCREW $2.22
Location: 64 Prev | Next Part: 153366 *Qty: 2 WASHER $0.90
Location: 65 Prev | Next Part: 13540724 *Qty: 3 STUD $0.90
Location: 66 Prev | Next Part: 171344 *Qty: 2 FUEL PIPE FROM DELIVERY BLOCK TO FLUTE -Replaces 165533 $309.29
Location: 67 Prev | Next Part: 171345 *Qty: 2 FUEL PIPE FROM REGULATOR TO DIVIDER BLOCK -Replaces 165534 $372.21
Location: 68 Prev | Next Part: 160675 *Qty: 4 CLIP $0.90
Location: 69 Prev | Next Part: 166677 *Qty: 1 CLIP $0.90
Location: 70 Prev | Next Part: 126352 *Qty: 1 BRACKET $14.00
Location: 71 Prev | Next Part: 13550301 *Qty: 1 WASHER $19.34
Location: 72 Prev | Next Part: 104030 *Qty: 1 NUT $0.67
Location: 73 Prev | Next Part: 10902424 *Qty: 1 SCREW $0.90
Location: 74 Prev | Next Part: 102741 *Qty: 1 NUT $0.51
Location: 75 Prev | Next Part: 165565 *Qty: 1 FUEL PIPE FROM REGULATOR TO DIVIDER BLOCK $416.55
Location: 76 Prev | Next Part: 160675 *Qty: 2 CLIP $0.90
Location: 77 Prev | Next Part: 10441990 *Qty: 1 FUEL PIPE RETAINIGN BRACKET TO L.H. PLENUM CHAMBER $0.97
Location: 78 Prev | Next Part: 171752 *Qty: 1 NUT -Valid from engine Nr.42569 $25.24

* Quantity shown indicates the number of pieces used in the diagram.
