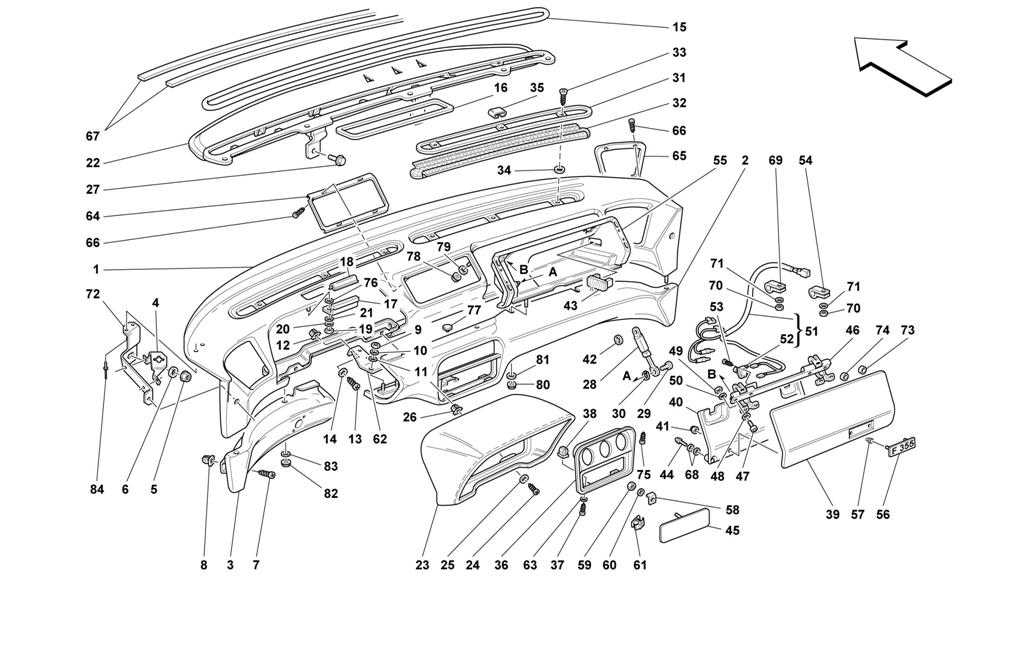

DASHBOARD -NOT FOR AIR-BAG CARS-

Go to Split View

DASHBOARD -NOT FOR AIR-BAG CARS-

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 641172.. *Qty: 1 UPHOLSTERED DASHBOARD UPPER FRAMEWORK -Not for GD Call
Location: 1 Prev | Next Part: 641183.. *Qty: 1 UPPER LINING -Not for GD Call
Location: 1 Prev | Next Part: 644436.. *Qty: 1 UPHOLSTERED DASHBOARD UPPER FRAMEWORK -Valid for GD Call
Location: 1 Prev | Next Part: 644439.. *Qty: 1 UPPER LINING -Valid for GD Call
Location: 2 Prev | Next Part: 644456.. *Qty: 1 COVERED R.H. LOWER INSERT -Valid for GD Call
Location: 2 Prev | Next Part: 641173.. *Qty: 1 COVERED R.H. LOWER INSERT -Not for GD Call
Location: 2 Prev | Next Part: 644459.. *Qty: 1 R.H. LOWER UPHOLSTERY -Valid for GD Call
Location: 2 Prev | Next Part: 641177.. *Qty: 1 R.H. LOWER UPHOLSTERY -Not for GD Call
Location: 3 Prev | Next Part: 644448.. *Qty: 1 COVERED L.H. LOWER INSERT -Valid for GD Call
Location: 3 Prev | Next Part: 644451.. *Qty: 1 L.H. LOWER UPHOLSTERY -Valid for GD Call
Location: 3 Prev | Next Part: 641174.. *Qty: 1 COVERED L.H. LOWER INSERT -Not for GD Call
Location: 3 Prev | Next Part: 641178.. *Qty: 1 L.H. LOWER UPHOLSTERY -Not for GD Call
Location: 4 Prev | Next Part: 62175700 *Qty: 1 R.H. TWEETER FIXING BRACKET $11.77
Location: 4 Prev | Next Part: 62175800 *Qty: 1 L.H. TWEETER FIXING BRACKET $11.77
Location: 5 Prev | Next Part: 13832101 *Qty: 2 NUT $0.90
Location: 6 Prev | Next Part: 12640624 *Qty: 2 WASHER $0.90
Location: 7 Prev | Next Part: 15785101 *Qty: 2 SCREW Call
Location: 8 Prev | Next Part: 14115980 *Qty: 2 BLOCK $0.90
Location: 9 Prev | Next Part: 15896470 *Qty: 4 NUT $0.90
Location: 10 Prev | Next Part: 12605274 *Qty: 4 WASHER $0.90
Location: 11 Prev | Next Part: 14496324 *Qty: 4 WASHER $4.02
Location: 12 Prev | Next Part: 14115980 *Qty: 3 BLOCK $0.90
Location: 13 Prev | Next Part: 15688375 *Qty: 3 SCREW $0.90
Location: 14 Prev | Next Part: 12638124 *Qty: 3 WASHER $0.90
Location: 15 Prev | Next Part: 62200500 *Qty: 1 AIR DUCTING GASKET Call
Location: 16 Prev | Next Part: 62188000 *Qty: 1 AIR CONVEYOR GASKET $8.75
Location: 17 Prev | Next Part: 62139700 *Qty: 1 INSTRUMENTS PANEL FIXING PLATE $3.32
Location: 18 Prev | Next Part: 62139800 *Qty: 1 ANTI-VIBRATIONS Call
Location: 19 Prev | Next Part: 15896470 *Qty: 2 NUT $0.90
Location: 20 Prev | Next Part: 12605274 *Qty: 2 WASHER $0.90
Location: 21 Prev | Next Part: 14496324 *Qty: 2 WASHER $4.02
Location: 22 Prev | Next Part: 62185800 *Qty: 1 UNDER-DASHBOARD AIR DUCTING $89.63
Location: 23 Prev | Next Part: 644464.. *Qty: 1 COVERED INSTRUMENTS PANEL -Valid for GD Call
Location: 23 Prev | Next Part: 644467.. *Qty: 1 LINING -Valid for GD Call
Location: 23 Prev | Next Part: 641120.. *Qty: 1 COVERED INSTRUMENTS PANEL -Not for GD Call
Location: 23 Prev | Next Part: 644324.. *Qty: 1 LINING -Not for GD Call
Location: 24 Prev | Next Part: 15687708 *Qty: 2 SCREW Call
Location: 25 Prev | Next Part: 10519278 *Qty: 2 WASHER $0.90
Location: 26 Prev | Next Part: 14115885 *Qty: 2 BLOCK $0.90
Location: 27 Prev | Next Part: 13833524 *Qty: 2 SCREW M 5 $0.90
Location: 27 Prev | Next Part: 13836324 *Qty: 2 SCREW M 6 $0.90
Location: 28 Prev | Next Part: 62830600 *Qty: 1 DOOR GAS SPRING Call
Location: 29 Prev | Next Part: 62162800 *Qty: 1 PIN $8.05
Location: 30 Prev | Next Part: 11087576 *Qty: 1 FLEXIBLE RING $0.90
Location: 31 Prev | Next Part: 62186800 *Qty: 2 AIR OUTLET PLATE $462.65
Location: 32 Prev | Next Part: 62880800 *Qty: 2 AIR OUTLET GRID SHIELD $16.07
Location: 33 Prev | Next Part: 63291400 *Qty: 6 SCREW Call
Location: 34 Prev | Next Part: 63622400 *Qty: 6 WASHER $10.71
Location: 35 Prev | Next Part: 62880900 *Qty: 6 SCREW-COVER PLATE $7.95
Location: 36 Prev | Next Part: 170934 *Qty: 1 PLATE FOR INSTRUMENTS -Not for GD -Valid after stock exhaustion of 64113200 Call
Location: 36 Prev | Next Part: 170935 *Qty: 1 PLATE FOR INSTRUMENTS -Valid for GD $314.77
Location: 37 Prev | Next Part: 15908606 *Qty: 2 SCREW $1.08
Location: 38 Prev | Next Part: 14115580 *Qty: 4 BLOCK $0.90
Location: 39 Prev | Next Part: 644442.. *Qty: 1 COVERED DOOR -Valid for GD Call
Location: 39 Prev | Next Part: 641194.. *Qty: 1 COVERED DOOR -Not for GD Call
Location: 39 Prev | Next Part: 641196.. *Qty: 1 LINING Call
Location: 40 Prev | Next Part: 64444600 *Qty: 1 DOOR INNER OVERLAP -Valid for GD $157.04
Location: 40 Prev | Next Part: 64112900 *Qty: 1 DOOR INNER OVERLAP -Not for GD $163.18
Location: 41 Prev | Next Part: 62990500 *Qty: 5 NUT $1.45
Location: 42 Prev | Next Part: 62831000 *Qty: 1 CLIP $0.90
Location: 43 Prev | Next Part: 139517 *Qty: 1 DOME LAMP $16.31
Location: 44 Prev | Next Part: 62239900 *Qty: 2 ADJUSTMENT PIN $6.69
Location: 45 Prev | Next Part: 64426700 *Qty: 1 PLATE FOR RADIO HOUSING Call
Location: 46 Prev | Next Part: 64114400 *Qty: 1 LID HINGE -Not for GD $329.22
Location: 46 Prev | Next Part: 64515500 *Qty: 1 LID HINGE -Valid for GD $90.48
Location: 47 Prev | Next Part: 13274472 *Qty: 4 SCREW $0.90
Location: 48 Prev | Next Part: 12637806 *Qty: 4 WASHER $0.90
Location: 49 Prev | Next Part: 15896470 *Qty: 4 NUT $0.90
Location: 50 Prev | Next Part: 14496324 *Qty: 4 WASHER $4.02
Location: 51 Prev | Next Part: 157601 *Qty: 1 DASHBOARD GLOVE BOX CABLES $46.50
Location: 52 Prev | Next Part: 141013 *Qty: 1 MICRO-SWITCH $51.06
Location: 53 Prev | Next Part: 64693500 *Qty: 2 SCREW Call
Location: 54 Prev | Next Part: 10418101 *Qty: 1 BRACKET D. 6 $1.08
Location: 55 Prev | Next Part: 64444000 *Qty: 1 BOX INNER INSERT -Valid for GD $391.09
Location: 55 Prev | Next Part: 64112300 *Qty: 1 BOX INNER INSERT -Not for GD $77.64
Location: 56 Prev | Next Part: 64493700 *Qty: 1 F 355 MARK $19.97
Location: 57 Prev | Next Part: 60324506 *Qty: 2 CLIP Superseded
Location: 58 Prev | Next Part: 62993400 *Qty: 1 CLIP $2.10
Location: 59 Prev | Next Part: 16101711 *Qty: 1 NUT $0.90
Location: 60 Prev | Next Part: 10615174 *Qty: 1 WASHER $0.90
Location: 61 Prev | Next Part: 141699 *Qty: 1 CLIP $1.22
Location: 62 Prev | Next Part: 62139200 *Qty: 3 DASHBOARD LOWER FIXING BRACKET Call
Location: 63 Prev | Next Part: 12612207 *Qty: 2 WASHER Call
Location: 64 Prev | Next Part: 64113600 *Qty: 1 AIR OUTLET CENTRAL PLATE -Not for GD $67.34
Location: 64 Prev | Next Part: 64510700 *Qty: 1 AIR OUTLET CENTRAL PLATE -Valid for GD $17.61
Location: 65 Prev | Next Part: 64510500 *Qty: 1 AIR OUTLET L.H. LATERAL PLATE Call
Location: 65 Prev | Next Part: 64113300 *Qty: 1 AIR OUTLET R.H. LATERAL PLATE $29.59
Location: 66 Prev | Next Part: 15902670 *Qty: 14 SCREW $0.90
Location: 67 Prev | Next Part: 360500980 *Qty: 1 BI-ADHESIVE TAPE $1.90
Location: 68 Prev | Next Part: 62692700 *Qty: 4 RUBBER FOR PIN -Possible fitting $2.33
Location: 69 Prev | Next Part: 10420301 *Qty: 1 BRACKET D. 4 $5.97
Location: 70 Prev | Next Part: 169180 *Qty: 2 NUT $0.90
Location: 71 Prev | Next Part: 14496324 *Qty: 2 WASHER $4.02
Location: 72 Prev | Next Part: 64113800 *Qty: 1 DASHBOARD R.H. UPPER LATERAL FIXING BRACKET $27.88
Location: 72 Prev | Next Part: 64113900 *Qty: 1 DASHBOARD L.H. UPPER LATERAL FIXING BRACKET $27.88
Location: 73 Prev | Next Part: 62989700 *Qty: 2 BUSHING $1.99
Location: 74 Prev | Next Part: 62989800 *Qty: 2 BUSHING $1.92
Location: 75 Prev | Next Part: 15692178 *Qty: 4 SCREW $0.90
Location: 76 Prev | Next Part: 12640624 *Qty: 4 WASHER -Possible fitting $0.90
Location: 77 Prev | Next Part: 14624687 *Qty: 1 PLUG $0.90
Location: 78 Prev | Next Part: 13831801 *Qty: 4 NUT $0.90
Location: 79 Prev | Next Part: 12638124 *Qty: 4 WASHER $0.90
Location: 80 Prev | Next Part: 13831801 *Qty: 2 NUT $0.90
Location: 81 Prev | Next Part: 12624101 *Qty: 2 WASHER $0.90
Location: 82 Prev | Next Part: 13831801 *Qty: 6 NUT $0.90
Location: 83 Prev | Next Part: 12638124 *Qty: 6 WASHER $0.90
Location: 84 Prev | Next Part: 60609700 *Qty: 10 RIVET $0.90

* Quantity shown indicates the number of pieces used in the diagram.
