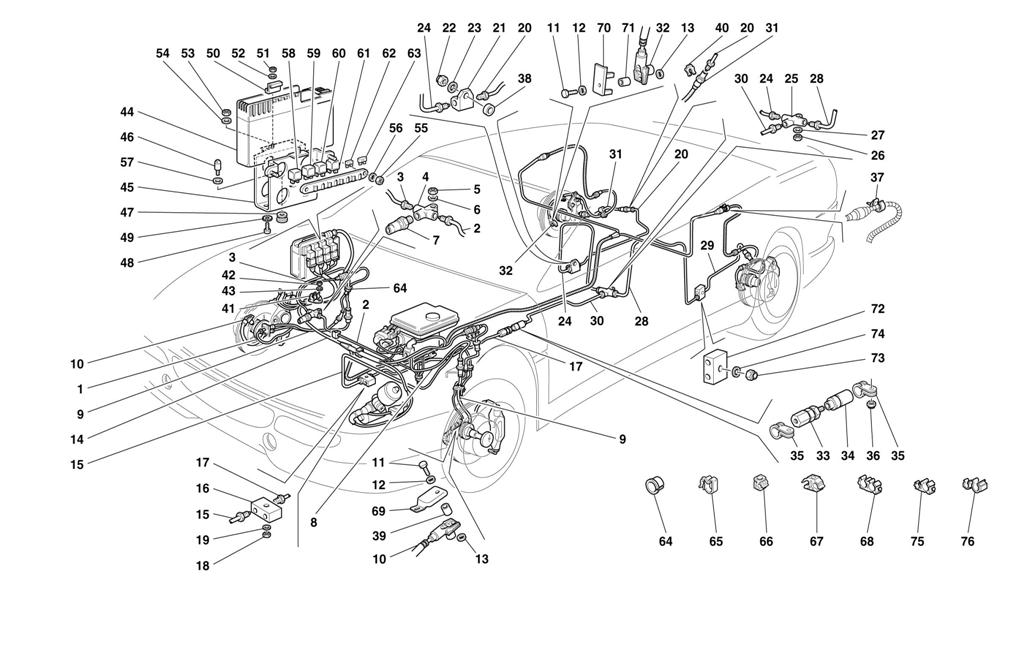

BRAKE SYSTEM

Go to Split View

BRAKE SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 143641 *Qty: 1 PIPE TO R.H. FRONT CALIPER $186.54
Location: 1 Prev | Next Part: 143669 *Qty: 1 PIPE TO L.H. FRONT CALIPER $186.54
Location: 2 Prev | Next Part: 161367 *Qty: 1 BRAKE PIPE FROM CENTER UNIT TO R.H. FRONT UNION -Valid for GD $14.36
Location: 2 Prev | Next Part: 156240 *Qty: 1 BRAKE PIPE FROM CENTER UNIT TO R.H. FRONT UNION -Not for GD $16.78
Location: 3 Prev | Next Part: 156241 *Qty: 1 BRAKE PIPE FROM UNION TO R.H. FRONT FLEXIBLE PIPE $23.39
Location: 4 Prev | Next Part: 101394 *Qty: 1 3-WAY UNION Call
Location: 5 Prev | Next Part: 102741 *Qty: 1 NUT $0.90
Location: 6 Prev | Next Part: 12639724 *Qty: 1 WASHER $0.90
Location: 7 Prev | Next Part: 154309 *Qty: 1 PRESSURE SWITCH $39.53
Location: 8 Prev | Next Part: 162754 *Qty: 1 BRAKE PIPE FROM CENTER UNIT TO L.H. REAR FLEXIBLE PIPE -Valid for GD $18.57
Location: 8 Prev | Next Part: 153472 *Qty: 1 BRAKE PIPE FROM CENTER UNIT TO L.H. REAR FLEXIBLE PIPE -Not for GD $15.70
Location: 9 Prev | Next Part: 116373 *Qty: 2 FRONT BRAKE FLEXIBLE PIPE Superseded
Location: 10 Prev | Next Part: 139639 *Qty: 2 FRONT SENSOR $354.32
Location: 11 Prev | Next Part: 10902724 *Qty: 4 SCREW $0.90
Location: 12 Prev | Next Part: 12601274 *Qty: 4 WASHER $0.90
Location: 13 Prev | Next Part: 154747 *Qty: 0 THICKNESS -Possible fitting $1.76
Location: 14 Prev | Next Part: 160892 *Qty: 1 CABLES FOR ANTISKID DEVICES CONNECTION -Valid for GD $1,013.88
Location: 14 Prev | Next Part: 158042 *Qty: 1 CABLES FOR ANTISKID DEVICES CONNECTION -Not for GD $2,961.83
Location: 15 Prev | Next Part: 162755 *Qty: 1 BRAKE PIPE FROM CENTER UNIT TO 2-WAY UNIT -Valid for GD $16.00
Location: 15 Prev | Next Part: 159756 *Qty: 1 BRAKE PIPE FROM CENTER UNIT TO 2-WAY UNIT -Not for GD $15.05
Location: 16 Prev | Next Part: 139375 *Qty: 1 2-WAY UNION $65.79
Location: 17 Prev | Next Part: 145074 *Qty: 1 PIPE FROM 2-WAY UNION TO BRAKING CORRECTOR $67.78
Location: 18 Prev | Next Part: 102741 *Qty: 1 NUT $0.90
Location: 19 Prev | Next Part: 12639724 *Qty: 1 WASHER $0.90
Location: 20 Prev | Next Part: 162757 *Qty: 1 BRAKE PIPE FROM UNION TO REAR R.H. FLEXIBLE -Valid till stock exhaustion $15.21
Location: 20 Prev | Next Part: 165286 *Qty: 1 BRAKE PIPE FROM UNION TO REAR R.H. FLEXIBLE -Valid after stock exhaustion of 162757 Call
Location: 21 Prev | Next Part: 155215 *Qty: 1 R.H. TWO-WAY UNION $39.51
Location: 22 Prev | Next Part: 102741 *Qty: 1 NUT $0.90
Location: 23 Prev | Next Part: 12639724 *Qty: 1 WASHER $0.90
Location: 24 Prev | Next Part: 145076 *Qty: 1 BRAKE PIPE FROM THREE-WAY UNION TO R.H. UNION $9.82
Location: 25 Prev | Next Part: 101394 *Qty: 1 3-WAY UNION Call
Location: 26 Prev | Next Part: 102741 *Qty: 1 NUT $0.90
Location: 27 Prev | Next Part: 12639724 *Qty: 1 WASHER $0.90
Location: 28 Prev | Next Part: 162756 *Qty: 1 BRAKE PIPE FROM THREE-WAY UNION TO L.H. UNION $21.84
Location: 29 Prev | Next Part: 165287 *Qty: 1 BRAKE PIPE FROM UNION TO REAR L.H. FLEXIBLE -Valid after stock exhaustion of 145079 Call
Location: 30 Prev | Next Part: 145075 *Qty: 1 BRAKE PIPE FROM CORRECTOR TO THREE-WAY UNION $16.96
Location: 31 Prev | Next Part: 118100 *Qty: 2 REAR BRAKE FLEXIBLE PIPE Superseded
Location: 32 Prev | Next Part: 139479 *Qty: 2 REAR SENSOR $498.73
Location: 33 Prev | Next Part: 134597 *Qty: 1 DELAY VALVE Call
Location: 34 Prev | Next Part: 157908 *Qty: 1 BRAKING REGULATOR $122.22
Location: 35 Prev | Next Part: 10441990 *Qty: 2 BRACKET WITH SHEATH $0.97
Location: 36 Prev | Next Part: 102741 *Qty: 2 NUT $0.90
Location: 37 Prev | Next Part: 161639 *Qty: 2 FLEXIBLE CLIP $1.51
Location: 38 Prev | Next Part: 104339 *Qty: 1 SPACER $5.80
Location: 39 Prev | Next Part: 159713 *Qty: 2 SPACER $4.52
Location: 40 Prev | Next Part: 116374 *Qty: 4 CLIP $0.90
Location: 41 Prev | Next Part: 128292 *Qty: 2 CLIP $3.97
Location: 42 Prev | Next Part: 62790300 *Qty: 2 NUT $0.90
Location: 43 Prev | Next Part: 10519224 *Qty: 2 WASHER $0.90
Location: 44 Prev | Next Part: 148838 *Qty: 1 ELECTRONIC CONTROL STATION Call
Location: 45 Prev | Next Part: 158012 *Qty: 1 BRACKET FOR CONTROL UNIT FIXING -Not for GD $57.35
Location: 45 Prev | Next Part: 158013 *Qty: 1 BRACKET FOR CONTROL UNIT FIXING -Valid for GD $56.13
Location: 46 Prev | Next Part: 137144 *Qty: 1 PIN $3.03
Location: 47 Prev | Next Part: 103549 *Qty: 1 CABLE GROMMET $0.90
Location: 48 Prev | Next Part: 11021111 *Qty: 2 SCREW $0.90
Location: 49 Prev | Next Part: 10615274 *Qty: 2 WASHER $0.90
Location: 50 Prev | Next Part: 142382 *Qty: 2 PLATE -Valid for GD $6.21
Location: 50 Prev | Next Part: 138500 *Qty: 2 PLATE -Not for GD $13.17
Location: 51 Prev | Next Part: 169180 *Qty: 2 NUT $0.90
Location: 52 Prev | Next Part: 10519377 *Qty: 2 WASHER $0.90
Location: 53 Prev | Next Part: 102948 *Qty: 2 NUT $0.90
Location: 54 Prev | Next Part: 12646601 *Qty: 2 WASHER $0.90
Location: 55 Prev | Next Part: 169180 *Qty: 2 NUT $0.90
Location: 56 Prev | Next Part: 10519377 *Qty: 2 WASHER $0.90
Location: 57 Prev | Next Part: 104731 *Qty: 1 WASHER $3.52
Location: 58 Prev | Next Part: 158092 *Qty: 1 DIODES CONTAINER Call
Location: 59 Prev | Next Part: 158091 *Qty: 1 ABS ELECTRONIC UNIT RELAY $95.21
Location: 60 Prev | Next Part: 158090 *Qty: 1 ABS PUMP MOTOR RELAY $93.77
Location: 61 Prev | Next Part: 131940 *Qty: 1 SYSTEM RELEASE RELAY $105.81
Location: 62 Prev | Next Part: 131942 *Qty: 1 3 A. FUSE $0.90
Location: 63 Prev | Next Part: 131941 *Qty: 2 30 A. FUSE Call
Location: 64 Prev | Next Part: 105369 *Qty: 3 CABLE GROMMET $1.81
Location: 65 Prev | Next Part: 140798 *Qty: 1 CLIP $0.90
Location: 66 Prev | Next Part: 141505 *Qty: 17 CLIP $1.60
Location: 67 Prev | Next Part: 141522 *Qty: 7 CLIP $2.15
Location: 68 Prev | Next Part: 145544 *Qty: 4 FRONT PIPE FIXING MODULE Call
Location: 68 Prev | Next Part: 140130 *Qty: 8 FRONT AND REAR PIPE FIXING MODULE $0.90
Location: 69 Prev | Next Part: 159662 *Qty: 1 R.H. FRONT SENSOR PROTECTION $41.99
Location: 69 Prev | Next Part: 159663 *Qty: 1 L.H. FRONT SENSOR PROTECTION $41.99
Location: 70 Prev | Next Part: 159758 *Qty: 2 REAR SENSOR PROTECTION $95.36
Location: 71 Prev | Next Part: 159713 *Qty: 2 SPACER $4.52
Location: 72 Prev | Next Part: 139375 *Qty: 1 UNION $65.79
Location: 73 Prev | Next Part: 102741 *Qty: 1 NUT $0.90
Location: 74 Prev | Next Part: 12639724 *Qty: 1 WASHER $0.90
Location: 75 Prev | Next Part: 140742 *Qty: 4 ELASTIC SPRINGS ASSEMBLY -D. 10 - D. 18 $0.90
Location: 76 Prev | Next Part: 150695 *Qty: 2 CLIP -D. 9 - D. 11 $0.90

* Quantity shown indicates the number of pieces used in the diagram.
