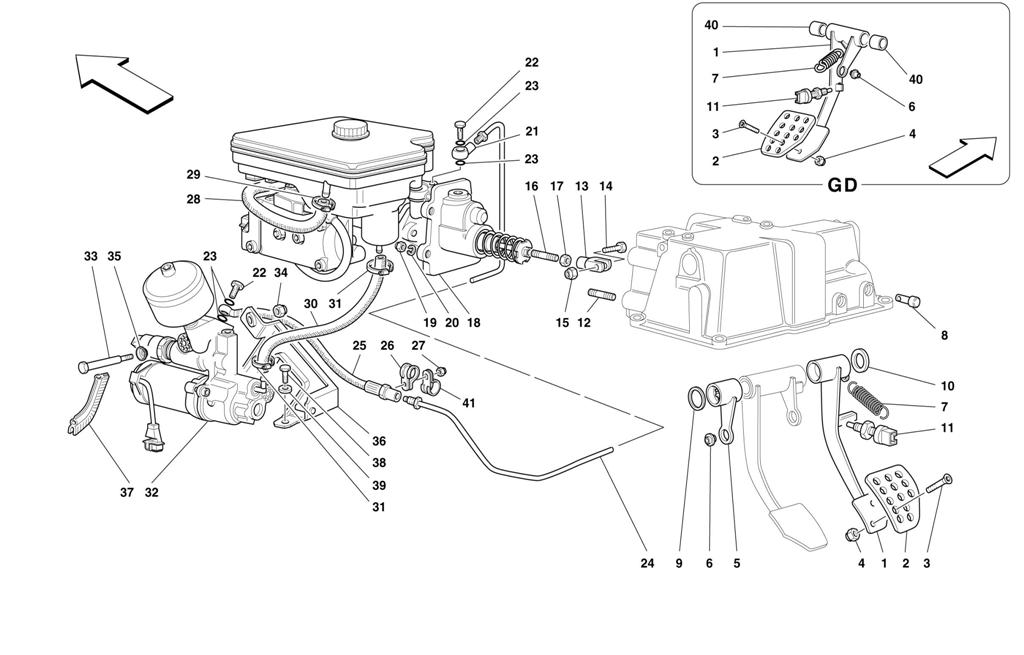

BRAKE HYDRAULIC SYSTEM

Go to Split View

BRAKE HYDRAULIC SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 157267 *Qty: 1 BRAKE PEDAL -Not for GD $144.39
Location: 1 Prev | Next Part: 161947 *Qty: 1 BRAKE PEDAL -Valid for GD $319.25
Location: 2 Prev | Next Part: 162535 *Qty: 1 BRAKE PEDAL DRILLED PLATE $44.86
Location: 3 Prev | Next Part: 14441324 *Qty: 2 SCREW $0.90
Location: 4 Prev | Next Part: 15896214 *Qty: 2 NUT $0.90
Location: 5 Prev | Next Part: 129609 *Qty: 1 TRANSMISSION LEVER -Not for GD $463.64
Location: 6 Prev | Next Part: 109407 *Qty: 1 BALL JOINT $27.57
Location: 7 Prev | Next Part: 101305 *Qty: 1 SPRING $5.99
Location: 8 Prev | Next Part: 129612 *Qty: 1 PIN $3.06
Location: 9 Prev | Next Part: 112125 *Qty: 1 SPACER WASHER -Not for GD $2.54
Location: 10 Prev | Next Part: 112127 *Qty: 1 WASHER mm. 0,9 -Possible fitting -Not for GD $0.90
Location: 10 Prev | Next Part: 112128 *Qty: 1 WASHER mm. 1,0 -Possible fitting -Not for GD $0.90
Location: 10 Prev | Next Part: 112129 *Qty: 1 WASHER mm. 1,1 -Possible fitting -Not for GD $0.90
Location: 10 Prev | Next Part: 112130 *Qty: 1 WASHER mm. 1,2 -Possible fitting -Not for GD $0.97
Location: 10 Prev | Next Part: 112131 *Qty: 1 WASHER mm. 1,3 -Possible fitting -Not for GD $0.90
Location: 11 Prev | Next Part: 133555 *Qty: 1 STOP CONTROL SWITCH $111.55
Location: 12 Prev | Next Part: 13543424 *Qty: 4 STUD $0.90
Location: 13 Prev | Next Part: 10007871 *Qty: 1 FORK $19.78
Location: 14 Prev | Next Part: 16043621 *Qty: 1 SCREW $0.90
Location: 15 Prev | Next Part: 147985 *Qty: 1 NUT $0.90
Location: 16 Prev | Next Part: 13517124 *Qty: 1 STUD $9.27
Location: 17 Prev | Next Part: 16102324 *Qty: 1 NUT $0.90
Location: 18 Prev | Next Part: 70000768 *Qty: 1 ANTISKID HYDRAULIC CONTROL STATION -Not as spare part -With the kit 70000768 -See Table 34 Call
Location: 19 Prev | Next Part: 104030 *Qty: 4 NUT $0.90
Location: 20 Prev | Next Part: 12601374 *Qty: 4 WASHER $0.90
Location: 21 Prev | Next Part: 70000535 *Qty: 1 UNION $151.17
Location: 22 Prev | Next Part: 131873 *Qty: 2 UNION $7.15
Location: 23 Prev | Next Part: 70000510 *Qty: 4 O.R. GASKET Call
Location: 24 Prev | Next Part: 143676 *Qty: 1 BRAKE PIPE -Not for GD $26.60
Location: 24 Prev | Next Part: 143677 *Qty: 1 BRAKE PIPE -Valid for GD $17.81
Location: 25 Prev | Next Part: 70000533 *Qty: 1 HOSE $918.45
Location: 26 Prev | Next Part: 10441590 *Qty: 1 BRACKET WITH SHEATH $0.90
Location: 27 Prev | Next Part: 102741 *Qty: 1 NUT $0.90
Location: 28 Prev | Next Part: 151845 *Qty: 1 PIPE FROM CLUTCH PUMP TO TANK -Not for GD $63.79
Location: 28 Prev | Next Part: 134903 *Qty: 1 PIPE FROM CLUTCH PUMP TO TANK -Valid for GD $4.38
Location: 29 Prev | Next Part: 157934 *Qty: 1 SCREW COLLAR Superseded
Location: 30 Prev | Next Part: 132411 *Qty: 1 RUBBER HOSE -Not for GD $14.19
Location: 30 Prev | Next Part: 143069 *Qty: 1 RUBBER HOSE -Valid for GD Call
Location: 31 Prev | Next Part: 157934 *Qty: 2 SCREW COLLAR Superseded
Location: 32 Prev | Next Part: 148977 *Qty: 1 BRAKES CONTROL PUMP -Not as spare part -With the kit 70000772 -See Table 34 Call
Location: 33 Prev | Next Part: 129636 *Qty: 1 SCREW $5.76
Location: 34 Prev | Next Part: 102948 *Qty: 1 NUT $0.90
Location: 35 Prev | Next Part: 130861 *Qty: 1 WASHER $4.65
Location: 36 Prev | Next Part: 140498 *Qty: 1 BRACKET $59.79
Location: 37 Prev | Next Part: 144824 *Qty: 1 GASKET $1.84
Location: 38 Prev | Next Part: 16043124 *Qty: 2 SCREW $0.90
Location: 39 Prev | Next Part: 127496 *Qty: 2 WASHER $0.90
Location: 40 Prev | Next Part: 103163 *Qty: 2 BUSHING -Valid for GD $3.81
Location: 41 Prev | Next Part: 10441490 *Qty: 1 BRACKET WITH SHEATH -Valid for GD $0.90

* Quantity shown indicates the number of pieces used in the diagram.
