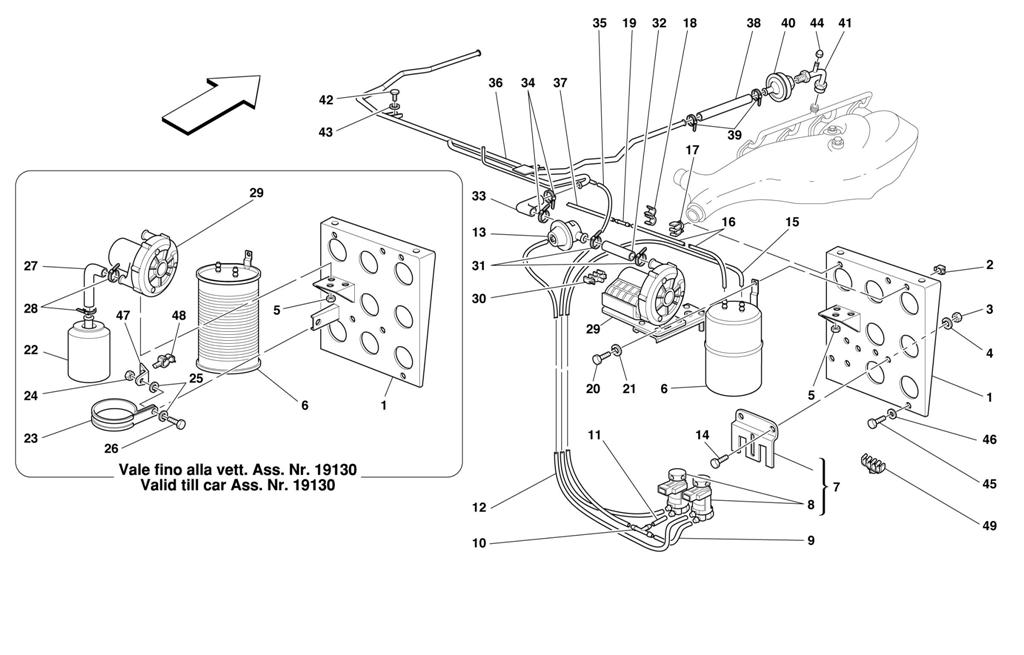

AIR INJECTION DEVICE

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 168077 *Qty: 1 BRACKET FOR SECONDARY AIR PUMP FIXING -Valid from Ass. Nr. 19131 $84.13
Location: 1 Prev | Next Part: 154929 *Qty: 1 BRACKET FOR SECONDARY AIR PUMP FIXING -Valid till car Nr. 19130 $453.62
Location: 2 Prev | Next Part: 63364600 *Qty: 2 NUT WITH CAGE Call
Location: 3 Prev | Next Part: 113647 *Qty: 2 NUT $0.90
Location: 4 Prev | Next Part: 14496324 *Qty: 2 WASHER $4.02
Location: 5 Prev | Next Part: 15896214 *Qty: 3 NUT $0.90
Location: 6 Prev | Next Part: 168038 *Qty: 1 VACUUM TANK -Valid from Ass. Nr. 19131 $655.69
Location: 7 Prev | Next Part: 159176 *Qty: 1 SOLENOID VALVES COMPLETE SMALL PLATE $137.37
Location: 8 Prev | Next Part: 159177 *Qty: 2 SOLENOID VALVE $193.73
Location: 9 Prev | Next Part: 159189 *Qty: 1 PIPE FROM CONNECTION TO SOLENOID VALVE $5.72
Location: 10 Prev | Next Part: 121793 *Qty: 1 3-WAY UNION $0.90
Location: 11 Prev | Next Part: 122759 *Qty: 1 PIPE FROM CONNECTION TO SOLENOID VALVE $7.67
Location: 12 Prev | Next Part: 118901 *Qty: 1 PIPE FROM CUT-OFF SOLENOID VALVE $6.07
Location: 13 Prev | Next Part: 147390 *Qty: 1 CUT-OFF VALVE $320.73
Location: 14 Prev | Next Part: 14287724 *Qty: 2 SCREW $0.90
Location: 15 Prev | Next Part: 122126 *Qty: 1 PIPE FROM VACUUM TANK TO 3-WAY UNION $10.85
Location: 16 Prev | Next Part: 115676 *Qty: 1 PIPE FROM VACUUM TANK TO UNION $15.78
Location: 17 Prev | Next Part: 119404 *Qty: 2 CLIP $5.12
Location: 18 Prev | Next Part: 145702 *Qty: 1 CLIP $0.90
Location: 19 Prev | Next Part: 159191 *Qty: 1 UNION $0.90
Location: 20 Prev | Next Part: 10902124 *Qty: 2 SCREW $0.90
Location: 21 Prev | Next Part: 12639724 *Qty: 2 WASHER $0.90
Location: 22 Prev | Next Part: 70000967 *Qty: 1 AIR FILTER -Valid till car Nr. 19130 $114.90
Location: 23 Prev | Next Part: 126353 *Qty: 1 BRACKET WITH SHEATH -Valid till car Nr. 19130 $34.02
Location: 24 Prev | Next Part: 102741 *Qty: 1 NUT -Valid till car Nr. 19130 $0.90
Location: 25 Prev | Next Part: 12639724 *Qty: 2 WASHER -Valid till car Nr. 19130 $0.90
Location: 26 Prev | Next Part: 10902424 *Qty: 1 SCREW -Valid till car Nr. 19130 $0.90
Location: 27 Prev | Next Part: 145108 *Qty: 1 SLEEVE FROM AIR PUMP TO FILTER -Valid till car Nr. 19130 $170.89
Location: 28 Prev | Next Part: 13000490 *Qty: 2 SCREW COLLAR -Valid till car Nr. 19130 Call
Location: 29 Prev | Next Part: 148049 *Qty: 1 ELECTRIC AIR PUMP -Valid till car Nr. 19130 Call
Location: 29 Prev | Next Part: 165903 *Qty: 1 ELECTRIC AIR PUMP -Valid from Ass. Nr. 19131 Call
Location: 30 Prev | Next Part: 119403 *Qty: 1 CLIP Call
Location: 31 Prev | Next Part: 13000490 *Qty: 2 SCREW COLLAR Call
Location: 32 Prev | Next Part: 165446 *Qty: 1 HOSE FROM CUT-OFF VALVE TO AIR PUMP $31.75
Location: 33 Prev | Next Part: 154652 *Qty: 1 SLEEVE FROM PIPE TO CUT-OFF VALVE $72.65
Location: 34 Prev | Next Part: 13000390 *Qty: 2 SCREW COLLAR $0.97
Location: 35 Prev | Next Part: 115676 *Qty: 1 PIPE FROM SOLENOID VALVE TO ENGINE CONNECTION PIPE $15.78
Location: 36 Prev | Next Part: 164556 *Qty: 1 PIPE TO ENGINE -Valid for CH $1,071.39
Location: 36 Prev | Next Part: 145155 *Qty: 1 PIPE TO ENGINE -Not for CH -Not as spare part now -Replaced by 165471 Call
Location: 36 Prev | Next Part: 165471 *Qty: 1 PIPE TO ENGINE -Not for CH $555.98
Location: 37 Prev | Next Part: 117170 *Qty: 1 PIPE FROM UNION TO VACUUM TANK Call
Location: 38 Prev | Next Part: 165446 *Qty: 2 RUBBER HOSE $31.75
Location: 39 Prev | Next Part: 13000490 *Qty: 4 SCREW COLLAR Call
Location: 40 Prev | Next Part: 148494 *Qty: 2 SECONDARY AIR VALVE $39.00
Location: 41 Prev | Next Part: 151150 *Qty: 2 UNION Call
Location: 42 Prev | Next Part: 10902111 *Qty: 2 SCREW Superseded
Location: 43 Prev | Next Part: 12620479 *Qty: 2 WASHER $0.90
Location: 44 Prev | Next Part: 150595 *Qty: 2 NUT $1.17
Location: 45 Prev | Next Part: 10902124 *Qty: 3 SCREW $0.90
Location: 46 Prev | Next Part: 12646601 *Qty: 3 WASHER $0.90
Location: 47 Prev | Next Part: 159658 *Qty: 1 BRACKET -Valid till car Nr. 19130 $2.09
Location: 48 Prev | Next Part: 164565 *Qty: 1 CLIP -Valid till car Nr. 19130 $0.90
Location: 49 Prev | Next Part: 119402 *Qty: 1 CLIP -Valid from Ass. Nr. 19131 $2.28

* Quantity shown indicates the number of pieces used in the diagram.
