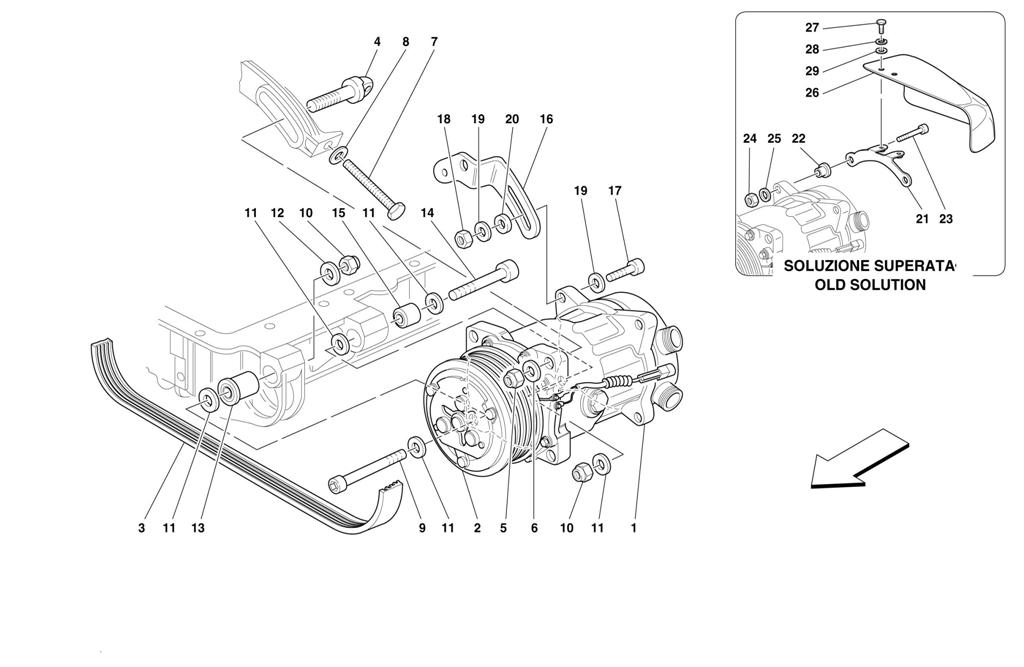

AIR CONDITIONING COMPRESSOR

Go to Split View

AIR CONDITIONING COMPRESSOR

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 157355 *Qty: 1 AIR CONDITIONING COMPRESSOR $520.00
Location: 2 Prev | Next Part: 138331 *Qty: 1 ELECTRO-MAGNETIC JOINT Call
Location: 3 Prev | Next Part: 199830 *Qty: 1 COMPRESSOR CONTROL BELT $24.00
Location: 4 Prev | Next Part: 156434 *Qty: 1 THREADED PIN $95.34
Location: 5 Prev | Next Part: 102742 *Qty: 1 NUT $0.84
Location: 6 Prev | Next Part: 13550401 *Qty: 1 WASHER $0.90
Location: 7 Prev | Next Part: 125668 *Qty: 1 SCREW $1.87
Location: 8 Prev | Next Part: 14496524 *Qty: 1 WASHER $0.90
Location: 9 Prev | Next Part: 101632 *Qty: 1 SCREW $12.67
Location: 10 Prev | Next Part: 102742 *Qty: 2 NUT $0.84
Location: 11 Prev | Next Part: 12642501 *Qty: 5 WASHER Call
Location: 12 Prev | Next Part: 12626224 *Qty: 1 WASHER $0.90
Location: 13 Prev | Next Part: 137768 *Qty: 1 ESTENDBLOCK $16.68
Location: 14 Prev | Next Part: 14308121 *Qty: 1 SCREW $3.97
Location: 15 Prev | Next Part: 135108 *Qty: 1 ESTENDBLOCK Call
Location: 16 Prev | Next Part: 162946 *Qty: 1 REAR BRACKET $44.58
Location: 17 Prev | Next Part: 14307624 *Qty: 1 SCREW $2.30
Location: 18 Prev | Next Part: 133988 *Qty: 1 NUT $0.90
Location: 19 Prev | Next Part: 12604579 *Qty: 2 WASHER $1.56
Location: 20 Prev | Next Part: 12626021 *Qty: 1 WASHER $0.90
Location: 21 Prev | Next Part: 161469 *Qty: 1 BRACKET $90.86
Location: 22 Prev | Next Part: 151606 *Qty: 2 BUSHING $6.21
Location: 23 Prev | Next Part: 14306424 *Qty: 2 SCREW $0.90
Location: 24 Prev | Next Part: 16100814 *Qty: 2 NUT $0.90
Location: 25 Prev | Next Part: 11193874 *Qty: 2 WASHER $0.90
Location: 26 Prev | Next Part: 160708 *Qty: 1 SHIELD FOR COMPRESSOR PROTECTION $177.68
Location: 27 Prev | Next Part: 10902111 *Qty: 2 SCREW Superseded
Location: 28 Prev | Next Part: 127494 *Qty: 2 WASHER $0.90
Location: 29 Prev | Next Part: 12644424 *Qty: 2 WASHER $0.90

* Quantity shown indicates the number of pieces used in the diagram.
