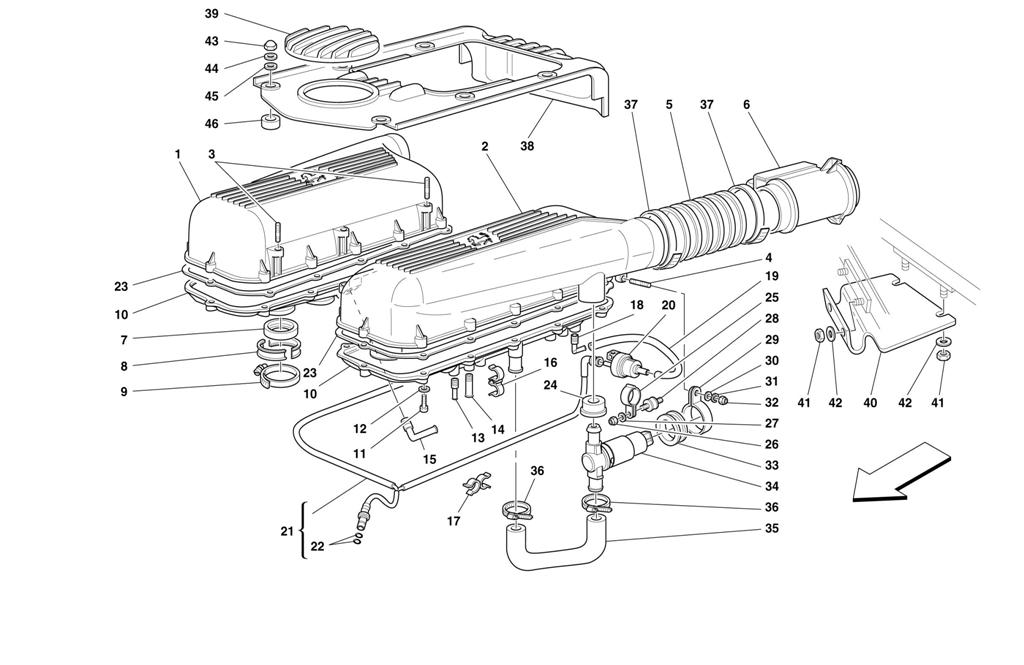

AIR BOXES

Go to Split View

AIR BOXES

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 163645 *Qty: 1 COMPLETE R.H. AIR FEEDING PLENUM CHAMBER AND COVER $920.30
Location: - Prev | Next Part: 163646 *Qty: 1 COMPLETE L.H. AIR FEEDING PLENUM CHAMBER AND COVER $1,639.64
Location: 1 Prev | Next Part: 157673 *Qty: 1 R.H. AIR FEEDING PLENUM CHAMBER -Not as spare part now -With the assembly 163645 Call
Location: 2 Prev | Next Part: 157702 *Qty: 1 L.H. AIR FEEDING PLENUM CHAMBER -Not as spare part now -With the assembly 163646 Call
Location: 3 Prev | Next Part: 11500724 *Qty: 6 STUD $1.72
Location: 4 Prev | Next Part: 13540824 *Qty: 2 STUD $0.90
Location: 5 Prev | Next Part: 160701 *Qty: 2 SLEEVE $71.96
Location: 6 Prev | Next Part: 154916 *Qty: 2 AIR FLOW METER $1,162.42
Location: 7 Prev | Next Part: 145643 *Qty: 16 GASKET $30.51
Location: 8 Prev | Next Part: 169452 *Qty: 32 SEMI-RING -Valid after stock axaustion of 145644 $19.68
Location: 8 Prev | Next Part: 145644 *Qty: 32 SEMI-RING -Valid till stock exhaustion Call
Location: 9 Prev | Next Part: 145645 *Qty: 16 CLAMP $11.64
Location: 10 Prev | Next Part: 157582 *Qty: 2 LOWER COVER -Not as spare part now -With the assembly 163645 and 163646 $617.22
Location: 11 Prev | Next Part: 14305424 *Qty: 32 SCREW Superseded
Location: 12 Prev | Next Part: 12601274 *Qty: 32 WASHER $0.90
Location: 13 Prev | Next Part: 160846 *Qty: 2 UNION $6.91
Location: 14 Prev | Next Part: 129808 *Qty: 8 UNION $6.02
Location: 15 Prev | Next Part: 153926 *Qty: 2 UNION $42.63
Location: 16 Prev | Next Part: 139966 *Qty: 2 FLEXIBLE CLIP $0.90
Location: 17 Prev | Next Part: 160014 *Qty: 1 FLEXIBLE CLIP $1.76
Location: 18 Prev | Next Part: 160829 *Qty: 2 UNION $114.99
Location: 19 Prev | Next Part: 114879 *Qty: 2 RUBBER HOSE -Valid after stock exhaustion of 165568 $1.85
Location: 19 Prev | Next Part: 116764 *Qty: 2 RUBBER HOSE -Valid till engine Nr.38150 $4.77
Location: 20 Prev | Next Part: 130978 *Qty: 2 ANTI-EVAPORATION VALVE Call
Location: 21 Prev | Next Part: 160689 *Qty: 1 ANTI-EVAPORATION PIPE TO PIPE FROM VAPOR FILTER $101.95
Location: 22 Prev | Next Part: 133956 *Qty: 2 O.R. GASKET $1.18
Location: 23 Prev | Next Part: 153381 *Qty: 2 GASKET -With 16 fixing points $27.08
Location: 23 Prev | Next Part: 166438 *Qty: 2 GASKET -With 12 fixing points $21.77
Location: 24 Prev | Next Part: 147898 *Qty: 2 SLEEVE $22.48
Location: 25 Prev | Next Part: 147923 *Qty: 2 CLAMP $2.28
Location: 26 Prev | Next Part: 10718025 *Qty: 4 NUT $17.61
Location: 27 Prev | Next Part: 127493 *Qty: 4 WASHER Superseded
Location: 28 Prev | Next Part: 148835 *Qty: 2 PAD $14.95
Location: 29 Prev | Next Part: 157808 *Qty: 2 BRACKET $2.98
Location: 30 Prev | Next Part: 14496424 *Qty: 2 WASHER Superseded
Location: 31 Prev | Next Part: 127494 *Qty: 2 WASHER $0.90
Location: 32 Prev | Next Part: 15896214 *Qty: 2 NUT $0.90
Location: 33 Prev | Next Part: 150736 *Qty: 2 SHEATH Call
Location: 34 Prev | Next Part: 147373 *Qty: 2 REGULATOR FOR IDLE ADJUSTMENT $557.62
Location: 35 Prev | Next Part: 157810 *Qty: 2 PIPE $39.17
Location: 36 Prev | Next Part: 12180290 *Qty: 4 SCREW COLLAR Call
Location: 37 Prev | Next Part: 13001090 *Qty: 4 SCREW COLLAR $1.88
Location: 38 Prev | Next Part: 159517 *Qty: 1 SHIELD $103.43
Location: 39 Prev | Next Part: 159519 *Qty: 1 SHIELD COVER -Valid for mechanical steering box cars $113.96
Location: 40 Prev | Next Part: 160476 *Qty: 1 L.H. SHIELD FOR AIR FLOW METER PROTECTION $538.68
Location: 40 Prev | Next Part: 160475 *Qty: 1 R.H. SHIELD FOR AIR FLOW METER PROTECTION $426.62
Location: 41 Prev | Next Part: 113647 *Qty: 8 NUT $0.90
Location: 42 Prev | Next Part: 12638124 *Qty: 8 WASHER $0.90
Location: 43 Prev | Next Part: 100044 *Qty: 2 NUT $0.90
Location: 44 Prev | Next Part: 113113 *Qty: 2 WASHER $1.71
Location: 45 Prev | Next Part: 14496424 *Qty: 2 WASHER Superseded
Location: 46 Prev | Next Part: 159518 *Qty: 2 SPACER -Valid for mechanical steering box cars $28.40

* Quantity shown indicates the number of pieces used in the diagram.
