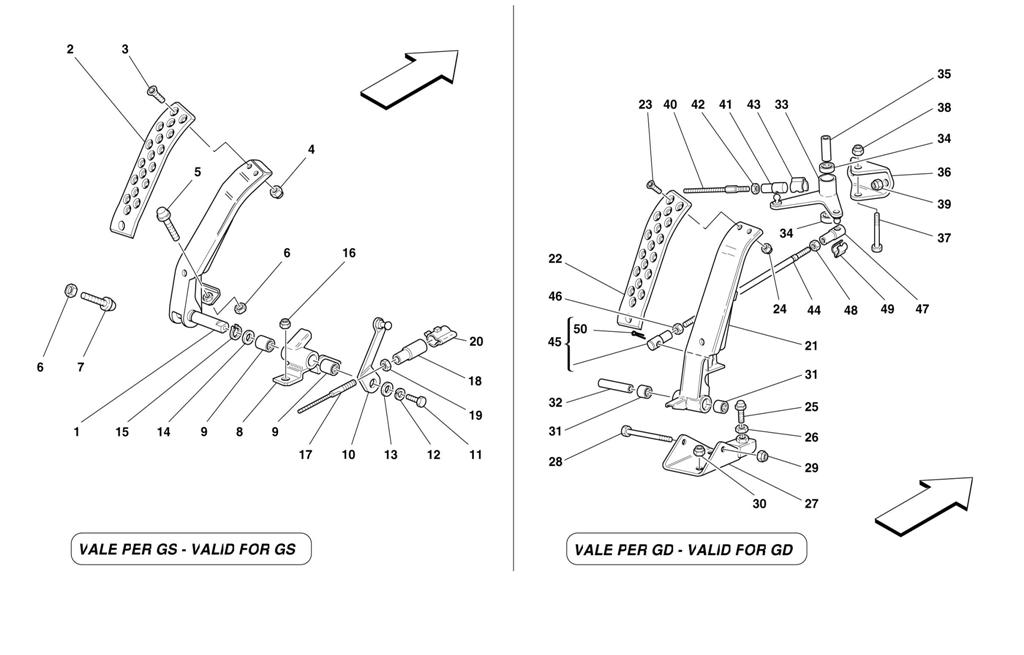

ACCELERATOR PEDAL

Go to Split View

ACCELERATOR PEDAL

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 163173 *Qty: 1 ACCELERATOR PEDAL -Not for GD $222.23
Location: 2 Prev | Next Part: 163170 *Qty: 1 ACCELERATOR PEDAL DRILLED PLATE -Not for GD $46.12
Location: 3 Prev | Next Part: 14440734 *Qty: 3 SCREW -Not for GD $0.90
Location: 4 Prev | Next Part: 14058311 *Qty: 2 NUT -Not for GD $0.90
Location: 5 Prev | Next Part: 137012 *Qty: 1 PEDAL ADJUSTEMENT PIN -Not for GD $24.52
Location: 6 Prev | Next Part: 16102324 *Qty: 2 NUT -Not for GD $0.90
Location: 7 Prev | Next Part: 123961 *Qty: 1 PEDAL ADJUSTEMENT PIN -Not for GD $4.02
Location: 8 Prev | Next Part: 151206 *Qty: 1 ACCELERATOR PEDAL SUPPORT -Not for GD $58.37
Location: 9 Prev | Next Part: 101677 *Qty: 2 BEARING -Not for GD $2.44
Location: 10 Prev | Next Part: 145425 *Qty: 1 ACCELERATOR CONTROL LEVER -Not for GD $26.05
Location: 11 Prev | Next Part: 10902224 *Qty: 1 SCREW -Not for GD $0.90
Location: 12 Prev | Next Part: 127494 *Qty: 1 WASHER -Not for GD $0.90
Location: 13 Prev | Next Part: 106744 *Qty: 1 WASHER -Not for GD $0.90
Location: 14 Prev | Next Part: 105931 *Qty: 1 SPACER WASHER mm. 0,7 -Not for GD $0.97
Location: 14 Prev | Next Part: 108576 *Qty: 1 SPACER WASHER mm. 1,0 -Not for GD $1.72
Location: 15 Prev | Next Part: 11066075 *Qty: 1 SEEGER RING -Not for GD $0.90
Location: 16 Prev | Next Part: 104030 *Qty: 2 NUT -Not for GD $0.90
Location: 17 Prev | Next Part: 164441 *Qty: 1 ACCELERATOR CONTROL CABLE -Valid after exhaustion of 160509 -Not for GD $63.80
Location: 18 Prev | Next Part: 10123811 *Qty: 1 BALL JOINT HEAD -Not for GD $25.81
Location: 19 Prev | Next Part: 15896470 *Qty: 1 NUT -Not for GD $0.90
Location: 20 Prev | Next Part: 174001 *Qty: 1 CLIP RETAINER -Not for GD $0.90
Location: 21 Prev | Next Part: 163174 *Qty: 1 ACCELERATOR PEDAL -Valid for GD $188.94
Location: 22 Prev | Next Part: 163170 *Qty: 1 ACCELERATOR PEDAL DRILLED PLATE -Valid for GD $46.12
Location: 23 Prev | Next Part: 14440734 *Qty: 3 SCREW -Valid for GD $0.90
Location: 24 Prev | Next Part: 14058311 *Qty: 2 NUT -Valid for GD $0.90
Location: 25 Prev | Next Part: 137012 *Qty: 1 PEDAL ADJUSTEMENT PIN -Valid for GD $24.52
Location: 26 Prev | Next Part: 16102324 *Qty: 1 NUT -Valid for GD $0.90
Location: 27 Prev | Next Part: 138204 *Qty: 1 ACCELERATOR PEDAL SUPPORT -Valid for GD $25.66
Location: 28 Prev | Next Part: 10903621 *Qty: 1 SCREW -Valid for GD $0.90
Location: 29 Prev | Next Part: 102741 *Qty: 1 NUT -Valid for GD $0.90
Location: 30 Prev | Next Part: 104030 *Qty: 2 NUT -Valid for GD $0.90
Location: 31 Prev | Next Part: 101677 *Qty: 2 BEARING -Valid for GD $2.44
Location: 32 Prev | Next Part: 138219 *Qty: 1 PIN -Valid for GD $118.04
Location: 33 Prev | Next Part: 138215 *Qty: 1 ACCELERATOR CONTROL LEVER -Valid for GD $286.82
Location: 34 Prev | Next Part: 101677 *Qty: 2 BEARING -Valid for GD $2.44
Location: 35 Prev | Next Part: 138218 *Qty: 1 PIN -Valid for GD $113.15
Location: 36 Prev | Next Part: 138217 *Qty: 1 LEVER SUPPORT -Valid for GD $10.30
Location: 37 Prev | Next Part: 10903221 *Qty: 1 SCREW -Valid for GD $0.90
Location: 38 Prev | Next Part: 102741 *Qty: 1 NUT -Valid for GD $0.90
Location: 39 Prev | Next Part: 102948 *Qty: 2 NUT -Valid for GD $0.90
Location: 40 Prev | Next Part: 171349 *Qty: 1 ACCELERATOR CONTROL CABLE -Valid after stock exhaustion of 164442 -Valid for GD $37.07
Location: 41 Prev | Next Part: 10123811 *Qty: 1 BALL JOINT HEAD -Valid for GD $25.81
Location: 42 Prev | Next Part: 15896470 *Qty: 1 NUT -Valid for GD $0.90
Location: 43 Prev | Next Part: 174001 *Qty: 1 CLIP -Valid for GD $0.90
Location: 44 Prev | Next Part: 138214 *Qty: 1 ACCELERATOR CONTROL SPRAG -Valid for GD $14.41
Location: 45 Prev | Next Part: 173999 *Qty: 1 BALL JOINT HEAD -Valid for GD $8.40
Location: 46 Prev | Next Part: 15896470 *Qty: 1 NUT -Valid for GD $0.90
Location: 47 Prev | Next Part: 10123911 *Qty: 1 BALL JOINT HEAD -Valid for GD $31.50
Location: 48 Prev | Next Part: 105586 *Qty: 1 NUT -Valid for GD $5.54
Location: 49 Prev | Next Part: 174001 *Qty: 1 CLIP -Valid for GD $0.90
Location: 50 Prev | Next Part: 10795101 *Qty: 1 SPLIT PIN -Valid for GD $0.90

* Quantity shown indicates the number of pieces used in the diagram.
