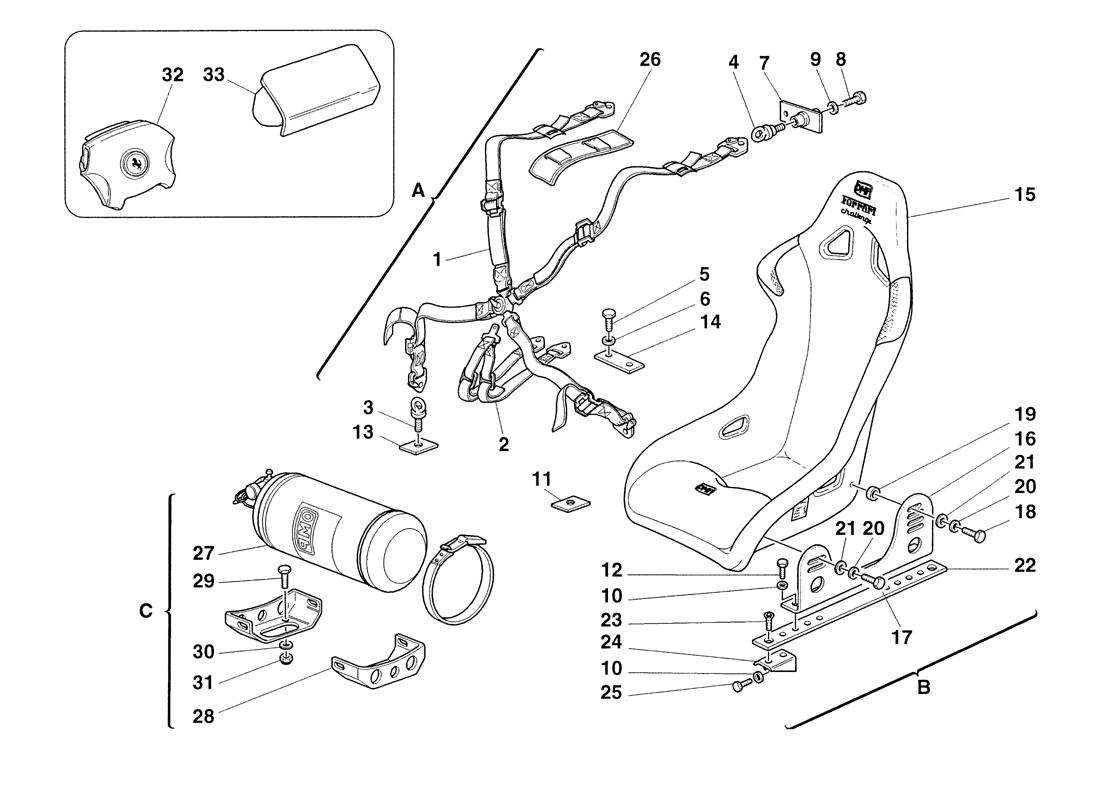

SEAT SAFETY BELTS - SEAT - FIRE EXTINGUISHER

Go to Split View

SEAT SAFETY BELTS - SEAT - FIRE EXTINGUISHER

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 145245 *Qty: 1 Extinguisher kit complete with supports and fittings
C on Picture
Call
Location: - Prev | Next Part: 164778 *Qty: 1 Safety belt complete kit with fixings
A on Picture
Superseded
Location: - Prev | Next Part: 164777 *Qty: 1 Seat fix. kit
B on Picture
Call
Location: 1 Prev | Next Part: 164778 *Qty: 1 3"-4 fix. point safety belt
Parts supplied on request only with 164778 ass. no.
Superseded
Location: 2 Prev | Next Part: 164778 *Qty: 1 Reinforcement
Parts supplied on request only with 164778 ass. no.
Superseded
Location: 3 Prev | Next Part: 164778 *Qty: 1 Eyebolt
Parts supplied on request only with 164778 ass. no.
Superseded
Location: 4 Prev | Next Part: 164778 *Qty: 3 Eyebolt
Parts supplied on request only with 164778 ass. no.
Superseded
Location: 5 Prev | Next Part: 14306421 *Qty: 2 5th point fix. screw
Parts supplied on request only with 164778 ass. no.
Superseded
Location: 6 Prev | Next Part: 11198079 *Qty: 2 Curved spring washer
Parts supplied on request only with 164778 ass. no.
Superseded
Location: 6 Prev | Next Part: 164781 *Qty: 1 Belt plate assy $210.68
Location: 7 Prev | Next Part: 164781 *Qty: 2 Upper bracket
Parts supplied on request only with 164781 ass. no.
$210.68
Location: 8 Prev | Next Part: 15970524 *Qty: 2 Screw
Parts supplied on request only with 164781 ass. no.
Call
Location: 9 Prev | Next Part: 15970524 *Qty: 2 Spring washer
Parts supplied on request only with 164781 ass. no.
Call
Location: 10 Prev | Next Part: 11198079 *Qty: 6 Tapered spring washer
Parts supplied on request only with 164781 ass. no.
Superseded
Location: 11 Prev | Next Part: 11198079 *Qty: 1 Outside fix. plate
Parts supplied on request only with 164781 ass. no.
Superseded
Location: 12 Prev | Next Part: 16043421 *Qty: 4 Seat fastening screw
Parts supplied on request only with 164781 ass. no.
Superseded
Location: 13 Prev | Next Part: 16043421 *Qty: 1 Left inside fix. plate
Parts supplied on request only with 164781 ass. no.
Superseded
Location: 14 Prev | Next Part: 16043421 *Qty: 1 Fix. plate
Parts supplied on request only with 164781 ass. no.
Superseded
Location: 15 Prev | Next Part: 166888 *Qty: 1 Seat $1,917.87
Location: 16 Prev | Next Part: 164777 *Qty: 1 Leftsrat bracket
Parts supplied on request only with 164777 ass. no.
Call
Location: 16 Prev | Next Part: 164777 *Qty: 1 Right seat bracket
Parts supplied on request only with 164777 ass. no.
Call
Location: 17 Prev | Next Part: 16043421 *Qty: 2 Screw
Parts supplied on request only with 164777 ass. no.
Superseded
Location: 18 Prev | Next Part: 16043821 *Qty: 2 Screw
Parts supplied on request only with 164777 ass. no.
Superseded
Location: 19 Prev | Next Part: 16043821 *Qty: 2 Spacer
Parts supplied on request only with 164777 ass. no.
Superseded
Location: 20 Prev | Next Part: 63285300 *Qty: 4 Spring washer
Parts supplied on request only with 164777 ass. no.
Call
Location: 21 Prev | Next Part: 11198079 *Qty: 4 Tapered spring washer
Parts supplied on request only with 164777 ass. no.
Superseded
Location: 22 Prev | Next Part: 11198079 *Qty: 1 Left thread. guide
Parts supplied on request only with 164777 ass. no.
Superseded
Location: 22 Prev | Next Part: 11198079 *Qty: 1 Right thread. guide
Parts supplied on request only with 164777 ass. no.
Superseded
Location: 23 Prev | Next Part: 14441921 *Qty: 4 Screw
Parts supplied on request only with 164777 ass. no.
$0.90
Location: 24 Prev | Next Part: 14441921 *Qty: 1 Left inside fix. bracket
Parts supplied on request only with 164777 ass. no.
$0.90
Location: 24 Prev | Next Part: 14441921 *Qty: 1 Right inside fix. bracket
Parts supplied on request only with 164777 ass. no.
$0.90
Location: 25 Prev | Next Part: 14306334 *Qty: 2 Screw
Parts supplied on request only with 164777 ass. no.
Superseded
Location: 26 Prev | Next Part: 166889 *Qty: 2 Protective cushion for belt (on request) $98.81
Location: 27 Prev | Next Part: 145245 *Qty: 0 Extinguisher
Parts supplied on request only with 145245 ass
Call
Location: 28 Prev | Next Part: 145245 *Qty: 2 Extinguisher bracket
Parts supplied on request only with 145245 ass
Call
Location: 29 Prev | Next Part: 10902421 *Qty: 4 Screw
Parts supplied on request only with 145245 ass
Superseded
Location: 30 Prev | Next Part: 14496401 *Qty: 8 Plane spring washer
Parts supplied on request only with 145245 ass
Superseded
Location: 31 Prev | Next Part: 12575411 *Qty: 4 Nut
Parts supplied on request only with 145245 ass
Superseded
Location: 32 Prev | Next Part: 65754600 *Qty: 1 Driver side air-bag cover Call
Location: 33 Prev | Next Part: 65754500 *Qty: 1 Passenger side air-bag cover Call

* Quantity shown indicates the number of pieces used in the diagram.
