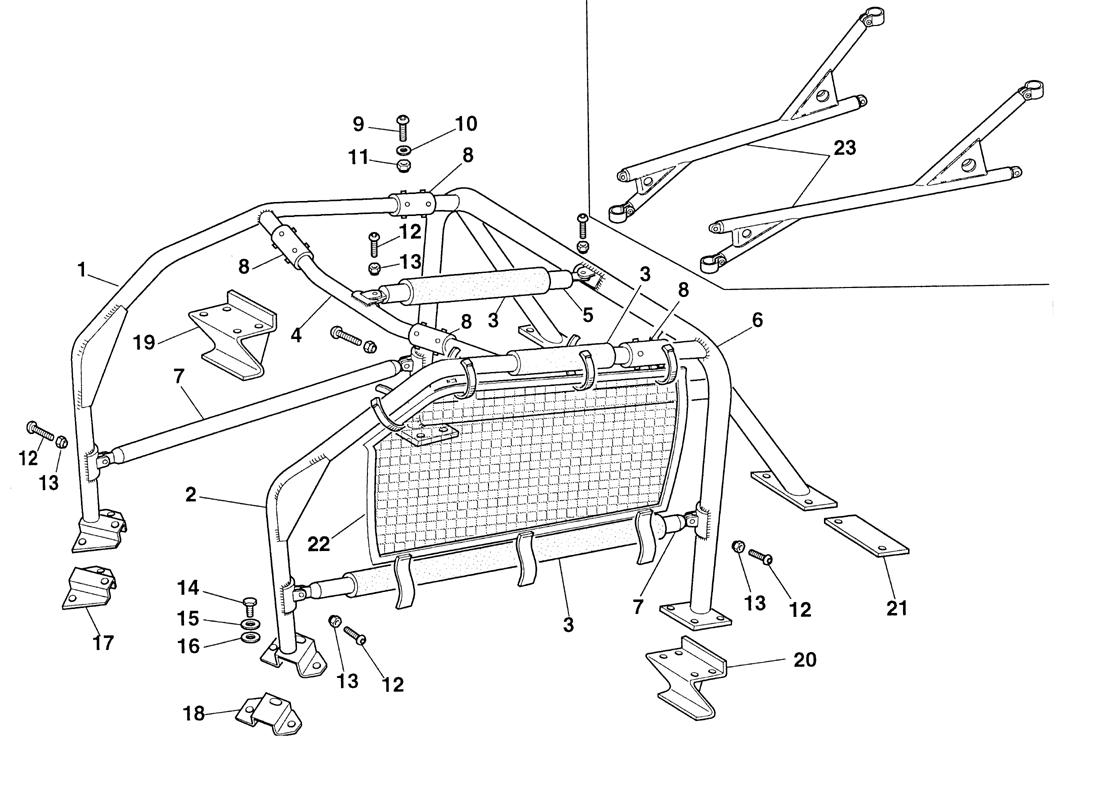

ROLL BAR

ROLL BAR

Location Part # Quantity* Description Price Add To Cart
- 62968900 1 LH drive roll bar assembly (without brackets) Unavailable
- 62975300 1 RH drive roll bar assembly (without brackets) Unavailable
1 62975300 1 Right cross member
Parts supplied on request only with 62968900 and 62975300 ass. no.
Unavailable
2 62975300 1 Left cross member
Parts supplied on request only with 62968900 and 62975300 ass. no.
Unavailable
3 64762400 1 Rubber protection pipe
Supplied in meter - Parts supplied on request only with 62968900 and 62975300 ass. no.
$83.07
4 64762400 1 Front cross member
Parts supplied on request only with 62968900 and 62975300 ass. no.
$83.07
5 64762400 1 Top cross member
Parts supplied on request only with 62968900 and 62975300 ass. no.
$83.07
6 64762400 1 Main frame rib for left drive
Parts supplied on request only with 62968900 and 62975300 ass. no.
$83.07
6 64762400 1 Main frame rib for right drive
Parts supplied on request only with 62968900 and 62975300 ass. no.
$83.07
7 62974600 1 Door cross member set
Parts supplied on request only with 62968900 and 62975300 ass. no.
$435.35
8 62974600 4 Sleeve
Parts supplied on request only with 62968900 and 62975300 ass. no.
$435.35
9 62974600 16 Socket head screw M8 x 1.25 x 55
Parts supplied on request only with 62968900 and 62975300 ass. no.
$435.35
10 13550301 16 Plane spring washer
Parts supplied on request only with 62968900 and 62975300 ass. no.
Unavailable
11 13550301 16 Self-locking nut M8 x 1.25
Parts supplied on request only with 62968900 and 62975300 ass. no.
Unavailable
12 13550301 6 Socket head screw M10 x 1.5 x 40
Parts supplied on request only with 62968900 and 62975300 ass. no.
Unavailable
13 13550301 6 Self-locking nut M10 x 1.5
Parts supplied on request only with 62968900 and 62975300 ass. no.
Unavailable
14 14306324 18 Screw
Parts supplied on request only with 62968900 and 62975300 ass. no.
$0.90
15 11198071 18 Curved spring washer
Parts supplied on request only with 62968900 and 62975300 ass. no.
Superseded
16 13550301 18 Plane spring washer
Parts supplied on request only with 62968900 and 62975300 ass. no.
Unavailable
16 62965200 1 Roll bar fixing plates assembly Unavailable
17 62965200 1 Right reinforced plate
Parts supplied on request only with 62965200 ass. no.
Unavailable
18 62965200 1 Left reinforced plate
Parts supplied on request only with 62965200 ass. no.
Unavailable
19 62965200 1 Right frame reinforced housing
Parts supplied on request only with 62965200 ass. no.
Unavailable
20 62965200 1 Left frame reinforced housing
Parts supplied on request only with 62965200 ass. no.
Unavailable
21 62965200 2 Reinforced plate
Parts supplied on request only with 62965200 ass. no.
Unavailable
22 170908 1 Driver''s protecting wire net $549.24
23 70000917 1 Reinforced side bar kit $593.08

* Quantity shown indicates the number of pieces used in the diagram.
