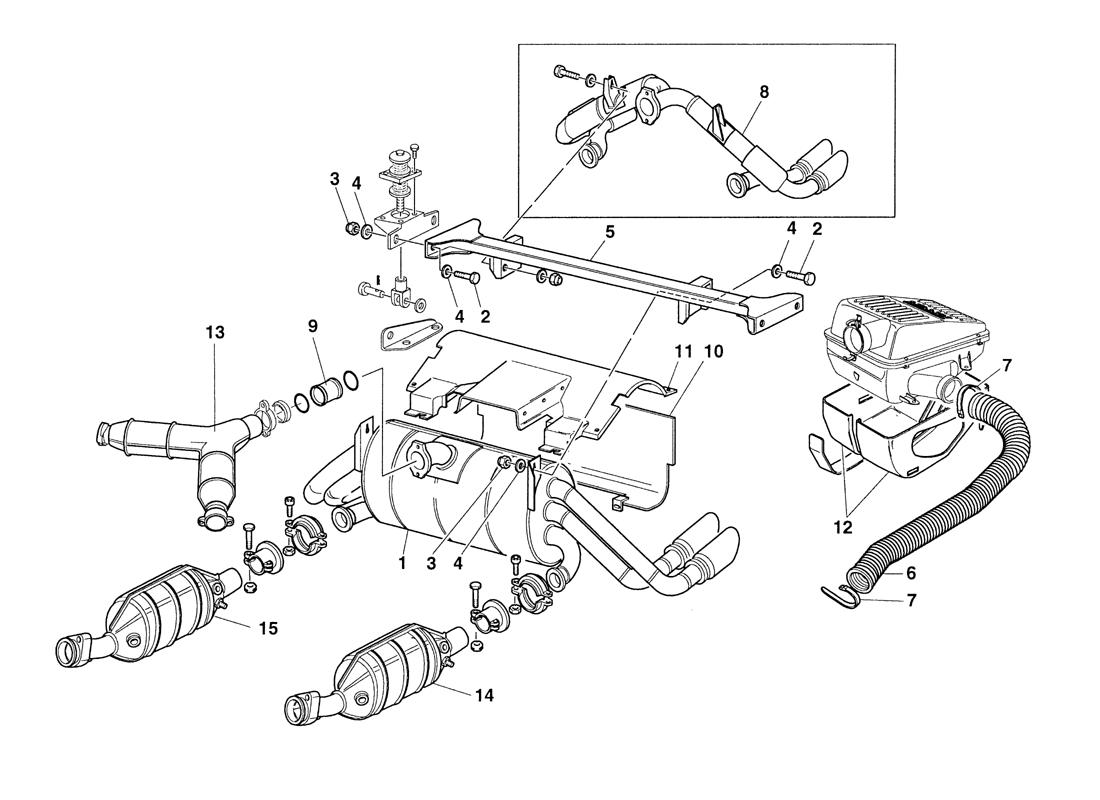

EXHAUST SYSTEM - AIR INTAKE

Go to Split View

EXHAUST SYSTEM - AIR INTAKE

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 175143 *Qty: 1 Left air intake shield $647.53
Location: 1 Prev | Next Part: 164783 *Qty: 1 Exhaust silencer $4,499.46
Location: 2 Prev | Next Part: 16043224 *Qty: 8 Screw $0.90
Location: 3 Prev | Next Part: 133989 *Qty: 8 Nut $0.90
Location: 4 Prev | Next Part: 13550301 *Qty: 16 Spring washer $0.90
Location: 5 Prev | Next Part: 166893 *Qty: 1 Cross member $592.57
Location: 6 Prev | Next Part: 164782 *Qty: 2 Air intake pipe $555.43
Location: 7 Prev | Next Part: 122890 *Qty: 4 Clamp $2.07
Location: 8 Prev | Next Part: 167003 *Qty: 1 Special exhaust silencer (for tracks without noise limits) Call
Location: 9 Prev | Next Part: 170683 *Qty: 1 Spacer Call
Location: 10 Prev | Next Part: 65358300 *Qty: 1 Rear heat shield Call
Location: 11 Prev | Next Part: 153569 *Qty: 1 Upper heat shield $688.70
Location: 12 Prev | Next Part: 175142 *Qty: 1 Right air intake shield $647.53
Location: 13 Prev | Next Part: 166581 *Qty: 1 By-pass pipe $1,621.31
Location: 14 Prev | Next Part: 159946 *Qty: 1 L.H. catalyst (after exhaustion use no. 178291) Call
Location: 15 Prev | Next Part: 159947 *Qty: 1 R.H. catalyst (after exhaustion use no. 178292) Call

* Quantity shown indicates the number of pieces used in the diagram.
