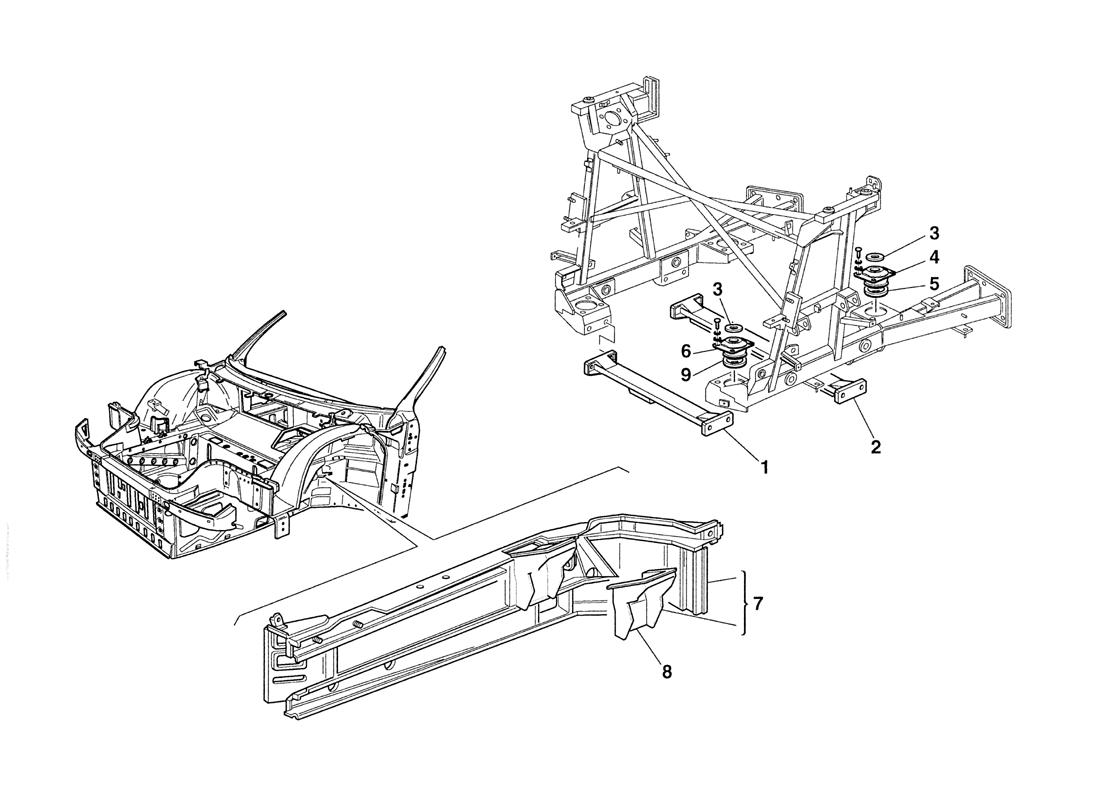

ENGINE SUPPORTS - CHASSIS AND BODY ELEMENTS

Go to Split View

ENGINE SUPPORTS - CHASSIS AND BODY ELEMENTS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 65095200 *Qty: 1 Rear cross member $645.57
Location: 2 Prev | Next Part: 65095100 *Qty: 1 Front cross member $1,000.77
Location: 3 Prev | Next Part: 132268 *Qty: 4 Plate Call
Location: 4 Prev | Next Part: 168358 *Qty: 2 Engine supporting pad $188.70
Location: 5 Prev | Next Part: 170189 *Qty: 2 Engine supporting spacer $40.12
Location: 6 Prev | Next Part: 159423 *Qty: 2 Gearbox supporting pad $177.05
Location: 7 Prev | Next Part: 65128800 *Qty: 1 Complete left side (for LH drive) $978.42
Location: 7 Prev | Next Part: 65129000 *Qty: 1 Complete left side (for RH drive) $1,205.25
Location: 7 Prev | Next Part: 65128700 *Qty: 1 Complete right side (for LH drive) Call
Location: 7 Prev | Next Part: 65128900 *Qty: 1 Complete right side (for RH drive) $932.86
Location: 8 Prev | Next Part: 65128500 *Qty: 1 Left shock-absorber support $649.01
Location: 8 Prev | Next Part: 65128400 *Qty: 1 Right shock-absorber support Call
Location: 9 Prev | Next Part: 170188 *Qty: 2 Gearbox supporting spacer $40.12

* Quantity shown indicates the number of pieces used in the diagram.
