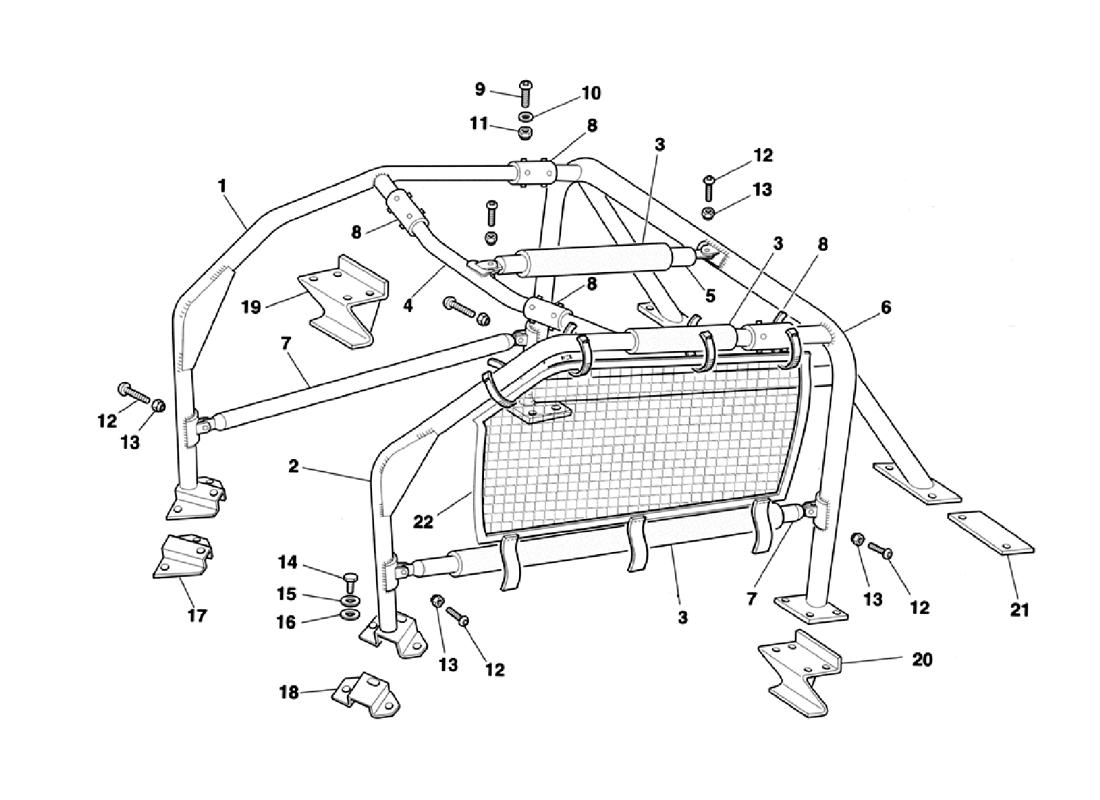

ROLL BAR

ROLL BAR

Location Part # Quantity* Description Price Add To Cart
1 62968900 1 L.H. steering roll bar assembly
Without brackets
Unavailable
1 - 1 R.H. cross member
Parts supplied on request only with 62968900 and 62975300 ass. no.
Unavailable
1 62975300 1 R.H. steering roll bar assembly
Without brackets
Unavailable
2 - 1 L.H. cross member
Parts supplied on request only with 62968900 and 62975300 ass. no.
Unavailable
3 64762400 1 Rubber protection pipe
Parts supplied on request only with 62968900 and 62975300 ass. no. - Supplied in meters
Unavailable
4 - 1 Front cross member
Parts supplied on request only with 62968900 and 62975300 ass. no.
Unavailable
5 - 1 Top cross member
Parts supplied on request only with 62968900 and 62975300 ass. no.
Unavailable
6 - 1 Main frame rib for L.H. steering
Parts supplied on request only with 62968900 and 62975300 ass. no.
Unavailable
6 - 1 Main frame rib for R.H. steering
Parts supplied on request only with 62968900 and 62975300 ass. no.
Unavailable
7 62974600 1 Door cross member set
Parts supplied on request only with 62968900 and 62975300 ass. no.
$435.35
8 - 4 Sleeve
Parts supplied on request only with 62968900 and 62975300 ass. no.
Unavailable
9 - 16 Screw
Parts supplied on request only with 62968900 and 62975300 ass. no.
Unavailable
10 13550301 16 Washer
Parts supplied on request only with 62968900 and 62975300 ass. no.
Unavailable
11 - 16 Nut
Parts supplied on request only with 62968900 and 62975300 ass. no.
Unavailable
12 - 6 Screw
Parts supplied on request only with 62968900 and 62975300 ass. no.
Unavailable
13 - 6 Nut
Parts supplied on request only with 62968900 and 62975300 ass. no.
Unavailable
14 14306324 18 Screw
Parts supplied on request only with 62968900 and 62975300 ass. no.
$0.90
15 11198071 18 Washer
Parts supplied on request only with 62968900 and 62975300 ass. no.
Superseded
16 62965200 1 Roll bar fixing plates assembly Unavailable
16 13550301 18 Washer
Parts supplied on request only with 62968900 and 62975300 ass. no.
Unavailable
17 - 1 (2) R.H. reinforced plate
Parts supplied on request only with 62965200 as. no.
Unavailable
18 - 1 (2) L.H. reinforced plate
Parts supplied on request only with 62965200 as. no.
Unavailable
19 - 1 (2) R.H. frame reinforced housing
Parts supplied on request only with 62965200 as. no.
Unavailable
20 - 1 (2) L.H. frame reinforced housing
Parts supplied on request only with 62965200 as. no.
Unavailable
21 - 2 (2) Reinforced plate
Parts supplied on request only with 62965200 as. no.
Unavailable
22 170908 1 Driver''s protecting wire net Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
