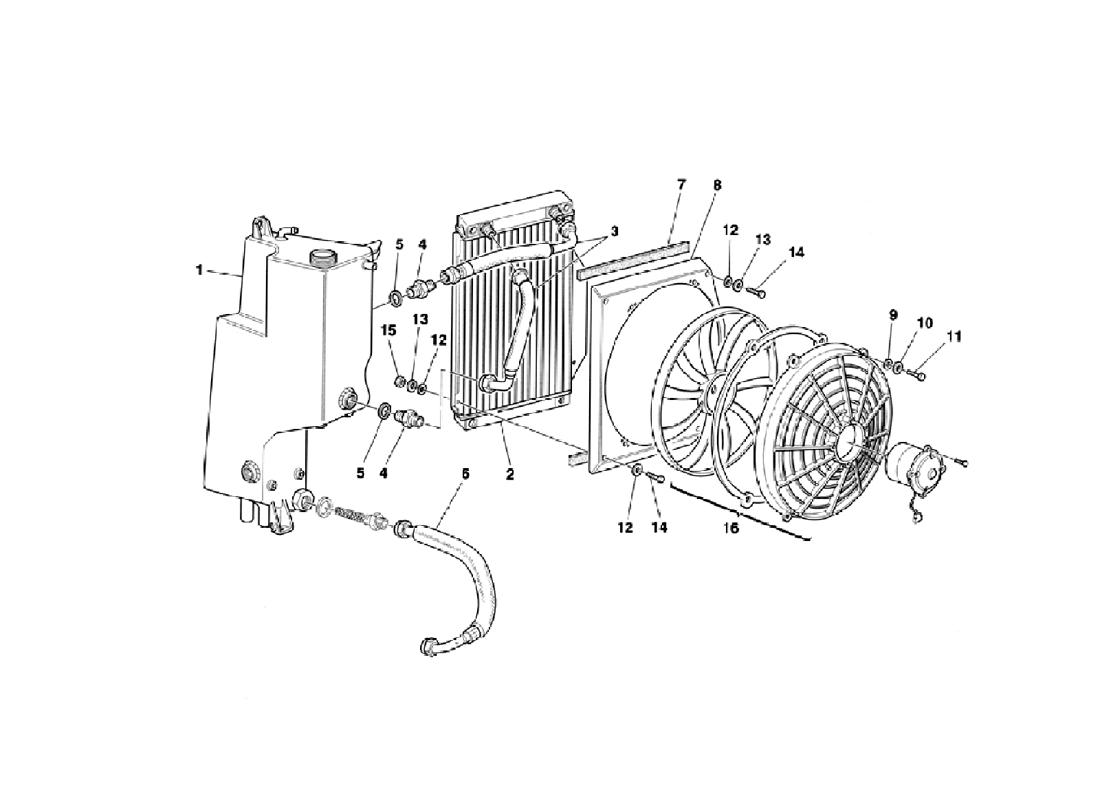

LUBRICATION

Go to Split View

LUBRICATION

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 166666 *Qty: 1 Oil tank Call
Location: 2 Prev | Next Part: 166665 *Qty: 1 Oil radiator $1,528.02
Location: 3 Prev | Next Part: 141820 *Qty: 2 Tank-radiator conn. pipe Call
Location: 4 Prev | Next Part: 145085 *Qty: 2 Connector $25.63
Location: 5 Prev | Next Part: 144485 *Qty: 2 Gasket $28.20
Location: 6 Prev | Next Part: 166000 *Qty: 1 Pump-tank conn. pipe $822.58
Location: 7 Prev | Next Part: 170484 *Qty: 2 Gasket $2.92
Location: 8 Prev | Next Part: 170187 *Qty: 1 Radiator hood $740.64
Location: 9 Prev | Next Part: 12637824 *Qty: 4 Washer $0.90
Location: 10 Prev | Next Part: 127493 *Qty: 4 Washer Superseded
Location: 11 Prev | Next Part: 10977824 *Qty: 4 Screw $0.90
Location: 12 Prev | Next Part: 10519424 *Qty: 12 Washer Call
Location: 13 Prev | Next Part: 127494 *Qty: 8 Washer $0.90
Location: 14 Prev | Next Part: 10902224 *Qty: 8 Screw $0.90
Location: 15 Prev | Next Part: 15896214 *Qty: 4 Nut $0.90
Location: 16 Prev | Next Part: 170443 *Qty: 1 Cooling fan ass. Superseded

* Quantity shown indicates the number of pieces used in the diagram.
