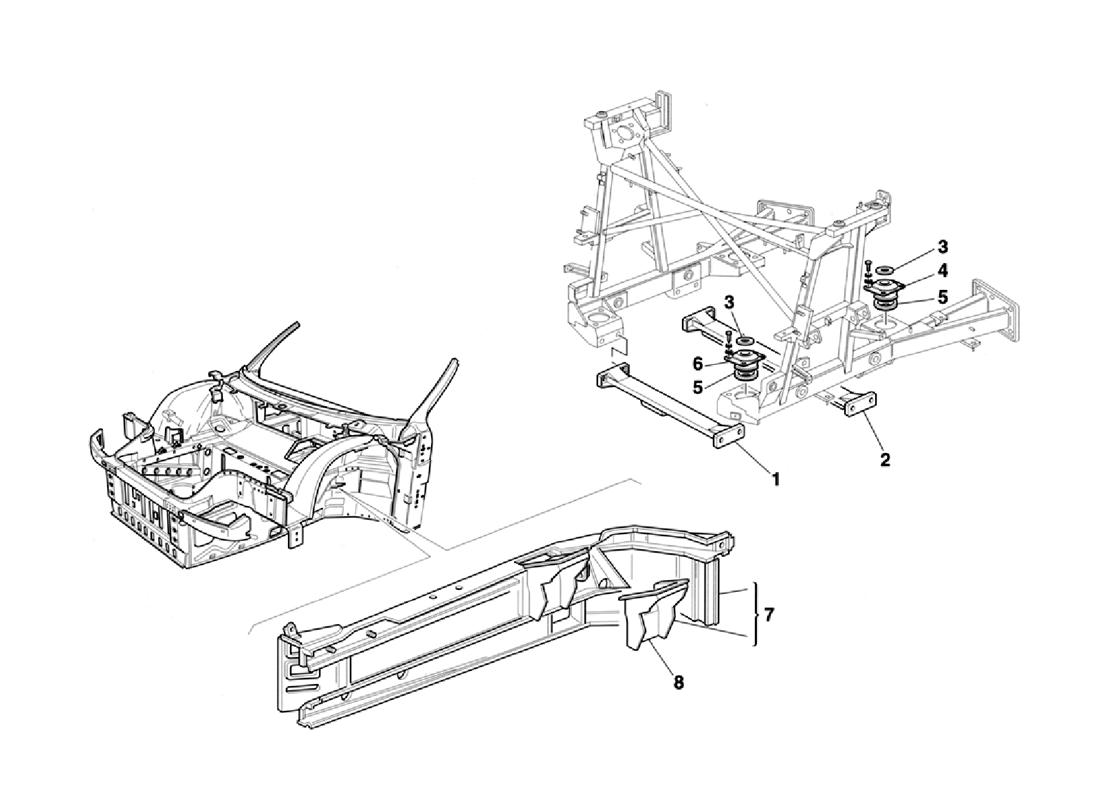

ENGINE SUPPORTS - CHASSIS AND BODY ELEMENTS

Go to Split View

ENGINE SUPPORTS - CHASSIS AND BODY ELEMENTS

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 65129000 *Qty: 1 Complete left side
For RH drive
$1,205.25
Location: - Prev | Next Part: 65128900 *Qty: 1 Complete right side
For RH drive
$932.86
Location: - Prev | Next Part: 65128700 *Qty: 1 Complete right side
For LH drive
Call
Location: 1 Prev | Next Part: 65095200 *Qty: 1 Rear cross member $645.57
Location: 2 Prev | Next Part: 65095100 *Qty: 1 Front cross member $1,000.77
Location: 3 Prev | Next Part: 132268 *Qty: 4 Plate Call
Location: 4 Prev | Next Part: 168358 *Qty: 2 Engine supporting pad $188.71
Location: 5 Prev | Next Part: 170188 *Qty: 4 Spacer $40.14
Location: 6 Prev | Next Part: 159423 *Qty: 2 Gearbox supporting pad $177.04
Location: 8 Prev | Next Part: 65128400 *Qty: 1 Right shock absorber support Call
Location: 8 Prev | Next Part: 65128500 *Qty: 1 Left shock absorber support $649.01

* Quantity shown indicates the number of pieces used in the diagram.
