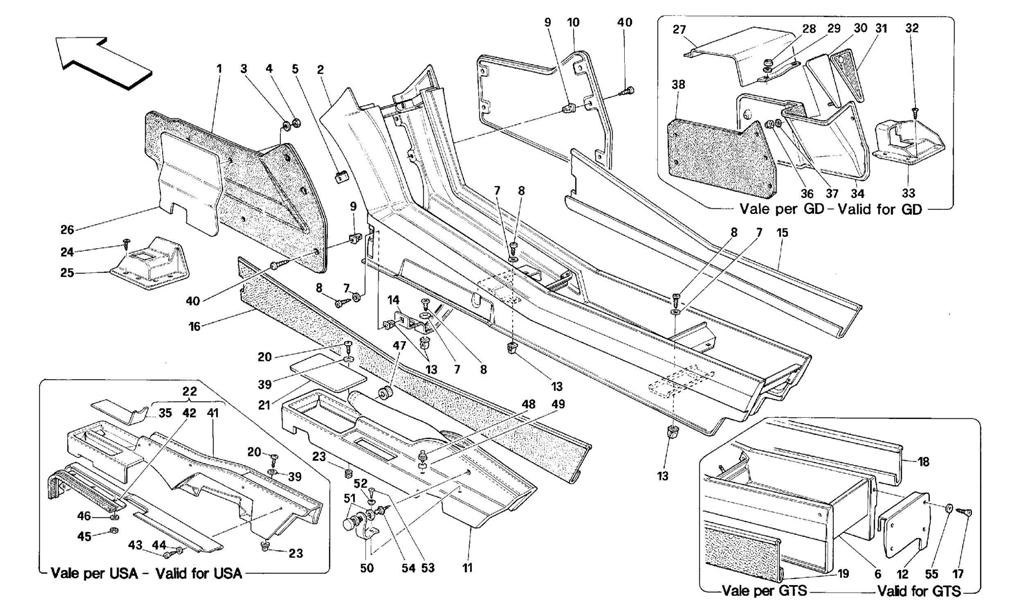

TUNNEL - FRAMEWORK AND TRIMS

Go to Split View

TUNNEL - FRAMEWORK AND TRIMS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 63377100 *Qty: 1 COVERED L.H. FRONT FACING-Black
-Not for RHD
$260.73
Location: 1 Prev | Next Part: 63377600 *Qty: 1 COVERED L.H. FRONT FACING-Red
-Not for RHD
$249.19
Location: 1 Prev | Next Part: 63378800 *Qty: 1 COVERED L.H. FRONT FACING-Beaver
-Not for RHD
Call
Location: 1 Prev | Next Part: 63378900 *Qty: 1 COVERED L.H. FRONT FACING-Blue
-Not for RHD
Call
Location: 1 Prev | Next Part: 63379000 *Qty: 1 COVERED L.H. FRONT FACING-Dark brown
-Not for RHD
Call
Location: 2 Prev | Next Part: 636277.. *Qty: 1 COVERED TUNNEL
-Not for GTS e RHD
Call
Location: 2 Prev | Next Part: 636280.. *Qty: 1 R.H. SIDE UPHOLSTERY
-Not for GTS
Call
Location: 2 Prev | Next Part: 636282.. *Qty: 1 L.H. SIDE UPHOLSTERY
-Not for GTS
Call
Location: 2 Prev | Next Part: 636294.. *Qty: 1 COVERED TUNNEL
-Valid for RHD
-Not for GTS
Call
Location: 3 Prev | Next Part: 12637824 *Qty: 5 WASHER
-Not for RHD
$0.90
Location: 4 Prev | Next Part: 10794011 *Qty: 5 NUT
-Not for RHD
$0.90
Location: 5 Prev | Next Part: 14189876 *Qty: 4 BRACKET $1.70
Location: 6 Prev | Next Part: 632850.. *Qty: 1 COVERED TUNNEL
-Valid for GTS-
-Not for RHD
Call
Location: 6 Prev | Next Part: 632866.. *Qty: 1 COVERED TUNNEL
-Valid for GTS RHD
Call
Location: 6 Prev | Next Part: 632962.. *Qty: 1 R.H. SIDE UPHOLSTERY
-Valid for GTS
Call
Location: 6 Prev | Next Part: 632963.. *Qty: 1 L.H. SIDE UPHOLSTERY
-Valid for GTS
Call
Location: 7 Prev | Next Part: 12638177 *Qty: 6 WASHER Superseded
Location: 8 Prev | Next Part: 15688375 *Qty: 6 SCREW $0.90
Location: 9 Prev | Next Part: 14202782 *Qty: 5 BLOCK $0.90
Location: 10 Prev | Next Part: 63376900 *Qty: 1 COVERED R.H. FRONT FACING-Blue
-Not for RHD
Call
Location: 10 Prev | Next Part: 63377000 *Qty: 1 COVERED R.H. FRONT FACING-Dark brown
-Not for RHD
Call
Location: 10 Prev | Next Part: 63376600 *Qty: 1 COVERED R.H. FRONT FACING-Black
-Not for RHD
$172.14
Location: 10 Prev | Next Part: 63376700 *Qty: 1 COVERED R.H. FRONT FACING-Beaver
-Not for RHD
$232.88
Location: 10 Prev | Next Part: 63376800 *Qty: 1 COVERED R.H. FRONT FACING-Red
-Not for RHD
Call
Location: 11 Prev | Next Part: 642778.. *Qty: 1 COVERED HAND BRAKE CONSOLE-Vale per Spider
-Not for USA e RHD
Call
Location: 11 Prev | Next Part: 635811.. *Qty: 1 COVERED HAND BRAKE CONSOLE
-Not for Spider and RHD
Call
Location: 11 Prev | Next Part: 643047.. *Qty: 1 COVERED HAND BRAKE CONSOLE
-Valid for Spider RHD
Call
Location: 11 Prev | Next Part: 635813.. *Qty: 1 UPHOLSTERY
-Not for USA and RHD
Call
Location: 11 Prev | Next Part: 635827.. *Qty: 1 COVERED HAND BRAKE CONSOLE
-Valid for RHD
-Not for Spider
Call
Location: 11 Prev | Next Part: 635829.. *Qty: 1 UPHOLSTERY
-Valid for RHD
Call
Location: 12 Prev | Next Part: 633397.. *Qty: 1 COVERED REAR INSERT
-Valid for GTS
-Not for RHD
Call
Location: 12 Prev | Next Part: 633398.. *Qty: 0 LINING
-Valid for GTS-
-Not for RHD
Call
Location: 12 Prev | Next Part: 633410.. *Qty: 1 COVERED REAR INSERT
-Valid for GTS RHD
Call
Location: 12 Prev | Next Part: 633411.. *Qty: 0 LINING
-Valid for GTS RHD-
Call
Location: 13 Prev | Next Part: 14202782 *Qty: 6 BLOCK $0.90
Location: 14 Prev | Next Part: 62146900 *Qty: 1 TUNNEL FIXING BRACKET $4.93
Location: 17 Prev | Next Part: 15915807 *Qty: 4 SCREW
-Valid for GTS
$0.90
Location: 20 Prev | Next Part: 15688178 *Qty: 3 SCREW $2.24
Location: 21 Prev | Next Part: 626842.. *Qty: 1 HAND BRAKE CONSOLE CASING MOULDING
-Not for USA
Call
Location: 22 Prev | Next Part: 635832.. *Qty: 1 COVERED PARKING BRAKE CONSOLE WITH COVERED PROTECTION
-Valid for USA
Call
Location: 22 Prev | Next Part: 635835.. *Qty: 1 CONSOLE TRIM
-Valid for USA
Call
Location: 23 Prev | Next Part: 14115980 *Qty: 3 BLOCK $0.90
Location: 24 Prev | Next Part: 15914707 *Qty: 4 SCREW
-Not for RHD-
$0.90
Location: 25 Prev | Next Part: 62844600 *Qty: 1 ACCELERATOR PEDAL COVER
-Not for RHD
$301.40
Location: 26 Prev | Next Part: 62148700 *Qty: 1 PROTECTION FOR L.H. FRONT FACING FRAMEWORK
-Not for RHD
$37.53
Location: 27 Prev | Next Part: 63002600 *Qty: 1 ACCELERATOR PEDAL TRANSMISSION PROTECTION
-Valid for RHD
Call
Location: 28 Prev | Next Part: 102741 *Qty: 4 NUT
-Valid for RHD
$0.90
Location: 29 Prev | Next Part: 10519424 *Qty: 4 WASHER
-Valid for RHD
Call
Location: 30 Prev | Next Part: 63222500 *Qty: 1 BASE HOLDER
-Valid for RHD
$32.26
Location: 31 Prev | Next Part: 62986300 *Qty: 1 PILOT FOOT REST SUPPORT BASE
-Valid for RHD
$85.96
Location: 32 Prev | Next Part: 15914707 *Qty: 4 SCREW
-Valid for RHD
$0.90
Location: 33 Prev | Next Part: 63006900 *Qty: 1 A CCELERATOR PEDAL COVER
-Valid for RHD
$22.96
Location: 34 Prev | Next Part: 63557200 *Qty: 1 COVERED R.H. FRONT FACING-Black
-Valid for RHD
Call
Location: 34 Prev | Next Part: 63557300 *Qty: 1 COVERED R.H. FRONT FACING-Beaver
-Valid for RHD
Call
Location: 34 Prev | Next Part: 63557400 *Qty: 1 COVERED R.H. FRONT FACING-Red
-Valid for RHD
Call
Location: 34 Prev | Next Part: 63557500 *Qty: 1 COVERED R.H. FRONT FACING-Blue
-Valid for RHD
Call
Location: 34 Prev | Next Part: 63557600 *Qty: 1 COVERED R.H. FRONT FACING-Dark brown
-Valid for RHD
Call
Location: 35 Prev | Next Part: 633091.. *Qty: 1 HAND BRAKE CONSOLE CASING MOULDING
-Valid for USA
Call
Location: 36 Prev | Next Part: 62790300 *Qty: 2 NUT
-Valid for RHD
$0.90
Location: 37 Prev | Next Part: 12642801 *Qty: 2 WASHER
-Valid for RHD
$0.90
Location: 38 Prev | Next Part: 63558400 *Qty: 1 COVERED L.H. FRONT FACING-Dark brown
-Valid for RHD
Call
Location: 38 Prev | Next Part: 63558000 *Qty: 1 COVERED L.H. FRONT FACING-Black
-Valid for RHD
Call
Location: 38 Prev | Next Part: 63558100 *Qty: 1 COVERED L.H. FRONT FACING-Beaver
-Valid for RHD
Call
Location: 38 Prev | Next Part: 63558200 *Qty: 1 COVERED L.H. FRONT FACING-Red
-Valid for RHD
Call
Location: 38 Prev | Next Part: 63558300 *Qty: 1 COVERED L.H. FRONT FACING-Blue
-Valid for RHD
Call
Location: 39 Prev | Next Part: 12638177 *Qty: 3 WASHER Superseded
Location: 40 Prev | Next Part: 15687708 *Qty: 9 SCREW Call
Location: 41 Prev | Next Part: 635838.. *Qty: 1 COVERED PROTECTION
-Valid for USA
Call
Location: 41 Prev | Next Part: 635839.. *Qty: 1 UPHOLSTERY
-Valid for USA
Call
Location: 42 Prev | Next Part: 63309000 *Qty: 1 BRUSH
-Valid for USA
$112.43
Location: 43 Prev | Next Part: 15957201 *Qty: 5 SCREW
-Valid for USA
$0.90
Location: 44 Prev | Next Part: 14497701 *Qty: 5 WASHER
-Valid for USA
$0.90
Location: 45 Prev | Next Part: 16101711 *Qty: 4 NUT
-Valid for USA
$0.90
Location: 46 Prev | Next Part: 13577411 *Qty: 4 WASHER
-Valid for USA
$0.90
Location: 47 Prev | Next Part: 64277400 *Qty: 1 FIXING BUTTON
-Not for USA
$1.09
Location: 48 Prev | Next Part: 61632100 *Qty: 1 SCREW TAP
-Valid for Spider
-Not for USA
$5.00
Location: 49 Prev | Next Part: 64277200 *Qty: 1 SPACER
-Valid for Spider
-Not for USA
Call
Location: 50 Prev | Next Part: 64278000 *Qty: 1 BELT
-Valid for Spider
-Not for USA
Call
Location: 51 Prev | Next Part: 60727200 *Qty: 1 FEMALE BUTTON
-Valid for Spider
-Not for USA
Superseded
Location: 52 Prev | Next Part: 62823200 *Qty: 1 WASHER
-Valid for Spider
-Not for USA
$0.90
Location: 53 Prev | Next Part: 15914708 *Qty: 1 SCREW
-Valid for Spider
-Not for USA
$0.90
Location: 54 Prev | Next Part: 63961100 *Qty: 1 BUTTON
-Valid for Spider
-Not for USA
Call
Location: 55 Prev | Next Part: 12612207 *Qty: 4 WASHER
-Valid for GTS
Call

* Quantity shown indicates the number of pieces used in the diagram.
