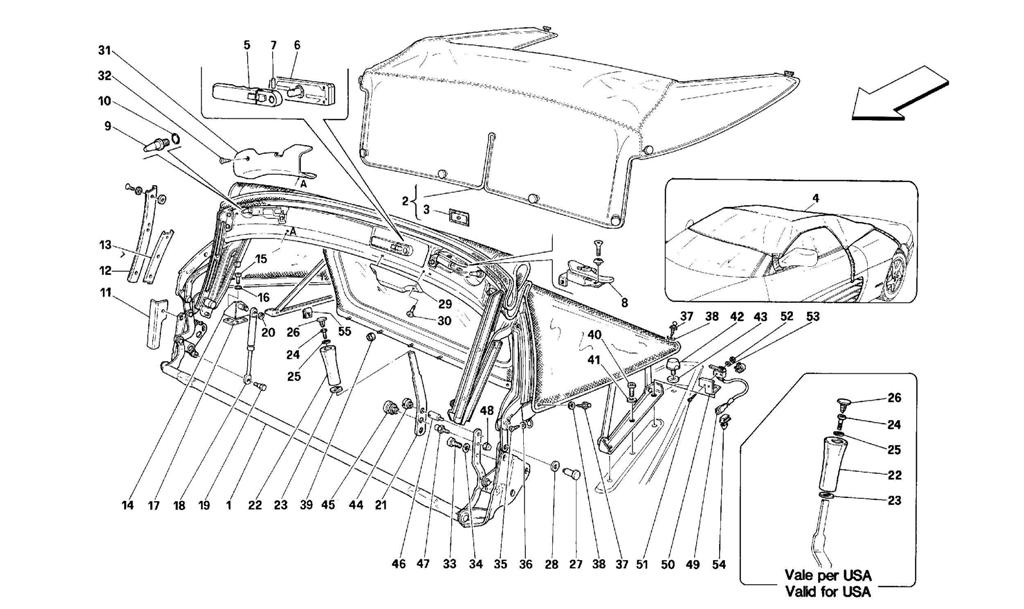

TOP -VALID FOR SPIDER-

Go to Split View

TOP -VALID FOR SPIDER-

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 64248900 *Qty: 1 COMPLETE TOP-Black-
-Not for USA and RHD
$11,436.90
Location: 1 Prev | Next Part: 64248950 *Qty: 1 COMPLETE TOP-Blue-
-Not for USA and RHD
$16,876.97
Location: 1 Prev | Next Part: 63639400 *Qty: 1 COMPLETE TOP-Black-
-Valid for USA
$11,436.90
Location: 1 Prev | Next Part: 63639450 *Qty: 1 COMPLETE TOP-Blue-
-Valid for USA
$16,876.97
Location: 1 Prev | Next Part: 64274900 *Qty: 1 COMPLETE TOP-Black-
-Valid for RHD
$12,453.26
Location: 1 Prev | Next Part: 64274950 *Qty: 1 COMPLETE TOP-Blue-
-Valid for RHD
$19,024.93
Location: 2 Prev | Next Part: 64289700 *Qty: 1 TOP COVER COMPLETE OF TOP COVER BAG
-Not for USA
$2,190.53
Location: 2 Prev | Next Part: 63961200 *Qty: 1 TOP COVER COMPLETE OF TOP COVER BAG
-Valid for USA
$5,500.84
Location: 3 Prev | Next Part: 63239500 *Qty: 1 BUTTON $18.00
Location: 4 Prev | Next Part: 63685100 *Qty: 1 TONNEAU COVER $2,532.11
Location: 5 Prev | Next Part: 63689000 *Qty: 1 HANDLE FOR TOP $194.37
Location: 6 Prev | Next Part: 63966100 *Qty: 1 COMPLETE CONTROL BLOCK BOX $1,013.97
Location: 7 Prev | Next Part: 63990900 *Qty: 1 PIN $17.61
Location: 8 Prev | Next Part: 63614100 *Qty: 1 L.H. TOP CLOSING HOOK $916.09
Location: 8 Prev | Next Part: 63614200 *Qty: 1 R.H. TOP CLOSING HOOK $916.09
Location: 9 Prev | Next Part: 64220200 *Qty: 2 CENTERING CONE $37.82
Location: 10 Prev | Next Part: 123622 *Qty: 2 O RING GASKET $1.91
Location: 11 Prev | Next Part: 63920500 *Qty: 1 R.H. PLATE SHIELD $16.46
Location: 11 Prev | Next Part: 63920600 *Qty: 1 L.H. PLATE SHIELD $16.46
Location: 12 Prev | Next Part: 63613200 *Qty: 1 R.H. FRONT RUBBER HOLDER PROFILE $203.38
Location: 12 Prev | Next Part: 63613400 *Qty: 1 L.H. FRONT RUBBER HOLDER PROFILE $203.38
Location: 13 Prev | Next Part: 63612700 *Qty: 1 R.H. REAR RUBBER HOLDER PROFILE $39.11
Location: 13 Prev | Next Part: 63612800 *Qty: 1 L.H. REAR RUBBER HOLDER PROFILE $39.11
Location: 14 Prev | Next Part: 63634200 *Qty: 1 L.H. GAS SPRING CONNECTION $63.21
Location: 14 Prev | Next Part: 63606300 *Qty: 1 R.H. GAS SPRING CONNECTION $50.27
Location: 15 Prev | Next Part: 60801600 *Qty: 8 SCREW $0.94
Location: 16 Prev | Next Part: 10569273 *Qty: 8 WASHER $0.90
Location: 17 Prev | Next Part: 63940900 *Qty: 2 THICKNESS $2.63
Location: 18 Prev | Next Part: 63606400 *Qty: 2 GAS SPRING $41.51
Location: 19 Prev | Next Part: 63614600 *Qty: 2 SCREW $15.40
Location: 20 Prev | Next Part: 11087876 *Qty: 2 FLEXIBLE RING $0.90
Location: 21 Prev | Next Part: 64249300 *Qty: 1 HANDLE LEVER
-Not for USA-
$582.24
Location: 22 Prev | Next Part: 63989900 *Qty: 1 TOP LIFTING HANDLE $302.07
Location: 23 Prev | Next Part: 63990100 *Qty: 1 HANDLE END PLATE $104.21
Location: 24 Prev | Next Part: 13272011 *Qty: 1 SCREW $0.90
Location: 25 Prev | Next Part: 10615274 *Qty: 1 WASHER $0.90
Location: 26 Prev | Next Part: 63929300 *Qty: 1 PLUG FOR HANDLE $0.90
Location: 27 Prev | Next Part: 63639500 *Qty: 2 PIN mm. 23 $27.19
Location: 27 Prev | Next Part: 63639600 *Qty: 4 PIN mm. 18 $18.82
Location: 27 Prev | Next Part: 63639700 *Qty: 8 PIN mm. 27 $28.39
Location: 27 Prev | Next Part: 63639800 *Qty: 10 PIN mm. 21 $27.19
Location: 27 Prev | Next Part: 63678400 *Qty: 4 PIN mm. 25 $144.86
Location: 27 Prev | Next Part: 63678500 *Qty: 2 PIN mm. 33 $26.66
Location: 28 Prev | Next Part: 63639900 *Qty: 28 WASHER, THICKNESS mm. 1,3 $3.41
Location: 28 Prev | Next Part: 63640000 *Qty: 34 WASHER, THICKNESS mm.1,8 $1.68
Location: 29 Prev | Next Part: 64243400 *Qty: 1 TOP LIFTING HANDLE $38.19
Location: 30 Prev | Next Part: 60702800 *Qty: 2 SCREW $1.29
Location: 31 Prev | Next Part: 64252900 *Qty: 1 R.H. LATERAL MOULDING $177.73
Location: 31 Prev | Next Part: 64254100 *Qty: 1 L.H. LATERAL MOULDING $185.61
Location: 32 Prev | Next Part: 15690678 *Qty: 2 SCREW mm. 13 Call
Location: 32 Prev | Next Part: 15909478 *Qty: 2 SCREW mm. 19 $0.90
Location: 33 Prev | Next Part: 63936600 *Qty: 6 SCREW $1.90
Location: 34 Prev | Next Part: 12642078 *Qty: 6 WASHER $1.25
Location: 35 Prev | Next Part: 15902678 *Qty: 2 SCREW $0.90
Location: 36 Prev | Next Part: 14496277 *Qty: 2 WASHER $0.97
Location: 37 Prev | Next Part: 61632100 *Qty: 6 SCREW TAP $5.00
Location: 38 Prev | Next Part: 61195300 *Qty: 6 WASHER Call
Location: 39 Prev | Next Part: 14058311 *Qty: 5 NUT $0.90
Location: 40 Prev | Next Part: 63936600 *Qty: 6 SCREW $1.90
Location: 41 Prev | Next Part: 12646778 *Qty: 6 WASHER $0.90
Location: 42 Prev | Next Part: 63238800 *Qty: 2 STOP BUFFER $18.87
Location: 43 Prev | Next Part: 62167200 *Qty: 2 WASHER $0.90
Location: 44 Prev | Next Part: 64372200 *Qty: 2 BUSHING
-Not for USA-
$11.20
Location: 45 Prev | Next Part: 60727200 *Qty: 1 FEMALE BUTTON
-Not for USA-
Superseded
Location: 46 Prev | Next Part: 64372100 *Qty: 2 PIN
-Not for USA-
$59.18
Location: 47 Prev | Next Part: 60084407 *Qty: 1 SCREW TAP
-Not for USA
$7.86
Location: 48 Prev | Next Part: 64372300 *Qty: 1 NUT
-Not for USA-
$5.24
Location: 49 Prev | Next Part: 154763 *Qty: 1 MICRO-SWITCH $69.12
Location: 50 Prev | Next Part: 63943900 *Qty: 1 MICRO-SWITCH FIXING BRACKET $9.10
Location: 51 Prev | Next Part: 63992900 *Qty: 2 SCREW $0.90
Location: 52 Prev | Next Part: 63693800 *Qty: 2 NUT $1.17
Location: 53 Prev | Next Part: 63693700 *Qty: 2 WASHER $0.90
Location: 54 Prev | Next Part: 144036 *Qty: 1 CLIP $0.90
Location: 55 Prev | Next Part: 14189874 *Qty: 2 CLIP FOR SCREW Call

* Quantity shown indicates the number of pieces used in the diagram.
