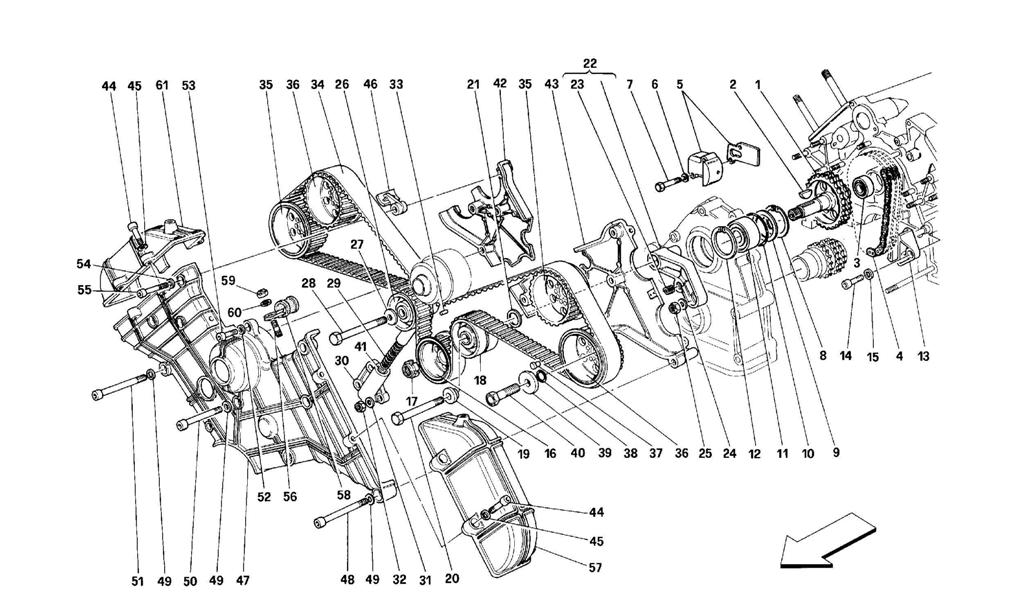

TIMING - CONTROLS

Go to Split View

TIMING - CONTROLS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 144489 *Qty: 1 DRIVEN GEAR $200.06
Location: 2 Prev | Next Part: 10206320 *Qty: 1 KEY $1.90
Location: 3 Prev | Next Part: 171177 *Qty: 1 BEARING $21.33
Location: 4 Prev | Next Part: 132968 *Qty: 1 TIMING CONTROL CHAIN $78.21
Location: 5 Prev | Next Part: 147338 *Qty: 1 CHAIN TIGHTENER $675.00
Location: 6 Prev | Next Part: 11197771 *Qty: 2 WASHER Superseded
Location: 7 Prev | Next Part: 10903024 *Qty: 2 SCREW $0.90
Location: 8 Prev | Next Part: 11060576 *Qty: 1 SEEGER RING $1.88
Location: 9 Prev | Next Part: 133377 *Qty: 1 WASHER $1.13
Location: 10 Prev | Next Part: 136140 *Qty: 1 O RING GASKET $1.57
Location: 11 Prev | Next Part: 170787 *Qty: 1 BEARING $139.00
Location: 12 Prev | Next Part: 11060576 *Qty: 1 SEEGER RING $1.88
Location: 13 Prev | Next Part: 143782 *Qty: 1 GUIDE SHOE $117.49
Location: 14 Prev | Next Part: 14305720 *Qty: 2 SCREW Superseded
Location: 15 Prev | Next Part: 12604279 *Qty: 2 WASHER $0.90
Location: 16 Prev | Next Part: 144488 *Qty: 1 DRIVING GEAR $466.44
Location: 17 Prev | Next Part: 104919 *Qty: 1 RING NUT $5.85
Location: 18 Prev | Next Part: 145807 *Qty: 1 L.H. PULLEY Call
Location: 19 Prev | Next Part: 133385 *Qty: 1 BUSHING $43.64
Location: 20 Prev | Next Part: 134663 *Qty: 1 SCREW $1.38
Location: 21 Prev | Next Part: 137481 *Qty: 1 WASHER $1.62
Location: 22 Prev | Next Part: 147132 *Qty: 1 BRACKET $475.00
Location: 23 Prev | Next Part: 13525770 *Qty: 1 THREADED INSERT $0.90
Location: 24 Prev | Next Part: 12601374 *Qty: 2 WASHER $0.90
Location: 25 Prev | Next Part: 16104411 *Qty: 2 NUT $0.90
Location: 26 Prev | Next Part: 149791 *Qty: 1 R.H. PULLEY Call
Location: 27 Prev | Next Part: 12626224 *Qty: 1 WASHER $0.90
Location: 28 Prev | Next Part: 134665 *Qty: 1 SCREW $0.90
Location: 29 Prev | Next Part: 148356 *Qty: 1 SPRING $230.66
Location: 30 Prev | Next Part: 137632 *Qty: 1 BRACKET $437.91
Location: 31 Prev | Next Part: 12601374 *Qty: 3 WASHER $0.90
Location: 32 Prev | Next Part: 104030 *Qty: 3 NUT $0.90
Location: 33 Prev | Next Part: 10486110 *Qty: 1 PIN $12.74
Location: 34 Prev | Next Part: 132843 *Qty: 1 TIMING CONTROL BELT $43.60
Location: 35 Prev | Next Part: 136229 *Qty: 2 DRIVEN GEAR $346.38
Location: 36 Prev | Next Part: 136230 *Qty: 2 DRIVEN GEAR $663.40
Location: 37 Prev | Next Part: 106203 *Qty: 4 DOWEL $8.60
Location: 38 Prev | Next Part: 114808 *Qty: 4 O RING GASKET $5.50
Location: 39 Prev | Next Part: 117274 *Qty: 4 WASHER $4.23
Location: 40 Prev | Next Part: 146540 *Qty: 4 SCREW $8.54
Location: 41 Prev | Next Part: 12638601 *Qty: 1 WASHER $0.90
Location: 42 Prev | Next Part: 134217 *Qty: 1 R.H. REAR SHIELD $357.03
Location: 43 Prev | Next Part: 134218 *Qty: 1 L.H. REAR SHIELD $349.00
Location: 44 Prev | Next Part: 14305321 *Qty: 8 SCREW $0.90
Location: 45 Prev | Next Part: 12601274 *Qty: 8 WASHER $0.90
Location: 46 Prev | Next Part: 133824 *Qty: 2 GUIDE SHOE Call
Location: 47 Prev | Next Part: 134216 *Qty: 1 FRONT SHIELD Call
Location: 48 Prev | Next Part: 14359521 *Qty: 3 SCREW $1.34
Location: 49 Prev | Next Part: 12601374 *Qty: 8 WASHER $0.90
Location: 50 Prev | Next Part: 14308921 *Qty: 2 SCREW $0.90
Location: 51 Prev | Next Part: 14309021 *Qty: 3 SCREW $1.01
Location: 52 Prev | Next Part: 12601274 *Qty: 1 WASHER $0.90
Location: 53 Prev | Next Part: 14305321 *Qty: 1 SCREW $0.90
Location: 54 Prev | Next Part: 12601274 *Qty: 2 WASHER $0.90
Location: 55 Prev | Next Part: 14305821 *Qty: 2 SCREW $0.90
Location: 56 Prev | Next Part: 11500521 *Qty: 2 STUD $2.54
Location: 57 Prev | Next Part: 134220 *Qty: 1 L.H. SHIELD CAP $173.04
Location: 58 Prev | Next Part: 10442190 *Qty: 2 BRACKET $0.94
Location: 59 Prev | Next Part: 102948 *Qty: 2 NUT $0.90
Location: 60 Prev | Next Part: 12604279 *Qty: 2 WASHER $0.90
Location: 61 Prev | Next Part: 134219 *Qty: 1 R.H. SHIELD CAP $173.04

* Quantity shown indicates the number of pieces used in the diagram.
