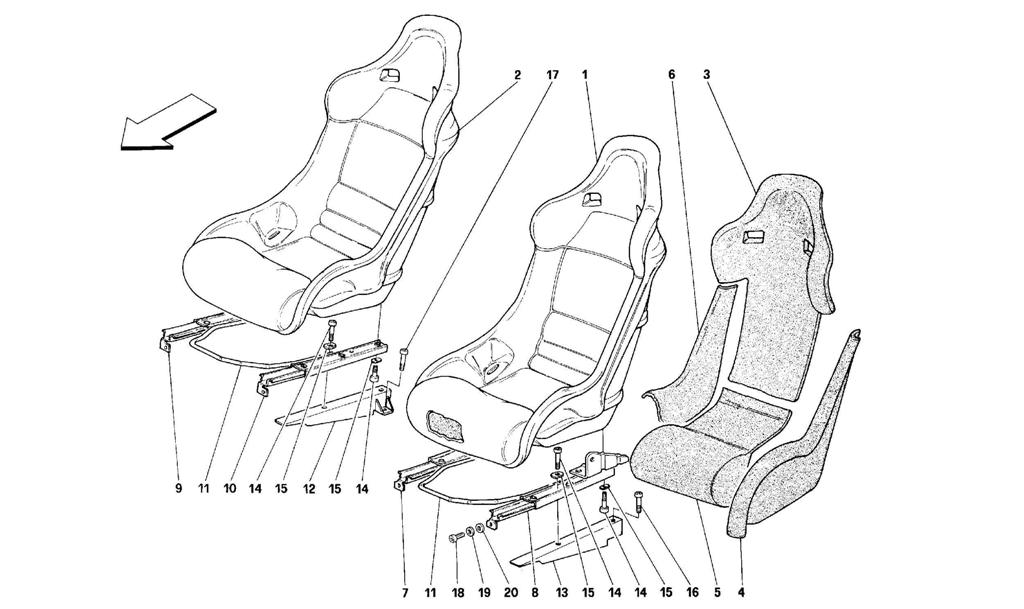

SEATS -VALID FOR 348 COMP.-

Go to Split View

SEATS -VALID FOR 348 COMP.-

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 64389000 *Qty: 1 COMPLETE SEAT UPHOLSTERY Call
Location: 1 Prev | Next Part: 62929800 *Qty: 1 COMPLETE L.H. SEAT $5,921.44
Location: 2 Prev | Next Part: 64389000 *Qty: 1 COMPLETE SEAT UPHOLSTERY Call
Location: 2 Prev | Next Part: 62929600 *Qty: 1 COMPLETE R.H. SEAT $5,921.44
Location: 3 Prev | Next Part: 64388100 *Qty: 2 SEAT BACK SPONGE Call
Location: 4 Prev | Next Part: 64388500 *Qty: 2 L.H. LATERAL SPOGNE Call
Location: 5 Prev | Next Part: 64388200 *Qty: 2 SITTING SPONGE Call
Location: 6 Prev | Next Part: 64388400 *Qty: 2 R.H. LATERAL SPOGNE Call
Location: 7 Prev | Next Part: 64388800 *Qty: 1 R.H. GUIDE FOR L.H. SEAT $607.44
Location: 8 Prev | Next Part: 64388900 *Qty: 1 L.H. GUIDE FOR L.H. SEAT $607.44
Location: 9 Prev | Next Part: 64388600 *Qty: 1 R.H. GUIDE FOR R.H. SEAT $627.76
Location: 10 Prev | Next Part: 64388700 *Qty: 1 L.H. GUIDE FOR R.H. SEAT $627.76
Location: 11 Prev | Next Part: 62532000 *Qty: 2 SLIDING CONTROL $74.17
Location: 12 Prev | Next Part: 63948300 *Qty: 2 R.H. SEAT SPACER $907.02
Location: 13 Prev | Next Part: 63948200 *Qty: 2 L.H. SEAT SPACER $527.96
Location: 14 Prev | Next Part: 13028734 *Qty: 16 SCREW $0.90
Location: 15 Prev | Next Part: 63395300 *Qty: 16 ELASTIC PLATE Call
Location: 16 Prev | Next Part: 14308921 *Qty: 2 L.H. SEAT REAR FIXING SCREW $0.90
Location: 17 Prev | Next Part: 14306424 *Qty: 2 R.H. SEAT REAR FIXING SCREW $0.90
Location: 18 Prev | Next Part: 14306374 *Qty: 4 SEAT FRONT FIXING SCREW $0.90
Location: 19 Prev | Next Part: 12601374 *Qty: 4 WASHER $0.90
Location: 20 Prev | Next Part: 14496506 *Qty: 4 WASHER $0.90

* Quantity shown indicates the number of pieces used in the diagram.
