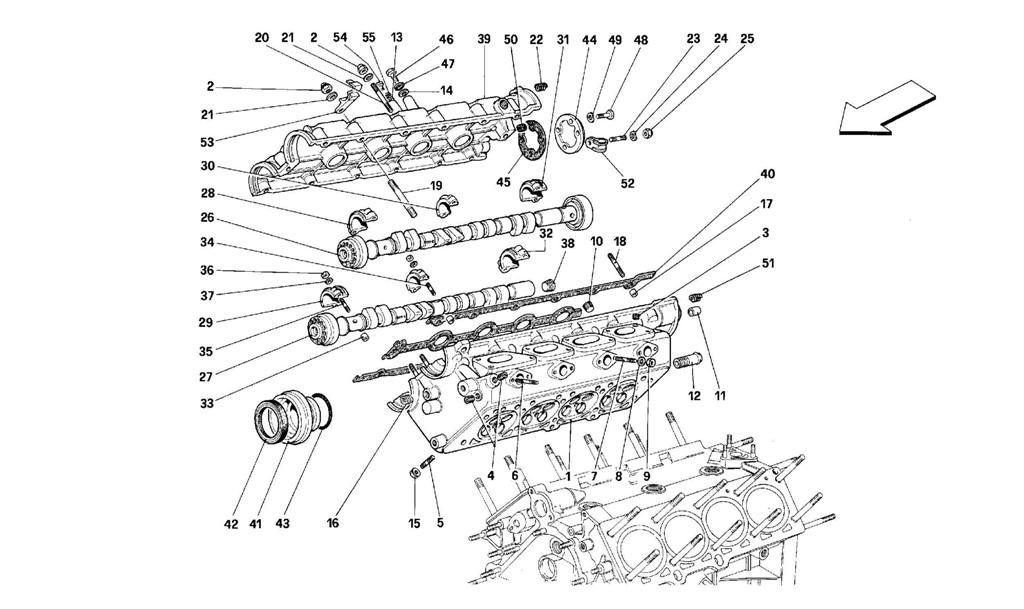

R.H. CYLINDER HEAD

Go to Split View

R.H. CYLINDER HEAD

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 159866 *Qty: 1 COMPLETE R.H. CYLINDER HEAD
-Not for USA and CDN-
$3,696.45
Location: - Prev | Next Part: 143273 *Qty: 1 COMPLETE R.H. CYLINDER HEAD
-Valid for USA and CDN-
$9,397.11
Location: 1 Prev | Next Part: ------ *Qty: 1 R. H. HEAD
-Not as spare part-
-With complete cylinder head-
Call
Location: 2 Prev | Next Part: 100044 *Qty: 14 NUT $0.90
Location: 3 Prev | Next Part: 13525870 *Qty: 10 THREADED INSERT $3.43
Location: 4 Prev | Next Part: 14326150 *Qty: 3 THREADED PLUG $0.90
Location: 5 Prev | Next Part: 12354524 *Qty: 8 STUD SECURING EXHAUST MANIFOLDS $37.74
Location: 6 Prev | Next Part: 13541624 *Qty: 4 STUD SECURING WATER MANIFOLDS (CYL. 1,4) $0.90
Location: 7 Prev | Next Part: 13541724 *Qty: 4 STUD SECURING WATER MANIFOLDS (CYL. 2,3) $2.07
Location: 8 Prev | Next Part: 11197771 *Qty: 8 WASHER Superseded
Location: 9 Prev | Next Part: 15896214 *Qty: 8 NUT $0.90
Location: 10 Prev | Next Part: 127635 *Qty: 5 THREADED PLUG $4.35
Location: 11 Prev | Next Part: 102725 *Qty: 2 DOWEL $0.90
Location: 12 Prev | Next Part: 106227 *Qty: 1 UNION $8.13
Location: 13 Prev | Next Part: 10519377 *Qty: 1 WASHER $0.90
Location: 14 Prev | Next Part: 12648201 *Qty: 1 WASHER $0.90
Location: 15 Prev | Next Part: 138392 *Qty: 8 NUT $1.41
Location: 16 Prev | Next Part: 13525870 *Qty: 3 THREADED INSERT $3.43
Location: 17 Prev | Next Part: 102725 *Qty: 2 DOWEL $0.90
Location: 18 Prev | Next Part: 13541724 *Qty: 2 STUD $2.07
Location: 19 Prev | Next Part: 13541724 *Qty: 1 STUD $2.07
Location: 20 Prev | Next Part: 13541624 *Qty: 11 STUD $0.90
Location: 21 Prev | Next Part: 11197771 *Qty: 14 WASHER Superseded
Location: 22 Prev | Next Part: 13525470 *Qty: 1 THREADED INSERT $0.90
Location: 23 Prev | Next Part: 11500521 *Qty: 2 STUD $2.54
Location: 24 Prev | Next Part: 12601274 *Qty: 2 WASHER $0.90
Location: 25 Prev | Next Part: 102741 *Qty: 2 NUT $0.90
Location: 26 Prev | Next Part: 139334 *Qty: 1 COMPLETE R.H. INDUCTION DISTRIBUTION SHAFT $1,341.39
Location: 27 Prev | Next Part: 139337 *Qty: 1 COMPLETE R.H. EXHAUST CAM SHAFT $2,955.32
Location: 28 Prev | Next Part: ------ *Qty: 1 INLET SIDE FRONT CAP
-Not as spare part-
-With complete cylinder head-
Call
Location: 29 Prev | Next Part: ------ *Qty: 1 EXHAUST SIDE FRONT CAP
-Not as spare part-
-With complete cylinder head-
Call
Location: 30 Prev | Next Part: ------ *Qty: 6 INTERMEDIATE CAP
-Not as spare part-
-With complete cylinder head-
Call
Location: 31 Prev | Next Part: ------ *Qty: 1 INLET SIDE REAR CAP
-Not as spare part-
-With complete cylinder head-
Call
Location: 32 Prev | Next Part: ------ *Qty: 1 EXHAUST SIDE REAR CAP
-Not as spare part-
-With complete cylinder head-
Call
Location: 33 Prev | Next Part: 102725 *Qty: 20 DOWEL $0.90
Location: 34 Prev | Next Part: 102735 *Qty: 12 STUD (INNER CAPS) $23.76
Location: 35 Prev | Next Part: 102754 *Qty: 8 STUD (OUTER CAPS) $6.11
Location: 36 Prev | Next Part: 15896214 *Qty: 20 NUT $0.90
Location: 37 Prev | Next Part: 11197771 *Qty: 20 WASHER Superseded
Location: 38 Prev | Next Part: 10269750 *Qty: 1 THREADED PLUG-
-f 18 mm
$2.01
Location: - Prev | Next Part: 10269550 *Qty: 1 THREADED PLUG-
-f 14 mm
$0.90
Location: 39 Prev | Next Part: ------ *Qty: 1 R. H. CYLINDER HEAD COVER
-Not as spare part-
-With complete cylinder head-
Call
Location: 40 Prev | Next Part: 150078 *Qty: 1 GASKET $89.95
Location: 41 Prev | Next Part: 144973 *Qty: 2 SMALL COVER Call
Location: 42 Prev | Next Part: 134714 *Qty: 2 GASKET $38.00
Location: 43 Prev | Next Part: 117275 *Qty: 2 O RING GASKET $6.26
Location: 44 Prev | Next Part: 103796 *Qty: 1 REAR SMALL COVER $405.78
Location: 45 Prev | Next Part: 150075 *Qty: 1 GASKET $26.70
Location: 46 Prev | Next Part: 10902024 *Qty: 1 SCREW $0.90
Location: 47 Prev | Next Part: 10615474 *Qty: 1 WASHER $0.90
Location: 48 Prev | Next Part: 10902424 *Qty: 2 SCREW $0.90
Location: 49 Prev | Next Part: 12601274 *Qty: 2 WASHER $0.90
Location: 50 Prev | Next Part: 13525470 *Qty: 2 THREADED INSERT $0.90
Location: 51 Prev | Next Part: 13525470 *Qty: 2 THREADED INSERT $0.90
Location: 52 Prev | Next Part: 10418401 *Qty: 1 BRACKET $5.62
Location: 53 Prev | Next Part: 129544 *Qty: 1 CLIP $2.31
Location: 54 Prev | Next Part: 10977624 *Qty: 1 SCREW $0.90
Location: 55 Prev | Next Part: 149951 *Qty: 1 WASHER Superseded

* Quantity shown indicates the number of pieces used in the diagram.
