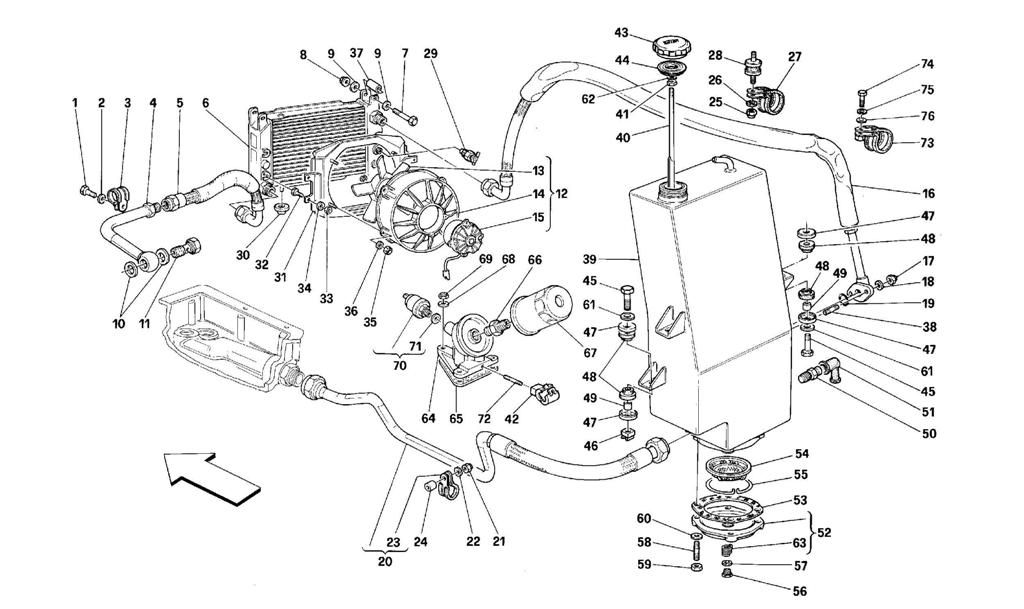

LUBRICATION SYSTEM

Go to Split View

LUBRICATION SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 10902011 *Qty: 1 SCREW $8.96
Location: 2 Prev | Next Part: 12644424 *Qty: 1 WASHER $0.90
Location: 3 Prev | Next Part: 10441990 *Qty: 1 BRACKET $0.94
Location: 4 Prev | Next Part: 142563 *Qty: 1 PIPE FROM ENGINE TO RADIATOR $258.08
Location: 5 Prev | Next Part: 141820 *Qty: 1 PIPE FROM ENGINE TO RADIATOR Call
Location: 6 Prev | Next Part: 154584 *Qty: 1 OIL RADIATOR $1,323.57
Location: 7 Prev | Next Part: 10903821 *Qty: 2 SCREW $0.90
Location: 8 Prev | Next Part: 15896214 *Qty: 2 NUT $0.90
Location: 9 Prev | Next Part: 12644424 *Qty: 4 WASHER $0.90
Location: 10 Prev | Next Part: 144487 *Qty: 2 GASKET $33.86
Location: 11 Prev | Next Part: 129809 *Qty: 1 UNION $81.92
Location: 12 Prev | Next Part: 140808 *Qty: 1 COMPLETE ELECTROFAN
-Till car Ass. Nr. 14652-
$413.63
Location: - Prev | Next Part: 158185 *Qty: 1 COMPLETE ELECTROFAN
-From car Ass. Nr. 14653-
$550.13
Location: 13 Prev | Next Part: 143544 *Qty: 1 BLOWER
-Till car Ass. Nr. 14652-
$41.79
Location: - Prev | Next Part: 158111 *Qty: 1 BLOWER
-From car Ass. Nr. 14653-
$34.47
Location: 14 Prev | Next Part: 143545 *Qty: 1 AIR CONVEYOR $22.26
Location: 15 Prev | Next Part: 140808 *Qty: 1 MOTOR
-Till car Ass. Nr. 14652-
$413.63
Location: - Prev | Next Part: 158110 *Qty: 1 MOTOR
-From car Ass. Nr. 14653-
$343.86
Location: 16 Prev | Next Part: 141821 *Qty: 1 PIPE FROM RADIATOR TO TANK Call
Location: 17 Prev | Next Part: 102741 *Qty: 2 NUT $0.90
Location: 18 Prev | Next Part: 10519424 *Qty: 2 WASHER Call
Location: 19 Prev | Next Part: 139934 *Qty: 1 O RING GASKET $1.13
Location: 20 Prev | Next Part: 141819 *Qty: 1 TANK/PUMP CONNECTION PIPE Call
Location: 21 Prev | Next Part: 133989 *Qty: 2 NUT $0.90
Location: 22 Prev | Next Part: 12601374 *Qty: 2 WASHER $0.90
Location: 23 Prev | Next Part: 141850 *Qty: 2 BRACKET $1.62
Location: 24 Prev | Next Part: 141849 *Qty: 2 SPACER $1.60
Location: 25 Prev | Next Part: 102741 *Qty: 3 NUT $0.90
Location: 26 Prev | Next Part: 14496424 *Qty: 3 WASHER Superseded
Location: 27 Prev | Next Part: 106195 *Qty: 3 BRACKET $45.54
Location: 28 Prev | Next Part: 102947 *Qty: 1 PAD $18.79
Location: 29 Prev | Next Part: 123277 *Qty: 1 THERMOSWITCH $161.31
Location: 30 Prev | Next Part: 137624 *Qty: 2 PAD Call
Location: 31 Prev | Next Part: 140809 *Qty: 1 HOOD FOR ELECTROFAN $172.07
Location: 32 Prev | Next Part: 10902424 *Qty: 4 SCREW $0.90
Location: 33 Prev | Next Part: 15896214 *Qty: 4 NUT $0.90
Location: 34 Prev | Next Part: 14496424 *Qty: 4 WASHER Superseded
Location: 35 Prev | Next Part: 102948 *Qty: 4 NUT $0.90
Location: 36 Prev | Next Part: 14496424 *Qty: 4 WASHER Superseded
Location: 37 Prev | Next Part: 144814 *Qty: 2 SPACER PIPE Call
Location: 38 Prev | Next Part: 13540921 *Qty: 2 STUD Call
Location: 39 Prev | Next Part: 136428 *Qty: 1 OIL TANK $1,806.14
Location: 40 Prev | Next Part: 139675 *Qty: 1 OIL LEVEL ROD $30.59
Location: 41 Prev | Next Part: 15896214 *Qty: 1 NUT $0.90
Location: 42 Prev | Next Part: 139637 *Qty: 1 ELECTRIC BLOCK SUPPORT $21.91
Location: 43 Prev | Next Part: 145623 *Qty: 1 TANK PLUG $278.17
Location: 44 Prev | Next Part: 180585 *Qty: 1 GASKET $89.81
Location: 45 Prev | Next Part: 16043834 *Qty: 3 SCREW $0.90
Location: 46 Prev | Next Part: 141530 *Qty: 2 NUT $0.90
Location: 47 Prev | Next Part: 107979 *Qty: 6 CUP $0.90
Location: 48 Prev | Next Part: 107978 *Qty: 6 PAD $1.46
Location: 49 Prev | Next Part: 107980 *Qty: 3 SPACER $7.64
Location: 50 Prev | Next Part: 107576 *Qty: 1 OIL THERMISTOR
-Not for AUS-
$135.30
Location: - Prev | Next Part: 148676 *Qty: 1 OIL THERMISTOR
-Valid for AUS-
Call
Location: 51 Prev | Next Part: 107003 *Qty: 1 ELECTRIC TERMINAL COVER $6.90
Location: 52 Prev | Next Part: 139627 *Qty: 1 COVER $122.00
Location: 53 Prev | Next Part: 139631 *Qty: 1 GASKET $3.49
Location: 54 Prev | Next Part: 122429 *Qty: 1 FILTER $14.12
Location: 55 Prev | Next Part: 103944 *Qty: 1 SEAL RING $128.16
Location: 56 Prev | Next Part: 10300771 *Qty: 1 THREADED PLUG $17.00
Location: 57 Prev | Next Part: 10257060 *Qty: 1 GASKET $0.90
Location: 58 Prev | Next Part: 11500621 *Qty: 4 STUD $0.90
Location: 59 Prev | Next Part: 102948 *Qty: 4 NUT $0.90
Location: 60 Prev | Next Part: 12601274 *Qty: 4 WASHER $0.90
Location: 61 Prev | Next Part: 127496 *Qty: 3 WASHER $0.90
Location: 62 Prev | Next Part: 12601274 *Qty: 1 WASHER $0.90
Location: 63 Prev | Next Part: 111352 *Qty: 1 THREADED INSERT $192.83
Location: 64 Prev | Next Part: 138348 *Qty: 1 OIL FILTER BASE-PLATE $1,026.43
Location: 65 Prev | Next Part: 188052 *Qty: 1 GASKET $9.27
Location: 66 Prev | Next Part: 124229 *Qty: 1 UNION $56.38
Location: 67 Prev | Next Part: 197654 *Qty: 1 OIL FILTER CARTRIDGE $44.00
Location: 68 Prev | Next Part: 12601374 *Qty: 3 WASHER $0.90
Location: 69 Prev | Next Part: 16104121 *Qty: 3 NUT Superseded
Location: 70 Prev | Next Part: 135940 *Qty: 1 SENDER UNIT $202.64
Location: 71 Prev | Next Part: 10259960 *Qty: 1 GASKET $0.90
Location: 72 Prev | Next Part: 13539024 *Qty: 1 STUD $0.90
Location: 73 Prev | Next Part: 155627 *Qty: 2 BRACKET
-Valid for Spider-
$9.35
Location: 74 Prev | Next Part: 10902624 *Qty: 2 SCREW
-Valid for Spider-
$0.90
Location: 75 Prev | Next Part: 106850 *Qty: 2 WASHER
-Valid for Spider-
Superseded
Location: 76 Prev | Next Part: 12644424 *Qty: 2 WASHER
-Valid for Spider-
$0.90

* Quantity shown indicates the number of pieces used in the diagram.
