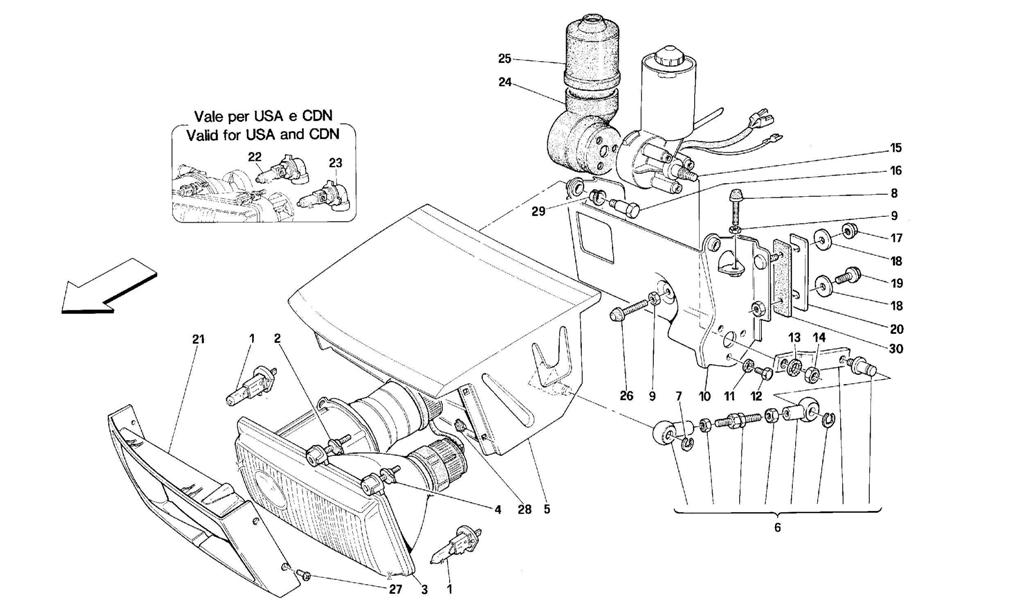

LIGHTS LIFTING DEVICE AND HEADLIGHTS

Go to Split View

LIGHTS LIFTING DEVICE AND HEADLIGHTS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 14151095 *Qty: 4 H1 12V-55W BULB
-Not for USA and CDN
Call
Location: 2 Prev | Next Part: 148086 *Qty: 2 FIXED POINT PIN $23.08
Location: 3 Prev | Next Part: 133080 *Qty: 1 R.H. HEADLIGHT LOW/HIGH BEAM
-Not for USA, CDN, RHD, F and J
$801.83
Location: 3 Prev | Next Part: 133081 *Qty: 1 L.H. HEADLIGHT LOW/HIGH BEAM
-Not for USA, CDN, RHD, F and J
$801.83
Location: 3 Prev | Next Part: 133082 *Qty: 1 R.H. HEADLIGHT LOW/HIGH BEAM
-Valid for USA and CDN
$849.62
Location: 3 Prev | Next Part: 133083 *Qty: 1 L.H. HEADLIGHT LOW/HIGH BEAM
-Valid for USA and CDN
$849.62
Location: 3 Prev | Next Part: 133084 *Qty: 1 R.H. HEADLIGHT LOW/HIGH BEAM
-Valid for RHD
$806.62
Location: 3 Prev | Next Part: 146157 *Qty: 1 R.H. HEADLIGHT LOW/HIGH BEAM
-Valid for J
$1,008.30
Location: 3 Prev | Next Part: 146158 *Qty: 1 L.H. HEADLIGHT LOW/HIGH BEAM
-Valid for J
$1,008.30
Location: 4 Prev | Next Part: 148088 *Qty: 4 HEADLIGHT ADJUSTING SCREW $25.55
Location: 5 Prev | Next Part: 63501700 *Qty: 1 R.H. LIGHT CONTAINER Call
Location: 5 Prev | Next Part: 63501800 *Qty: 1 L.H. LIGHT CONTAINER Call
Location: 6 Prev | Next Part: 62608300 *Qty: 1 COMPLETE CONNECTING ROD AND HANDLE Call
Location: 7 Prev | Next Part: 16160976 *Qty: 2 FLEXIBLE RING $0.90
Location: 8 Prev | Next Part: 63346700 *Qty: 4 UPPER LIGHT ADJUSTMENT PIN $12.16
Location: 9 Prev | Next Part: 15896214 *Qty: 6 NUT $0.90
Location: 10 Prev | Next Part: 62131300 *Qty: 1 R.H. BRACKET FOR LIGHTS SUPPORT $470.30
Location: 10 Prev | Next Part: 62131400 *Qty: 1 L.H. BRACKET FOR LIGHTS SUPPORT $470.30
Location: 11 Prev | Next Part: 10615474 *Qty: 6 WASHER $0.90
Location: 12 Prev | Next Part: 10902124 *Qty: 6 SCREW $0.90
Location: 13 Prev | Next Part: 10615474 *Qty: 2 WASHER $0.90
Location: 14 Prev | Next Part: 15896214 *Qty: 2 NUT $0.90
Location: 15 Prev | Next Part: 149133 *Qty: 1 L.H. LIGHT LIFTING MOTOR Call
Location: 15 Prev | Next Part: 149134 *Qty: 1 R.H. LIGHT LIFTING MOTOR Call
Location: 16 Prev | Next Part: 63346400 *Qty: 4 LIGHT CONTAINER ARM SUPPORT PIN $24.36
Location: 17 Prev | Next Part: 13832201 *Qty: 4 NUT $0.90
Location: 18 Prev | Next Part: 12625224 *Qty: 8 WASHER-Possible fitting $0.90
Location: 19 Prev | Next Part: 13838911 *Qty: 4 SCREW $5.19
Location: 20 Prev | Next Part: 62227500 *Qty: 4 OUTER SPACER FOR LIGHT ADJUSTMENT $9.89
Location: 20 Prev | Next Part: 62227600 *Qty: 4 INNER SPACER FOR LIGHT ADJUSTMENT $1.06
Location: 21 Prev | Next Part: 62071210 *Qty: 1 R.H. LIGHT FRAME $97.75
Location: 21 Prev | Next Part: 62071310 *Qty: 1 L.H. LIGHT FRAME $97.75
Location: 22 Prev | Next Part: 143165 *Qty: 2 HB4 12V-55W BULB
-Valid for USA and CDN
$77.25
Location: 23 Prev | Next Part: 143166 *Qty: 2 HB3 12V-65W BULB
-Valid for USA and CDN
$58.97
Location: 24 Prev | Next Part: 60331204 *Qty: 1 LOWER GUARD FOR R.H. LIGHT LIFTING MOTOR $22.02
Location: 24 Prev | Next Part: 60331303 *Qty: 1 LOWER GUARD FOR L.H. LIGHT LIFTING MOTOR $22.02
Location: 25 Prev | Next Part: 60331402 *Qty: 2 UPPER GUARD FOR LIGHT LIFTING MOTOR $39.53
Location: 26 Prev | Next Part: 63346800 *Qty: 2 LOWER LIGHT ADJUSTMENT PIN $10.46
Location: 27 Prev | Next Part: 13297377 *Qty: 8 SCREW $0.90
Location: 28 Prev | Next Part: 63595100 *Qty: 8 NUT $1.38
Location: 29 Prev | Next Part: 62998000 *Qty: 4 BUSHING $3.44
Location: 30 Prev | Next Part: 63344800 *Qty: 2 OUTER GASKET $1.97
Location: 30 Prev | Next Part: 63344900 *Qty: 2 INNER GASKET $13.12

* Quantity shown indicates the number of pieces used in the diagram.
