INSTRUMENTS

Go to Split View

INSTRUMENTS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 145872 *Qty: 1 SPEEDOMETER
-Not for USA and GB
Call
Location: 1 Prev | Next Part: 142777 *Qty: 1 SPEEDOMETER
-Valid for USA and GB
$587.50
Location: 2 Prev | Next Part: 154644 *Qty: 1 ELECTRONIC REVOLUTION COUNTER $493.28
Location: 3 Prev | Next Part: 136625 *Qty: 1 COMBINED INSTRUMENT OIL PRESS. + WATER TEMP.
-Valid for USA, GB and ZA
$315.13
Location: 3 Prev | Next Part: 134401 *Qty: 1 COMBINED INSTRUMENT OIL PRESS. + WATER TEMP.
-Not for USA, GB and ZA
$352.16
Location: 4 Prev | Next Part: 149747 *Qty: 1 INSTRUMENTS BOARD WITH PILOT LIGHTS
-Not for USA
$349.77
Location: 4 Prev | Next Part: 147141 *Qty: 1 INSTRUMENTS BOARD WITH PILOT LIGHTS
-Valid for USA
$342.97
Location: 8 Prev | Next Part: 136629 *Qty: 1 OIL THERMOMETER
-Valid for USA and GB
Call
Location: 8 Prev | Next Part: 134405 *Qty: 1 OIL THERMOMETER
-Not for USA and GB
$141.98
Location: 9 Prev | Next Part: 134412 *Qty: 1 FOG LIGHT SWITCH
-Not for CDN
$8.50
Location: 10 Prev | Next Part: 134411 *Qty: 1 REAR FOG LIGHT SWITCH
-Not for USA and CDN
$10.53
Location: 10 Prev | Next Part: 132389 *Qty: 1 DUMMY SWITCH
-Valid for USA and CDN-For CDN q.ty 2
$90.38
Location: 11 Prev | Next Part: 134409 *Qty: 1 PARKING LIGHT SWITCH Call
Location: 12 Prev | Next Part: 134410 *Qty: 1 SWITCH FOR THERMIC REAR WINDOW
-Not for Spider
$19.68
Location: 12 Prev | Next Part: 157141 *Qty: 1 MIRROR DEFROSTER SWITCH
-Valid for Spider
$57.39
Location: 13 Prev | Next Part: 134408 *Qty: 1 EMERGENCY LIGHTS SWITCH $28.52
Location: 14 Prev | Next Part: 157147 *Qty: 1 COMPLETE UPPER PUSH-BUTTON PANEL
-Valid for Spider
-Not for USA and CDN
$168.43
Location: 14 Prev | Next Part: 157152 *Qty: 1 COMPLETE UPPER PUSH-BUTTON PANEL
-Valid for USA
$1,078.39
Location: 14 Prev | Next Part: 157158 *Qty: 1 COMPLETE UPPER PUSH-BUTTON PANEL
-Valid for CDN
Call
Location: 14 Prev | Next Part: 147108 *Qty: 1 COMPLETE UPPER PUSH-BUTTON PANEL
-Not for Spider
$303.04
Location: 15 Prev | Next Part: 136628 *Qty: 1 FUEL LEVEL INDICATOR
-Valid for catalyzed cars
$147.72
Location: 15 Prev | Next Part: 134404 *Qty: 1 FUEL LEVEL INDICATOR
-Not for catalyzed cars
$106.63
Location: 16 Prev | Next Part: 151710 *Qty: 1 A.C. CONTROL PUSH-BUTTON PANEL
-Not for USA and GB
Call
Location: 16 Prev | Next Part: 151711 *Qty: 1 A.C. CONTROL PUSH-BUTTON PANEL
-Valid for USA and GB
Call
Location: 17 Prev | Next Part: 134422 *Qty: 1 DOOR UNLOCKING CONTROL SWITCH $101.20
Location: 18 Prev | Next Part: 134419 *Qty: 1 FUEL DOOR CONTROL SWITCH $123.21
Location: 19 Prev | Next Part: 134421 *Qty: 1 DOOR LOCKING CONTROL SWITCH $53.03
Location: 20 Prev | Next Part: 132389 *Qty: 1 DUMMY SWITCH $90.38
Location: 20 Prev | Next Part: 137670 *Qty: 1 ROOF LIGHT SWITCH $23.27
Location: 21 Prev | Next Part: 149546 *Qty: 1 COMPLETE PUSH-BUTTON PANEL ON TUNNEL
-Valid for roof light switch 137670-
-Part. 20
$266.56
Location: 21 Prev | Next Part: 147110 *Qty: 1 COMPLETE PUSH-BUTTON PANEL ON TUNNEL
-Valid for dummy switch 132389-Part. 20
$291.99
Location: 22 Prev | Next Part: 61079100 *Qty: 1 INNER COMPARTMENT TEMPERATURE SENSOR
-Valid for RHD
Call
Location: 23 Prev | Next Part: 61983500 *Qty: 1 SUCTION FAN
-Valid for RHD
$208.85
Location: 24 Prev | Next Part: 120065 *Qty: 1 O RING GASKET
-Valid for RHD
$1.83
Location: 25 Prev | Next Part: 119430 *Qty: 1 CONNECTION CABLES FOR SENSOR
-Valid for RHD
$13.59
Location: 26 Prev | Next Part: 174681 *Qty: 2 LOUD-SPEAKER TWEETER Call
Location: 27 Prev | Next Part: 61079200 *Qty: 1 SENSOR SEAT
-Valid for RHD
$5.78
Location: 28 Prev | Next Part: 61089300 *Qty: 1 PIPE FROM FAN TO SENSOR
-Valid for RHD
$13.07
Location: 29 Prev | Next Part: 134406 *Qty: 1 RHEOSTAT FOR INSTRUMENT INDICATOR LAMP Call
Location: 30 Prev | Next Part: 147115 *Qty: 1 BI-ADHESIVE SHEET FOR A.C. PUSH-BUTTON PANEL FASTENING Call
Location: 31 Prev | Next Part: 62745900 *Qty: 1 INNER COMPARTMENT TEMPERATURE SENSOR
-Not for RHD
$75.39
Location: 32 Prev | Next Part: 62746600 *Qty: 1 SENSOR SUPPORT
-Valid for USA
$3.90
Location: 33 Prev | Next Part: 15902670 *Qty: 2 SCREW
-Valid for USA-
$0.90
Location: 34 Prev | Next Part: 15915977 *Qty: 2 SCREW
-Not for RHD-
$0.90
Location: 35 Prev | Next Part: 152229 *Qty: 1 KNOB $8.40
Location: 36 Prev | Next Part: 15688101 *Qty: 4 SCREW $0.90
Location: 37 Prev | Next Part: 12598079 *Qty: 4 WASHER $0.93
Location: 38 Prev | Next Part: 10519281 *Qty: 4 WASHER Call
Location: 39 Prev | Next Part: 61089500 *Qty: 1 BRACKET
-Valid for RHD
$4.75
Location: 40 Prev | Next Part: 63994500 *Qty: 1 SENSOR COVERING GRILL
-Not for RHD
$9.00
Location: 41 Prev | Next Part: 63994600 *Qty: 1 SENSOR FIXING WASHER
-Not for RHD
$7.36

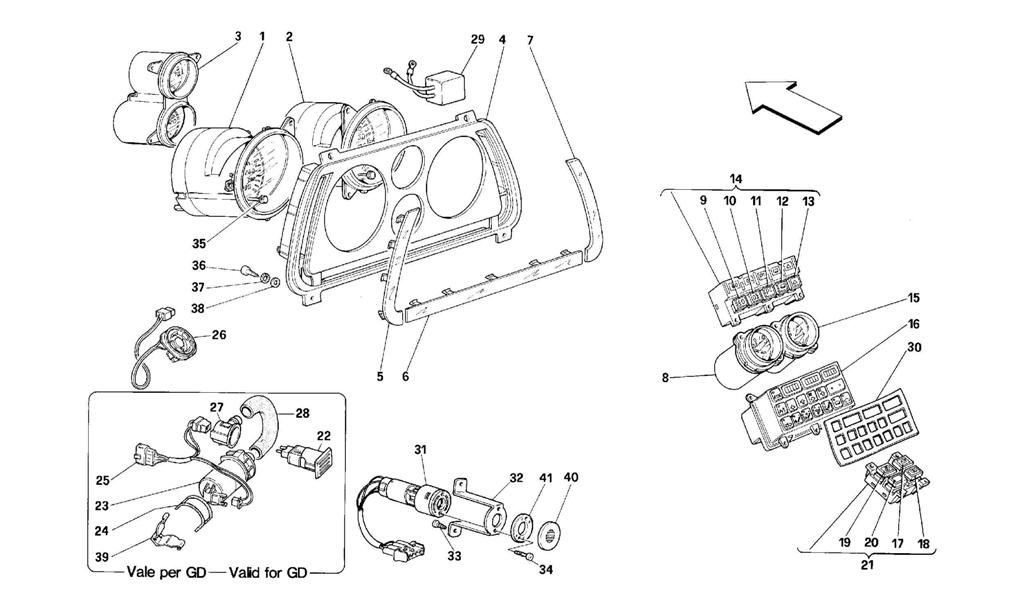

* Quantity shown indicates the number of pieces used in the diagram.
