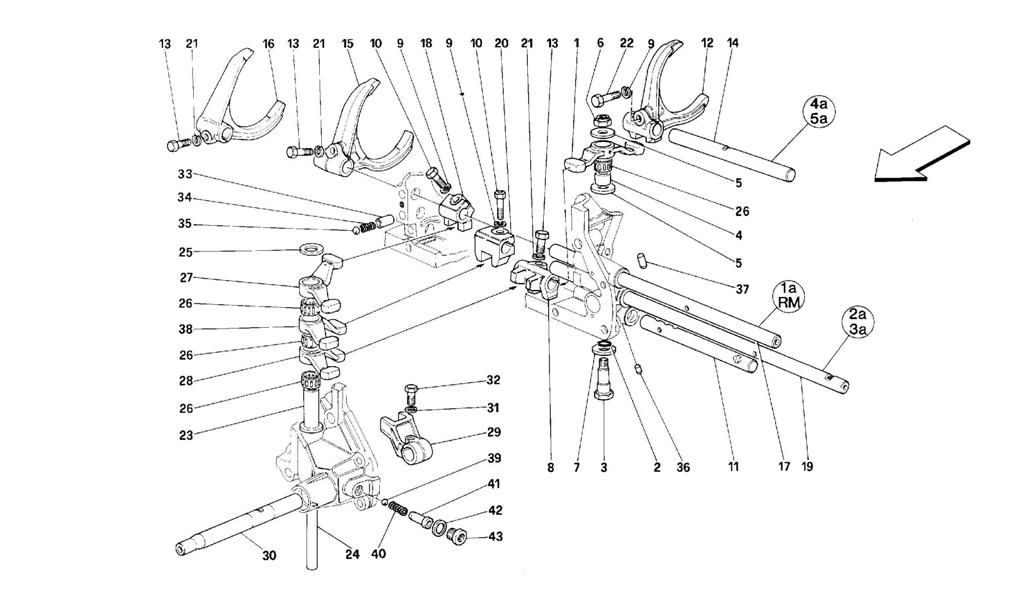

INSIDE GEARBOX CONTROLS

Go to Split View

INSIDE GEARBOX CONTROLS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 138743 *Qty: 1 FORK ROCKER ARM 4th AND 5th GEAR $117.02
Location: 2 Prev | Next Part: 128702 *Qty: 1 O RING GASKET $4.38
Location: 3 Prev | Next Part: 138739 *Qty: 1 ROCKER ARM FASTENING SCREW $72.75
Location: 4 Prev | Next Part: 138733 *Qty: 1 BUSHING $13.29
Location: 5 Prev | Next Part: 131930 *Qty: 2 SPACER WASHER 2.0 mm $7.16
Location: - Prev | Next Part: 141208 *Qty: 0 SPACER WASHER 1.9 mm $19.45
Location: - Prev | Next Part: 141210 *Qty: 0 SPACER WASHER 2.1 mm $19.44
Location: - Prev | Next Part: 141211 *Qty: 0 SPACER WASHER 2.2 mm $19.47
Location: - Prev | Next Part: 142187 *Qty: 0 SPACER WASHER 2.3 mm $19.16
Location: - Prev | Next Part: 142188 *Qty: 0 SPACER WASHER 2.4 mm $19.16
Location: - Prev | Next Part: 139727 *Qty: 0 SPACER WASHER 2.5 mm $20.57
Location: - Prev | Next Part: 139728 *Qty: 0 SPACER WASHER 2.6 mm $36.01
Location: - Prev | Next Part: 139729 *Qty: 0 SPACER WASHER 2.7 mm $20.37
Location: - Prev | Next Part: 139725 *Qty: 0 SPACER WASHER 3.0 mm $19.54
Location: - Prev | Next Part: 139726 *Qty: 0 SPACER WASHER 3.1 mm $19.54
Location: 6 Prev | Next Part: 16109221 *Qty: 1 NUT $1.22
Location: 7 Prev | Next Part: 128509 *Qty: 1 WASHER $10.51
Location: 8 Prev | Next Part: 138750 *Qty: 1 ROD FORK FOR 4th AND 5th GEAR $71.15
Location: 9 Prev | Next Part: 10569373 *Qty: 3 WASHER $0.90
Location: 10 Prev | Next Part: 14306431 *Qty: 2 SCREW $1.16
Location: 11 Prev | Next Part: 138727 *Qty: 1 FORK ROD FOR 4th AND 5th GEAR $36.01
Location: 12 Prev | Next Part: 138696 *Qty: 1 CONTROL FORK FOR 4th AND 5th GEAR $178.29
Location: 13 Prev | Next Part: 16043631 *Qty: 3 SCREW $0.90
Location: 14 Prev | Next Part: 138723 *Qty: 1 4th AND 5th GEAR FORK ROD $47.88
Location: 15 Prev | Next Part: 131077 *Qty: 1 CONTROL FORK FOR 1st GEAR AND REVERSE $140.78
Location: 16 Prev | Next Part: 131078 *Qty: 1 CONTROL FORK FOR 2nd AND 3rd GEAR $106.13
Location: 17 Prev | Next Part: 131266 *Qty: 1 1st AND REVERSE GEAR FORK ROD $185.94
Location: 18 Prev | Next Part: 131075 *Qty: 1 ROD FORK 1st GEAR AND REVERSE $42.12
Location: 19 Prev | Next Part: 131267 *Qty: 1 ROD FOR 2nd AND 3rd GEAR $486.47
Location: 20 Prev | Next Part: 131076 *Qty: 1 ROD FORK FOR 2nd AND 3rd GEAR $41.43
Location: 21 Prev | Next Part: 127496 *Qty: 3 WASHER $0.90
Location: 22 Prev | Next Part: 16043724 *Qty: 1 SCREW $0.90
Location: 23 Prev | Next Part: 131929 *Qty: 1 ROCKER LEVER TRACK $81.15
Location: 24 Prev | Next Part: 131928 *Qty: 1 ROCKER ARMS SEAL PIN $28.21
Location: 25 Prev | Next Part: 131930 *Qty: 1 WASHER $7.16
Location: 26 Prev | Next Part: 131895 *Qty: 4 ROLLER CAGE $7.61
Location: 27 Prev | Next Part: 131073 *Qty: 1 FORK ROCKER ARM 1st GEAR AND REVERSE $91.70
Location: 28 Prev | Next Part: 131074 *Qty: 1 FORK ROCKER ARM 4th AND 5th GEAR $100.87
Location: 29 Prev | Next Part: 131072 *Qty: 1 ROCKER LEVER
-Valid till stock exhaustion-
$130.61
Location: - Prev | Next Part: 157527 *Qty: 1 ROCKER LEVER
-Valid after stock exhaustion of 131072-
$89.13
Location: 30 Prev | Next Part: 143316 *Qty: 1 CONTROL ROD FOR GEAR BOX $84.56
Location: 31 Prev | Next Part: 127496 *Qty: 1 WASHER $0.90
Location: 32 Prev | Next Part: 16043934 *Qty: 1 SCREW $0.90
Location: 33 Prev | Next Part: 115376 *Qty: 3 BUSHING $27.13
Location: 34 Prev | Next Part: 100750 *Qty: 3 SPRING $1.83
Location: 35 Prev | Next Part: 101612 *Qty: 3 BALL $1.40
Location: 36 Prev | Next Part: 104276 *Qty: 1 2nd AND 3rd GEAR ROD STOP ROLLER $7.47
Location: 37 Prev | Next Part: 131337 *Qty: 2 1st AND REVERSE. 4th AND 5th GEAR RODS STOP ROLLER $7.81
Location: 38 Prev | Next Part: 163484 *Qty: 1 FORK ROCKER ARM 2nd AND 3rd GEAR $521.79
Location: 39 Prev | Next Part: 125858 *Qty: 1 BALL $0.90
Location: 40 Prev | Next Part: 142199 *Qty: 1 SPRING $3.23
Location: 41 Prev | Next Part: 143325 *Qty: 1 BUSHING $3.57
Location: 42 Prev | Next Part: 10259960 *Qty: 1 GASKET $0.90
Location: 43 Prev | Next Part: 10273140 *Qty: 1 PLUG $3.36

* Quantity shown indicates the number of pieces used in the diagram.
