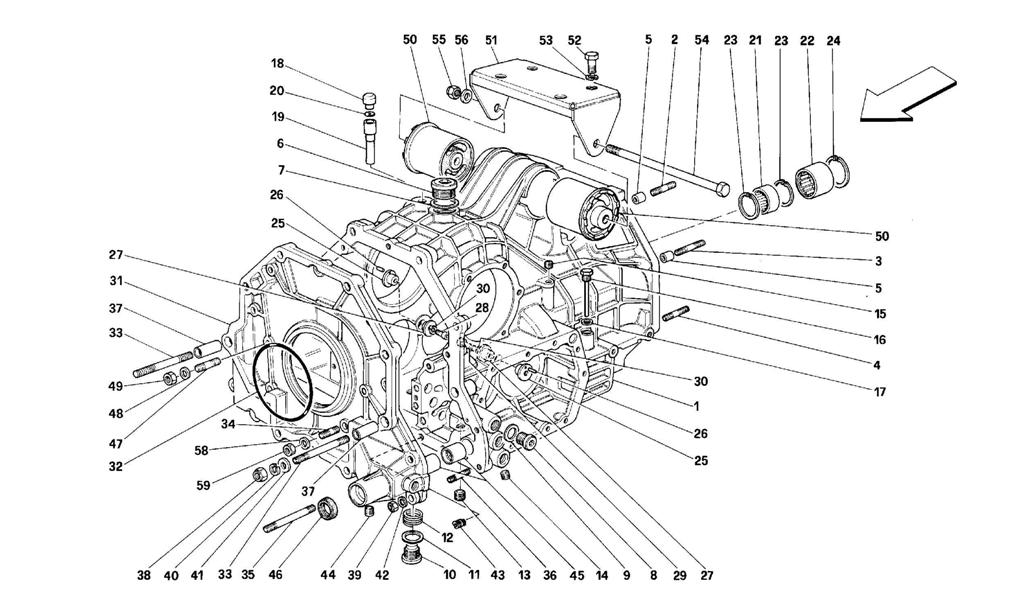

GEARBOX DIFFERENTIAL HOUSING AND INTERMEDIATE CASING

Go to Split View

GEARBOX DIFFERENTIAL HOUSING AND INTERMEDIATE CASING

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 153693 *Qty: 1 GEAR BOX AND COMPLETE DIFFERENTIAL $6,989.88
Location: 1 Prev | Next Part: ------ *Qty: 1 GEAR BOX AND DIFFERENTIAL
-Not as spare part-
-With the assembly 153693-
Call
Location: 2 Prev | Next Part: 13543721 *Qty: 1 STUD $0.90
Location: 3 Prev | Next Part: 13543921 *Qty: 1 STUD $1.00
Location: 4 Prev | Next Part: 13543424 *Qty: 4 STUD $0.90
Location: 5 Prev | Next Part: 100041 *Qty: 2 DOWEL $9.60
Location: 6 Prev | Next Part: 10276140 *Qty: 1 PLUG $42.46
Location: 7 Prev | Next Part: 10265060 *Qty: 1 GASKET $0.90
Location: 8 Prev | Next Part: 10273140 *Qty: 3 PLUG $3.46
Location: 9 Prev | Next Part: 10259960 *Qty: 3 GASKET $0.90
Location: 10 Prev | Next Part: 104280 *Qty: 1 PLUG $10.09
Location: 11 Prev | Next Part: 10263460 *Qty: 1 GASKET Superseded
Location: 12 Prev | Next Part: 112254 *Qty: 1 FLEXIBLE INSERT $5.94
Location: 13 Prev | Next Part: 10269550 *Qty: 2 PLUG $0.93
Location: 14 Prev | Next Part: 14326050 *Qty: 1 PLUG $1.77
Location: 15 Prev | Next Part: 14326050 *Qty: 3 PLUG $1.77
Location: 16 Prev | Next Part: 140201 *Qty: 1 OIL LEVEL ROD Call
Location: 17 Prev | Next Part: 10261060 *Qty: 1 GASKET $0.90
Location: 18 Prev | Next Part: 13414691 *Qty: 1 OIL BREATHER $8.23
Location: 19 Prev | Next Part: 142873 *Qty: 1 EXTENSION FOR OIL EXHAUST $6.06
Location: 20 Prev | Next Part: 13415400 *Qty: 1 OIL DEFLECTOR DISC FOR VENT $0.90
Location: 21 Prev | Next Part: 131049 *Qty: 1 BEARING $21.69
Location: - Prev | Next Part: 131049 *Qty: 1 BEARING
-As an alternative-
$21.69
Location: 22 Prev | Next Part: 131050 *Qty: 1 BEARING $57.63
Location: - Prev | Next Part: 131050 *Qty: 1 BEARING
-As an alternative-
$57.63
Location: 23 Prev | Next Part: 131958 *Qty: 2 SEAL RING $0.90
Location: 24 Prev | Next Part: 103096 *Qty: 1 SEAL RING $2.92
Location: 25 Prev | Next Part: 131756 *Qty: 2 THREADED BUSHING $36.41
Location: 26 Prev | Next Part: 14159470 *Qty: 2 PIN $0.90
Location: 27 Prev | Next Part: 131757 *Qty: 2 BUSHING $4.71
Location: 28 Prev | Next Part: 14305224 *Qty: 2 SCREW $0.90
Location: 29 Prev | Next Part: 14305327 *Qty: 1 SCREW $1.27
Location: 30 Prev | Next Part: 10569273 *Qty: 3 WASHER $0.90
Location: - Prev | Next Part: 149584 *Qty: 1 COMPLETE INTERMEDIATE BODY $1,329.91
Location: 31 Prev | Next Part: ------ *Qty: 1 INTERMEDIATE BODY
-Not as spare part-
-With assembly 149584-
Call
Location: 32 Prev | Next Part: 131736 *Qty: 1 O RING GASKET $5.83
Location: 33 Prev | Next Part: 13547535 *Qty: 2 STUD $0.98
Location: 34 Prev | Next Part: 13543124 *Qty: 1 STUD $1.02
Location: 35 Prev | Next Part: 13544321 *Qty: 1 STUD Superseded
Location: 36 Prev | Next Part: 13543524 *Qty: 12 STUD $0.90
Location: 37 Prev | Next Part: 131749 *Qty: 2 DOWEL $12.84
Location: 38 Prev | Next Part: 133988 *Qty: 2 NUT $0.90
Location: 39 Prev | Next Part: 133989 *Qty: 17 NUT $0.90
Location: 40 Prev | Next Part: 127497 *Qty: 2 WASHER $0.90
Location: 41 Prev | Next Part: 14496621 *Qty: 2 WASHER $0.90
Location: 42 Prev | Next Part: 12601374 *Qty: 17 WASHER $0.90
Location: 43 Prev | Next Part: 13526170 *Qty: 2 THREADED INSERT $6.68
Location: 44 Prev | Next Part: 10269550 *Qty: 1 PLUG $0.93
Location: 45 Prev | Next Part: 149907 *Qty: 1 BUSHING $4.56
Location: 46 Prev | Next Part: 146306 *Qty: 1 GASKET $2.70
Location: 47 Prev | Next Part: 12354524 *Qty: 1 STUD $21.12
Location: 48 Prev | Next Part: 12601374 *Qty: 2 WASHER $0.90
Location: 49 Prev | Next Part: 16102314 *Qty: 2 NUT $0.90
Location: 50 Prev | Next Part: 139230 *Qty: 2 BUFFER FOR SUPPORT $347.92
Location: 51 Prev | Next Part: 134601 *Qty: 1 GEARBOX SUPPORT BRACKET $81.61
Location: 52 Prev | Next Part: 15970631 *Qty: 4 SCREW $3.41
Location: 53 Prev | Next Part: 127497 *Qty: 4 WASHER $0.90
Location: 54 Prev | Next Part: 134512 *Qty: 1 SCREW $15.82
Location: 55 Prev | Next Part: 148020 *Qty: 1 NUT $2.42
Location: 56 Prev | Next Part: 14496701 *Qty: 1 WASHER $0.90

* Quantity shown indicates the number of pieces used in the diagram.
