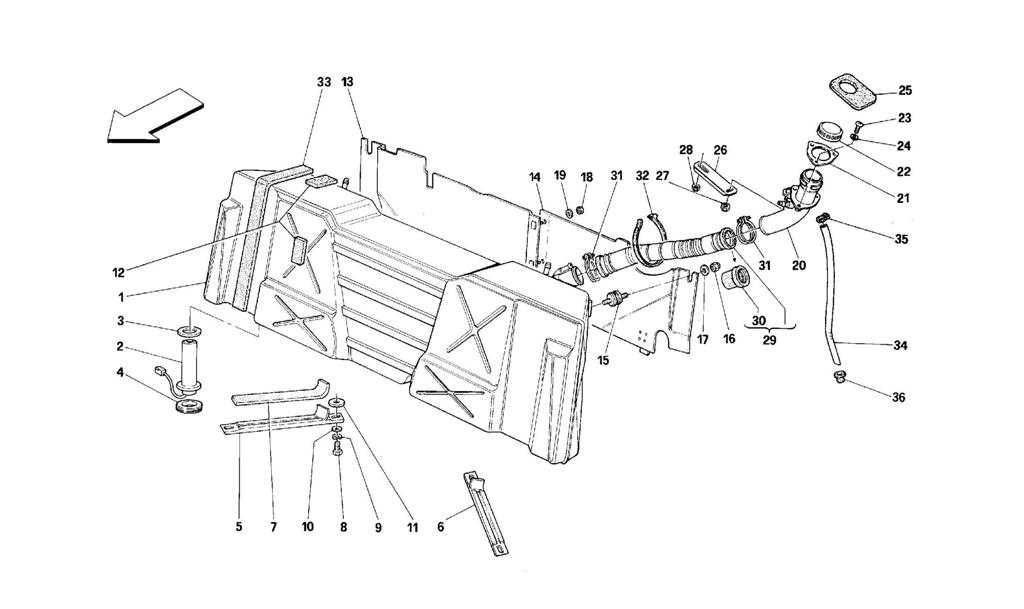

FUEL TANK

Go to Split View

FUEL TANK

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 153684 *Qty: 1 FUEL TANK $6,971.70
Location: 2 Prev | Next Part: 146648 *Qty: 1 FUEL LEVEL INDICATOR CONTROL Call
Location: 3 Prev | Next Part: 154802 *Qty: 1 GASKET $32.92
Location: 4 Prev | Next Part: 121435 *Qty: 1 RING NUT $156.51
Location: 5 Prev | Next Part: 135035 *Qty: 1 R.H. SUPPORT $52.16
Location: 6 Prev | Next Part: 135036 *Qty: 1 L.H. SUPPORT $52.16
Location: 7 Prev | Next Part: 125035 *Qty: 2 RUBBER THICKNESS Call
Location: 8 Prev | Next Part: 15970721 *Qty: 4 SCREW $0.90
Location: 9 Prev | Next Part: 127497 *Qty: 4 WASHER $0.90
Location: 10 Prev | Next Part: 14496621 *Qty: 4 WASHER $0.90
Location: 11 Prev | Next Part: 140745 *Qty: 0 SPACER WASHER 2 mm $1.65
Location: - Prev | Next Part: 140746 *Qty: 0 SPACER WASHER 3 mm $0.90
Location: - Prev | Next Part: 140747 *Qty: 0 SPACER WASHER 4 mm $63.40
Location: 12 Prev | Next Part: 127403 *Qty: 4 RUBBER THICKNESS Call
Location: 13 Prev | Next Part: 146308 *Qty: 1 R.H. PANEL
-Valid for J-
$579.78
Location: 14 Prev | Next Part: 146310 *Qty: 1 L.H. PANEL
-Valid for J-
$579.78
Location: 15 Prev | Next Part: 137994 *Qty: 2 ANTI-VIBRATION SUPPORT Call
Location: 16 Prev | Next Part: 12557621 *Qty: 2 NUT Superseded
Location: 17 Prev | Next Part: 12644301 *Qty: 2 WASHER $0.90
Location: 18 Prev | Next Part: 169180 *Qty: 3 NUT
-Valid for J-
$0.90
Location: 19 Prev | Next Part: 12638124 *Qty: 3 WASHER
-Valid for J-
$0.90
Location: 20 Prev | Next Part: 133954 *Qty: 1 FILL TUBE
-Valid for catalyzed cars-
$209.97
Location: - Prev | Next Part: 144646 *Qty: 1 FILL TUBE
-Valid for non-catalyzed cars-
$372.27
Location: 21 Prev | Next Part: 123897 *Qty: 1 GASKET $69.56
Location: 22 Prev | Next Part: 180320 *Qty: 1 PLUG $973.78
Location: 23 Prev | Next Part: 13276470 *Qty: 3 SCREW $0.90
Location: 24 Prev | Next Part: 12601274 *Qty: 3 WASHER $0.90
Location: 25 Prev | Next Part: 62943200 *Qty: 1 RUBBER PROTECTION $27.96
Location: 26 Prev | Next Part: 141507 *Qty: 1 BRACKET $77.05
Location: 27 Prev | Next Part: 14058511 *Qty: 1 NUT $0.90
Location: 28 Prev | Next Part: 15896214 *Qty: 2 NUT $0.90
Location: 29 Prev | Next Part: 141066 *Qty: 1 UNION-TANK CONNECTING PIPE Call
Location: 30 Prev | Next Part: 141033 *Qty: 2 GASKET $24.08
Location: 31 Prev | Next Part: 12182290 *Qty: 2 SCREW COLLAR $0.90
Location: 32 Prev | Next Part: 145855 *Qty: 2 CLAMP $0.90
Location: 33 Prev | Next Part: 125036 *Qty: 2 THICKNESS Call
Location: 34 Prev | Next Part: 62807100 *Qty: 1 VENT PIPE $2.80
Location: 35 Prev | Next Part: 13000190 *Qty: 1 SCREW COLLAR $0.90
Location: 36 Prev | Next Part: 10396880 *Qty: 1 CABLE GROMMET $2.23

* Quantity shown indicates the number of pieces used in the diagram.
