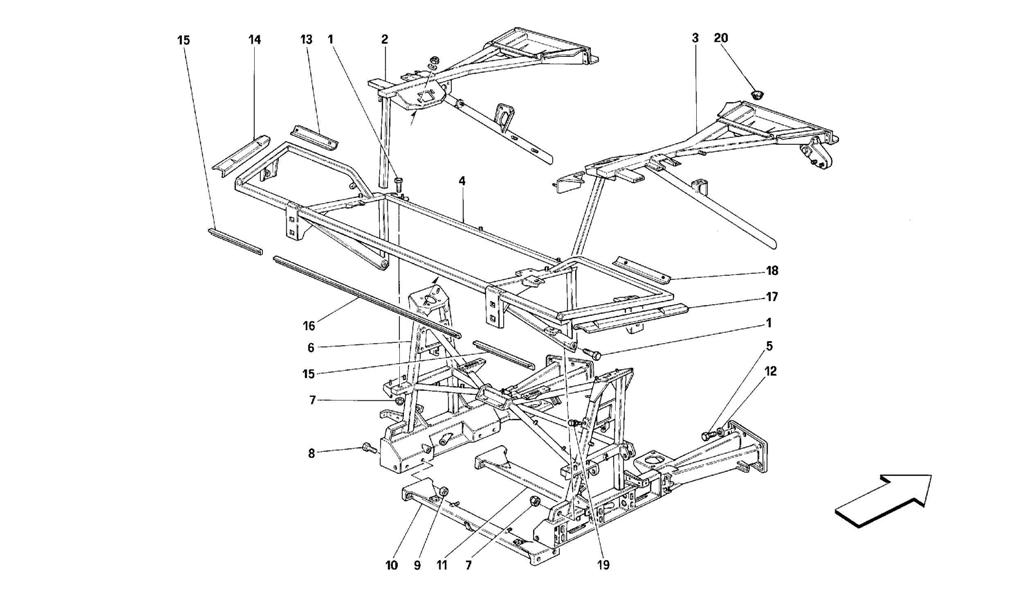

FRAME - REAR PART ELEMENTS

Go to Split View

FRAME - REAR PART ELEMENTS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 15540821 *Qty: 4 SCREW
-Not for USA, CDN, SA and J-
$1.23
Location: - Prev | Next Part: 15977621 *Qty: 4 SCREW
-Valid for USA, CDN, SA and J-
$1.73
Location: 2 Prev | Next Part: 63539000 *Qty: 1 L.H. UPPER FIXED FRAME
-Not for I Spider, B Spider, D Spider, USA Spider-
$798.11
Location: - Prev | Next Part: 63664400 *Qty: 1 L.H. UPPER FIXED FRAME
-Valid for I Spider, B Spider, D Spider, USA Spider-
$862.75
Location: 3 Prev | Next Part: 63538800 *Qty: 1 R.H. UPPER FIXED FRAME Call
Location: 4 Prev | Next Part: 63534300 *Qty: 1 REAR FIXED TRESTLE
-Not for USA, CDN, SA, J-
$2,236.75
Location: - Prev | Next Part: 63534400 *Qty: 1 REAR FIXED TRESTLE
-Valid for USA, SA, J-
Call
Location: - Prev | Next Part: 63534500 *Qty: 1 REAR FIXED TRESTLE
-Valid for CDN-
$1,572.41
Location: 5 Prev | Next Part: 16142021 *Qty: 12 SCREW $8.81
Location: 6 Prev | Next Part: 63539800 *Qty: 1 MOVING FRAME FOR MOTOR- PROPULSOR SUPPORT
-Not for USA, CDN, SA, J and RHD-
$5,310.86
Location: - Prev | Next Part: 63540500 *Qty: 1 MOVING FRAME FOR MOTOR- PROPULSOR SUPPORT
-Valid for USA, CDN, SA, J-
$5,457.93
Location: - Prev | Next Part: 63540600 *Qty: 1 MOVING FRAME FOR MOTOR- PROPULSOR SUPPORT
-Valid for RHD-
$5,000.91
Location: 7 Prev | Next Part: 148020 *Qty: 4 NUT
-Not for USA, CDN, SA and J-
$2.42
Location: - Prev | Next Part: 150238 *Qty: 4 NUT
-Valid for USA, CDN, SA and J-
$0.90
Location: 8 Prev | Next Part: 15541321 *Qty: 8 SCREW $1.38
Location: 9 Prev | Next Part: 142438 *Qty: 8 NUT $1.13
Location: 10 Prev | Next Part: 62465000 *Qty: 1 REAR REMOVABLE CROSS MEMBER $498.18
Location: 11 Prev | Next Part: 62836600 *Qty: 1 FRONT REMOVABLE CROSS MEMBER $410.78
Location: 12 Prev | Next Part: 127498 *Qty: 12 WASHER $0.90
Location: 13 Prev | Next Part: 62123700 *Qty: 1 WHEELHOUSE FIXING L.H. PLATE $2.97
Location: 14 Prev | Next Part: 62129000 *Qty: 1 FENDER FIXING L.H. PLATE $36.85
Location: 15 Prev | Next Part: 62054800 *Qty: 2 FRONT PLATE FOR REAR SIDE COVER SUPPORT $3.27
Location: 16 Prev | Next Part: 62055000 *Qty: 1 CENTRAL PLATE FOR REAR SIDE COVER SUPPORT $3.97
Location: 17 Prev | Next Part: 62128900 *Qty: 1 FENDER FIXING R.H. PLATE $36.85
Location: 18 Prev | Next Part: 62123700 *Qty: 1 WHEELHOUSE FIXING R.H. PLATE $2.97
Location: 19 Prev | Next Part: 151856 *Qty: 1 NEGATIVE TERMINAL $3.76
Location: 20 Prev | Next Part: 14506787 *Qty: 2 PLUG $0.90

* Quantity shown indicates the number of pieces used in the diagram.
