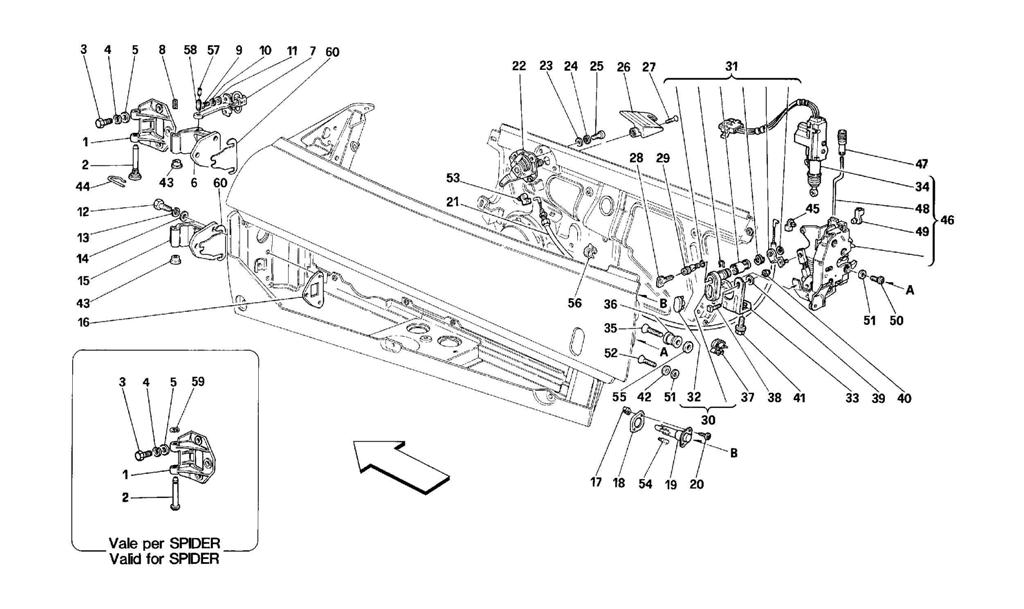

DOORS - OPENING CONTROL AND HINGES

Go to Split View

DOORS - OPENING CONTROL AND HINGES

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 63396000 *Qty: 4 FIXED HINGE
-Valid for Spider
$50.96
Location: 1 Prev | Next Part: 64829800 *Qty: 4 FIXED HINGE
-Not for Spider
$83.64
Location: 2 Prev | Next Part: 63345300 *Qty: 4 PIN
-Valid for Spider
$47.46
Location: 2 Prev | Next Part: 62054100 *Qty: 4 PIN
-Not for Spider
$45.69
Location: 3 Prev | Next Part: 16135921 *Qty: 12 SCREW $3.72
Location: 4 Prev | Next Part: 127496 *Qty: 12 WASHER $0.90
Location: 5 Prev | Next Part: 10519624 *Qty: 12 WASHER $0.90
Location: 6 Prev | Next Part: 63972400 *Qty: 2 UPPER MOBILE HINGE
-Valid for Spider
-Valid from car Ass. Nr. 15172
$83.88
Location: 6 Prev | Next Part: 63972500 *Qty: 2 UPPER MOBILE HINGE
-Not for Spider
-Valid from car Ass. Nr. 15172
$97.71
Location: 6 Prev | Next Part: 62063500 *Qty: 2 UPPER MOBILE HINGE
-Not for Spider
-Valid till car Ass. Nr. 15171
$247.05
Location: 6 Prev | Next Part: 63396100 *Qty: 2 UPPER MOBILE HINGE
-Valid for Spider
-Valid till car Ass. Nr. 15171
$197.00
Location: 7 Prev | Next Part: 63942000 *Qty: 2 TIE ROD FOR DOOR STOP
-Valid from car Ass. Nr. 15172
$65.87
Location: 8 Prev | Next Part: 65859300 *Qty: 2 PIN
-Valid till car Ass. Nr. 15171
$12.69
Location: 9 Prev | Next Part: 16134321 *Qty: 4 SCREW
-Valid till car Ass. Nr. 15171
Call
Location: 9 Prev | Next Part: 63942300 *Qty: 4 SCREW
-Valid from car Ass. Nr. 15172
$1.51
Location: 10 Prev | Next Part: 127493 *Qty: 4 WASHER
-Valid till car Ass. Nr. 15171
Superseded
Location: 10 Prev | Next Part: 127494 *Qty: 4 WASHER
-Valid from car Ass. Nr. 15172
$0.90
Location: 11 Prev | Next Part: 12638124 *Qty: 4 WASHER
-Valid till car Ass. Nr. 15171
$0.90
Location: 11 Prev | Next Part: 12644424 *Qty: 4 WASHER
-Valid from car Ass. Nr. 15172
$0.90
Location: 12 Prev | Next Part: 16135921 *Qty: 12 SCREW $3.72
Location: 13 Prev | Next Part: 127496 *Qty: 12 WASHER $0.90
Location: 14 Prev | Next Part: 10519624 *Qty: 12 WASHER $0.90
Location: 15 Prev | Next Part: 62172600 *Qty: 2 LOWER MOBILE HINGE
-Not for Spider
$65.88
Location: 15 Prev | Next Part: 63396200 *Qty: 2 LOWER MOBILE HINGE
-Valid for Spider
$74.43
Location: 16 Prev | Next Part: 62101100 *Qty: 4 PLATE FOR MOVABLE HINGE $9.03
Location: 17 Prev | Next Part: 14115580 *Qty: 4 BLOCK $0.90
Location: 18 Prev | Next Part: 140576 *Qty: 2 GASKET $15.70
Location: 19 Prev | Next Part: 60788100 *Qty: 2 OPENING DOOR LAMP $7.89
Location: 20 Prev | Next Part: 15901470 *Qty: 4 SCREW $0.90
Location: 21 Prev | Next Part: 64314100 *Qty: 2 DOOR OPENING CABLE Call
Location: 22 Prev | Next Part: 62584400 *Qty: 1 L.H. INNER DEVICE FOR DOOR OPENING $143.31
Location: 22 Prev | Next Part: 62171600 *Qty: 1 R.H. INNER DEVICE FOR DOOR OPENING $185.94
Location: 23 Prev | Next Part: 60711900 *Qty: 6 WASHER $0.90
Location: 24 Prev | Next Part: 149951 *Qty: 6 WASHER Superseded
Location: 25 Prev | Next Part: 14071911 *Qty: 6 SCREW $0.90
Location: 26 Prev | Next Part: 62158400 *Qty: 1 R.H. INNER HANDLE FOR DOOR OPENING Call
Location: 26 Prev | Next Part: 62158500 *Qty: 1 L.H. INNER HANDLE FOR DOOR OPENING $258.08
Location: 27 Prev | Next Part: 13309211 *Qty: 2 SCREW Call
Location: 28 Prev | Next Part: 95401152 *Qty: 0 BLANK KEY Call
Location: 30 Prev | Next Part: 62108710 *Qty: 1 BODY COMPLETE WITH R.H. DOOR OPENING PUSH BUTTON $488.27
Location: 30 Prev | Next Part: 62108810 *Qty: 1 BODY COMPLETE WITH L.H. DOOR OPENING PUSH BUTTON $488.27
Location: 31 Prev | Next Part: 70000654 *Qty: 1 KIT FOR R.H. PUSH BUTTON Call
Location: 31 Prev | Next Part: 70000655 *Qty: 1 KIT FOR L.H. PUSH BUTTON Call
Location: 32 Prev | Next Part: 62584200 *Qty: 2 DOOR OPENING PUSH BUTTON $40.25
Location: 33 Prev | Next Part: 62171000 *Qty: 2 BRACKET FOR PUSH BUTTON FASTENING
-Not for USA, CDN, AUS and SA
$22.76
Location: 33 Prev | Next Part: 62194500 *Qty: 2 BRACKET FOR PUSH BUTTON FASTENING
-Valid for USA, CDN, AUS and SA
$20.21
Location: 34 Prev | Next Part: 62832300 *Qty: 1 DOORS LOCKING/RELEASING ACTUATOR $65.41
Location: 35 Prev | Next Part: 62858700 *Qty: 2 SCREW $2.54
Location: 36 Prev | Next Part: 63364100 *Qty: 2 STRIKER $30.00
Location: 37 Prev | Next Part: 61130600 *Qty: 8 CLIP $0.90
Location: 38 Prev | Next Part: 62171200 *Qty: 4 SCREW $1.18
Location: 39 Prev | Next Part: 12646601 *Qty: 4 WASHER $0.90
Location: 40 Prev | Next Part: 102948 *Qty: 4 NUT $0.90
Location: 41 Prev | Next Part: 13836371 *Qty: 4 SCREW $1.65
Location: 42 Prev | Next Part: 12647777 *Qty: 2 WASHER Superseded
Location: 43 Prev | Next Part: 62825300 *Qty: 8 BUSHING $35.18
Location: 44 Prev | Next Part: 62116700 *Qty: 4 CLIP
-Not for Spider
$6.63
Location: 45 Prev | Next Part: 40063208 *Qty: 2 CABLE RETAIN CLIP Call
Location: 46 Prev | Next Part: 62109300 *Qty: 1 R.H. DOOR LOCK
-Not for Spider
$2,531.62
Location: 46 Prev | Next Part: 64685200 *Qty: 1 R.H. DOOR LOCK
-Valid for Spider
$322.61
Location: 46 Prev | Next Part: 62109400 *Qty: 1 L.H. DOOR LOCK
-Not for Spider
$2,531.62
Location: 46 Prev | Next Part: 64685300 *Qty: 1 L.H. DOOR LOCK
-Valid for Spider
$322.61
Location: 47 Prev | Next Part: 62800900 *Qty: 2 KNOB FOR SAFETY ROD Call
Location: 48 Prev | Next Part: 63617600 *Qty: 1 SAFETY LOCK ROD FOR R.H. DOOR
-Valid for Spider
$16.47
Location: 48 Prev | Next Part: 62109100 *Qty: 1 SAFETY LOCK ROD FOR R.H. DOOR
-Not for Spider
$101.70
Location: 48 Prev | Next Part: 63617700 *Qty: 1 SAFETY LOCK ROD FOR L.H. DOOR
-Valid for Spider
$16.47
Location: 48 Prev | Next Part: 62109200 *Qty: 1 SAFETY LOCK ROD FOR L.H. DOOR
-Not for Spider
$86.53
Location: 49 Prev | Next Part: 63695300 *Qty: 2 ROD CLIP
-Valid for Spider
$2.80
Location: 49 Prev | Next Part: 63280600 *Qty: 2 ROD CLIP
-Not for Spider
$1.15
Location: 50 Prev | Next Part: 62941000 *Qty: 6 SCREW $5.31
Location: 51 Prev | Next Part: 63314400 *Qty: 8 WASHER $1.11
Location: 52 Prev | Next Part: 62940900 *Qty: 2 SCREW $1.85
Location: 53 Prev | Next Part: 63291200 *Qty: 2 CABLE RETAIN CLIP $1.04
Location: 54 Prev | Next Part: 101525 *Qty: 2 12V-3W BULB Call
Location: 55 Prev | Next Part: 63285300 *Qty: 2 WASHER Call
Location: 56 Prev | Next Part: 14569480 *Qty: 4 CLIP $0.90
Location: 57 Prev | Next Part: 63942200 *Qty: 2 INNER PIN
-Valid from car Ass. Nr. 15172
$2.50
Location: 58 Prev | Next Part: 63942100 *Qty: 2 OUTER PIN
-Valid from car Ass. Nr. 15172
$1.12
Location: 59 Prev | Next Part: 11087974 *Qty: 4 FLEXIBLE RING
-Valid for Spider
$0.90
Location: 60 Prev | Next Part: 63617500 *Qty: 4 SHIM FOR UPPER AND LOWER MOBILE HINGE-Thickness mm 1,5 $4.10
Location: 60 Prev | Next Part: 63618700 *Qty: 4 SHIM FOR UPPER AND LOWER MOBILE HINGE-Thickness mm 0,5 $2.09
Location: 60 Prev | Next Part: 63963300 *Qty: 4 SHIM FOR UPPER AND LOWER MOBILE HINGE-Thickness mm 1 $5.89

* Quantity shown indicates the number of pieces used in the diagram.
