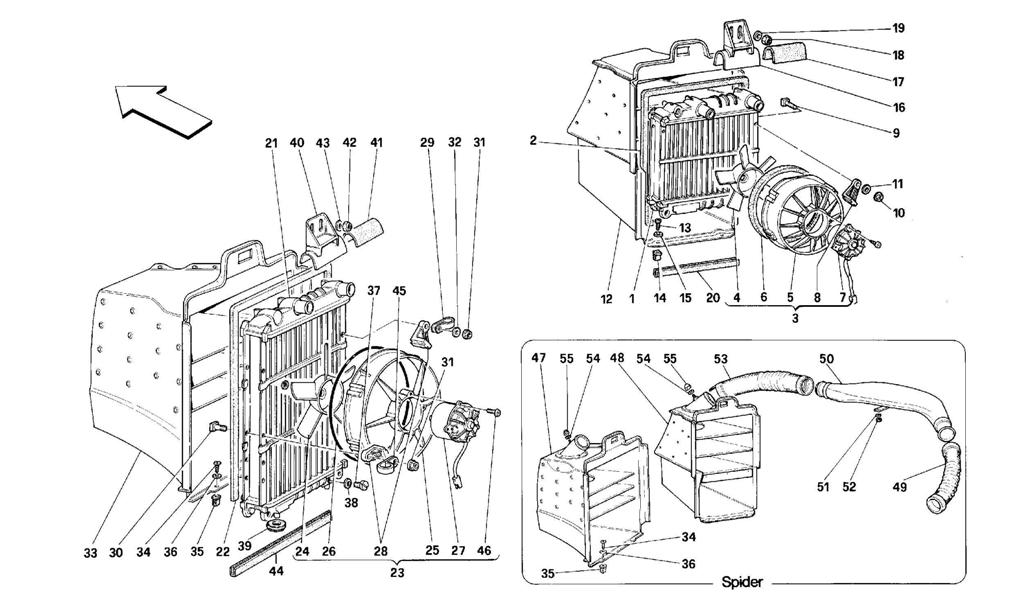

COOLING SYSTEM RADIATORS

Go to Split View

COOLING SYSTEM RADIATORS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 137619 *Qty: 1 WATER R.H. RADIATOR Call
Location: 2 Prev | Next Part: 63370800 *Qty: 1 UPPER GASKET Call
Location: 3 Prev | Next Part: 140403 *Qty: 1 COMPLETE R.H. ELECTROFAN $387.14
Location: 4 Prev | Next Part: 143544 *Qty: 1 BLOWER $41.79
Location: 5 Prev | Next Part: 143545 *Qty: 1 AIR CONVEYOR $22.26
Location: 6 Prev | Next Part: 147577 *Qty: 1 RUBBER EDGE $17.65
Location: 7 Prev | Next Part: 140808 *Qty: 1 MOTOR $413.63
Location: 8 Prev | Next Part: 147576 *Qty: 4 SUPPORT $4.59
Location: 9 Prev | Next Part: 11944811 *Qty: 4 SCREW $1.28
Location: 10 Prev | Next Part: 15896214 *Qty: 4 NUT $0.90
Location: 11 Prev | Next Part: 12644424 *Qty: 4 WASHER $0.90
Location: 12 Prev | Next Part: 62097900 *Qty: 1 R.H. AIR INLET
-Not for Spider-
$1,180.75
Location: 13 Prev | Next Part: 15903901 *Qty: 2 SCREW Call
Location: 14 Prev | Next Part: 14202580 *Qty: 2 BLOCK $0.90
Location: 15 Prev | Next Part: 12638124 *Qty: 2 WASHER $0.90
Location: 16 Prev | Next Part: 137621 *Qty: 1 RADIATOR FASTENING BRACKET $23.27
Location: 17 Prev | Next Part: 137630 *Qty: 2 RUBBER THICKNESS $16.15
Location: 18 Prev | Next Part: 16104411 *Qty: 2 NUT $0.90
Location: 19 Prev | Next Part: 12646724 *Qty: 2 WASHER $0.90
Location: 20 Prev | Next Part: 63370900 *Qty: 1 LOWER GASKET Call
Location: 21 Prev | Next Part: 137617 *Qty: 1 WATER L.H. RADIATOR Call
Location: 22 Prev | Next Part: 63370800 *Qty: 1 UPPER GASKET Call
Location: 23 Prev | Next Part: 140404 *Qty: 1 COMPLETE L.H. ELECTROFAN $393.08
Location: 24 Prev | Next Part: 147579 *Qty: 1 BLOWER $38.22
Location: 25 Prev | Next Part: 147578 *Qty: 1 AIR CONVEYOR $44.15
Location: 26 Prev | Next Part: 147580 *Qty: 1 O RING GASKET $3.98
Location: 27 Prev | Next Part: 140808 *Qty: 1 MOTOR $413.63
Location: 28 Prev | Next Part: 147581 *Qty: 4 SUPPORT $18.34
Location: 29 Prev | Next Part: 10418301 *Qty: 2 BRACKET Call
Location: 30 Prev | Next Part: 11944511 *Qty: 4 SCREW $2.21
Location: 31 Prev | Next Part: 15896214 *Qty: 2 NUT $0.90
Location: 32 Prev | Next Part: 12644424 *Qty: 2 WASHER $0.90
Location: 33 Prev | Next Part: 62098000 *Qty: 1 L.H. AIR INLET
-Not for Spider-
$991.62
Location: 34 Prev | Next Part: 15903901 *Qty: 2 SCREW Call
Location: 35 Prev | Next Part: 14202580 *Qty: 2 BLOCK $0.90
Location: 36 Prev | Next Part: 12638124 *Qty: 2 WASHER $0.90
Location: 37 Prev | Next Part: 140149 *Qty: 2 THREADED PLUG $13.78
Location: 38 Prev | Next Part: 140150 *Qty: 2 GASKET $5.72
Location: 39 Prev | Next Part: 137624 *Qty: 2 PAD Call
Location: 40 Prev | Next Part: 137621 *Qty: 1 RADIATOR FASTENING BRACKET $23.27
Location: 41 Prev | Next Part: 137630 *Qty: 1 RUBBER THICKNESS $16.15
Location: 42 Prev | Next Part: 16104411 *Qty: 2 NUT $0.90
Location: 43 Prev | Next Part: 12646724 *Qty: 2 WASHER $0.90
Location: 44 Prev | Next Part: 63370900 *Qty: 1 LOWER GASKET Call
Location: 45 Prev | Next Part: 10418801 *Qty: 2 BRACKET $0.90
Location: 46 Prev | Next Part: 123298 *Qty: 8 SCREW $0.90
Location: 47 Prev | Next Part: 63634400 *Qty: 1 L.H. AIR INLET
-Valid for Spider-
$544.57
Location: 48 Prev | Next Part: 63634300 *Qty: 1 R.H. AIR INLET
-Valid for Spider-
$544.57
Location: 49 Prev | Next Part: 155062 *Qty: 2 AIR INTAKE DUCT
-Valid for Spider-
$148.25
Location: 50 Prev | Next Part: 155040 *Qty: 1 R.H. CENTRAL DUCT
-Valid for Spider-
$837.61
Location: - Prev | Next Part: 155038 *Qty: 1 L.H. CENTRAL DUCT
-Valid for Spider-
$665.61
Location: 51 Prev | Next Part: 12637821 *Qty: 2 WASHER
-Valid for Spider-
$3.79
Location: 52 Prev | Next Part: 169180 *Qty: 2 NUT
-Valid for Spider-
$0.90
Location: 53 Prev | Next Part: 155061 *Qty: 1 R.H. AIR INLET PIPE
-Valid for Spider-
$161.55
Location: - Prev | Next Part: 155059 *Qty: 1 L.H. AIR INLET PIPE
-Valid for Spider-
$113.27
Location: 54 Prev | Next Part: 14496424 *Qty: 2 WASHER
-Valid for Spider-
Superseded
Location: 55 Prev | Next Part: 102741 *Qty: 2 NUT
-Valid for Spider-
$0.90

* Quantity shown indicates the number of pieces used in the diagram.
