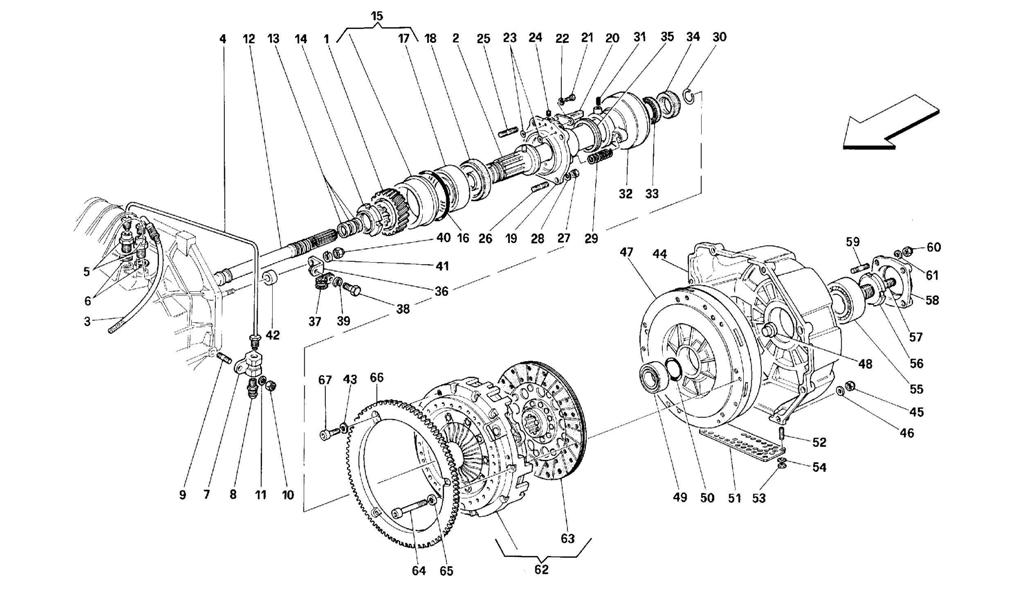

CLUTCH AND CONTROLS

Go to Split View

CLUTCH AND CONTROLS

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: ------ *Qty: 1 GEAR TRANSMISSION TORQUE-
-See Table 29-
Call
Location: 1 Prev | Next Part: ------ *Qty: 1 GEAR-
-Not as spare part-
-With GEAR TRANSMISSION TORQUE-
Call
Location: 2 Prev | Next Part: 145427 *Qty: 1 CLUTCH SHAFT $1,828.84
Location: 3 Prev | Next Part: 140668 *Qty: 1 CLUTCH CONTROL PIPE $348.60
Location: 4 Prev | Next Part: 139924 *Qty: 1 DRAIN PIPE Call
Location: 5 Prev | Next Part: 148604 *Qty: 2 UNION Call
Location: 6 Prev | Next Part: 10257060 *Qty: 2 GASKET $0.90
Location: 7 Prev | Next Part: 139921 *Qty: 1 BLOCK Call
Location: 8 Prev | Next Part: 121699 *Qty: 1 DRAIN SCREW $58.32
Location: 9 Prev | Next Part: 13546021 *Qty: 1 STUD $4.59
Location: 10 Prev | Next Part: 133988 *Qty: 1 NUT $0.90
Location: 11 Prev | Next Part: 14496609 *Qty: 1 WASHER $0.90
Location: 12 Prev | Next Part: 136899 *Qty: 1 PROPELLER SHAFT $222.42
Location: 13 Prev | Next Part: 137249 *Qty: 3 SEAL RING $13.02
Location: 14 Prev | Next Part: 153009 *Qty: 1 RING NUT $218.09
Location: 15 Prev | Next Part: 148667 *Qty: 1 BAG COMPLETE OF BEARING $1,289.71
Location: 16 Prev | Next Part: 143178 *Qty: 1 O RING GASKET $5.57
Location: 17 Prev | Next Part: 131054 *Qty: 1 BEARING $192.07
Location: 18 Prev | Next Part: 131651 *Qty: 1 GASKET $47.68
Location: 19 Prev | Next Part: 144984 *Qty: 1 BUSH SUPPORT FLANGE $1,158.45
Location: 20 Prev | Next Part: 138382 *Qty: 1 PLATE $114.21
Location: 21 Prev | Next Part: 10977521 *Qty: 2 SCREW $0.90
Location: 22 Prev | Next Part: 127493 *Qty: 2 WASHER Superseded
Location: 23 Prev | Next Part: 121813 *Qty: 2 O RING GASKET Superseded
Location: 24 Prev | Next Part: 65928500 *Qty: 2 PLUG $21.12
Location: 25 Prev | Next Part: 12354524 *Qty: 1 STUD $20.49
Location: 26 Prev | Next Part: 13543221 *Qty: 3 STUD $0.90
Location: 27 Prev | Next Part: 16100821 *Qty: 4 STUD $3.46
Location: 28 Prev | Next Part: 127496 *Qty: 4 WASHER $0.90
Location: 29 Prev | Next Part: 121717 *Qty: 2 PRELOAD SPRING $16.17
Location: 30 Prev | Next Part: 13398176 *Qty: 1 STOP RING $3.06
Location: 31 Prev | Next Part: 14163670 *Qty: 1 PIN $0.90
Location: 32 Prev | Next Part: 155226 *Qty: 1 THRUST BEARING $947.67
Location: 33 Prev | Next Part: 139438 *Qty: 1 GASKET $13.78
Location: 34 Prev | Next Part: 138387 *Qty: 1 SCRAPER RING $14.18
Location: 35 Prev | Next Part: 151822 *Qty: 1 GASKET $32.16
Location: 36 Prev | Next Part: 142060 *Qty: 1 BRACKET $8.33
Location: 37 Prev | Next Part: 10440990 *Qty: 1 BRACKET $1.90
Location: 38 Prev | Next Part: 10902011 *Qty: 1 SCREW $8.96
Location: 39 Prev | Next Part: 106850 *Qty: 1 WASHER Superseded
Location: 40 Prev | Next Part: 16100821 *Qty: 1 NUT $3.46
Location: 41 Prev | Next Part: 12601374 *Qty: 1 WASHER $0.90
Location: 42 Prev | Next Part: 147683 *Qty: 1 SPACER $1.51
Location: 43 Prev | Next Part: 10569279 *Qty: 3 WASHER $0.90
Location: - Prev | Next Part: 150463 *Qty: 1 COMPLETE CLUTCH HOUSING $1,077.36
Location: 44 Prev | Next Part: ------ *Qty: 1 CLUTCH HOUSING
-Not as spare part-
-With the assembly 150463-
Call
Location: 45 Prev | Next Part: 16100821 *Qty: 6 NUT $3.46
Location: 46 Prev | Next Part: 12601374 *Qty: 6 WASHER $0.90
Location: 47 Prev | Next Part: 149164 *Qty: 1 FLYWHEEL
-Not for USA and CDN-
Call
Location: - Prev | Next Part: 146572 *Qty: 1 FLYWHEEL
-Valid for USA and CDN-
Call
Location: 48 Prev | Next Part: 142989 *Qty: 1 SPACER $37.70
Location: 49 Prev | Next Part: 131051 *Qty: 1 BEARING $18.86
Location: 50 Prev | Next Part: 104984 *Qty: 1 O RING GASKET $1.69
Location: 51 Prev | Next Part: 136058 *Qty: 1 DRILLED SHEET $63.78
Location: 52 Prev | Next Part: 13539024 *Qty: 4 STUD $0.90
Location: 53 Prev | Next Part: 15896470 *Qty: 4 NUT $0.90
Location: 54 Prev | Next Part: 12601174 *Qty: 4 WASHER $0.90
Location: 55 Prev | Next Part: 136957 *Qty: 1 BEARING $279.12
Location: 56 Prev | Next Part: 136879 *Qty: 1 SPECIAL SCREW $57.00
Location: 57 Prev | Next Part: 13813421 *Qty: 1 SCREW $9.93
Location: 58 Prev | Next Part: 171408 *Qty: 1 REAR SMALL COVER $175.86
Location: 59 Prev | Next Part: 12354524 *Qty: 4 STUD $20.49
Location: 60 Prev | Next Part: 16100821 *Qty: 4 NUT $3.46
Location: 61 Prev | Next Part: 12601374 *Qty: 4 WASHER $0.90
Location: 62 Prev | Next Part: 146407 *Qty: 1 COMPLETE CLUTCH
-AP type-
$1,500.00
Location: - Prev | Next Part: 146407 *Qty: 1 COMPLETE CLUTCH
-VALEO type-
$1,500.00
Location: 63 Prev | Next Part: 146409 *Qty: 1 CLUTCH DISC
-AP type-
Call
Location: - Prev | Next Part: 138979 *Qty: 1 CLUTCH DISC
-VALEO type-
Call
Location: 64 Prev | Next Part: 14306034 *Qty: 9 SCREW $0.90
Location: 65 Prev | Next Part: 10569279 *Qty: 9 WASHER $0.90
Location: 66 Prev | Next Part: 144015 *Qty: 1 RING GEAR $945.77
Location: 67 Prev | Next Part: 14305720 *Qty: 3 SCREW Superseded

* Quantity shown indicates the number of pieces used in the diagram.
