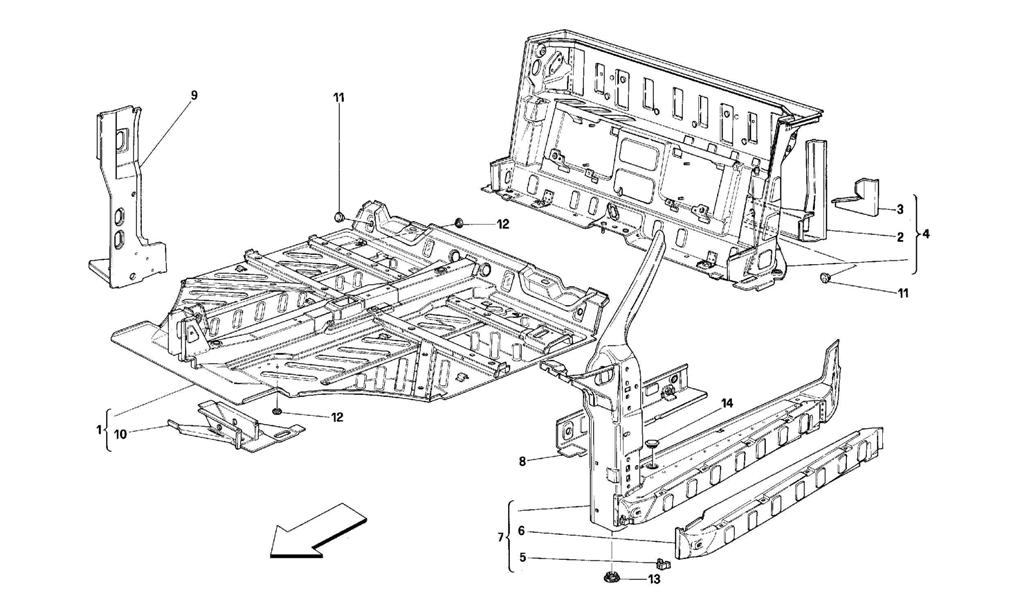

CENTRAL PART STRUCTURES

Go to Split View

CENTRAL PART STRUCTURES

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 63336300 *Qty: 1 COMPLETE FLOOR
-Not for Spider and RHD-
$14,778.62
Location: - Prev | Next Part: 64011500 *Qty: 1 COMPLETE FLOOR
-Valid for Spider-
-Not for USA and RHD-
$1,609.37
Location: - Prev | Next Part: 64299300 *Qty: 1 COMPLETE FLOOR
-Valid for USA-
Call
Location: - Prev | Next Part: 63336500 *Qty: 1 COMPLETE FLOOR
-Valid for RHD-
-Not for Spider-
$773.61
Location: - Prev | Next Part: 64011900 *Qty: 1 COMPLETE FLOOR
-Valid for Spider RHD-
Call
Location: 2 Prev | Next Part: 62091800 *Qty: 1 MOVING FRAME FIXING CROSS MEMBER
-Without brackets 3-
$567.13
Location: 3 Prev | Next Part: 62807400 *Qty: 1 REINFORCEMENT L.H. BRACKET $14.28
Location: - Prev | Next Part: 62642900 *Qty: 1 REINFORCEMENT R.H. BRACKET $11.04
Location: 4 Prev | Next Part: 63572700 *Qty: 1 COMPLETE REAR FRAMEWORK
-Not for Spider and RHD-
$1,760.30
Location: - Prev | Next Part: 63699000 *Qty: 1 COMPLETE REAR FRAMEWORK
-Valid for Spider-
-Not for USA and RHD-
$2,187.57
Location: - Prev | Next Part: 63699100 *Qty: 1 COMPLETE REAR FRAMEWORK
-Valid for USA-
$2,049.58
Location: - Prev | Next Part: 63573200 *Qty: 1 COMPLETE REAR FRAMEWORK
-Valid for RHD-
-Not for Spider-
$1,331.83
Location: - Prev | Next Part: 64277000 *Qty: 1 COMPLETE REAR FRAMEWORK
-Valid for Spider RHD-
$2,040.99
Location: 5 Prev | Next Part: 62055300 *Qty: 2 BRACKET $33.25
Location: 6 Prev | Next Part: 62077400 *Qty: 1 EXTERNAL COVERING FOR L.H. SIDE MEMBER $652.93
Location: - Prev | Next Part: 62077300 *Qty: 1 EXTERNAL COVERING FOR R.H. SIDE MEMBER $652.93
Location: 7 Prev | Next Part: 62088600 *Qty: 1 COMPLETE FRAMEWORK FOR L.H. DOOR
-Not for Spider-
$869.57
Location: - Prev | Next Part: 63616100 *Qty: 1 COMPLETE FRAMEWORK FOR L.H. DOOR
-Valid for Spider-
$771.34
Location: - Prev | Next Part: 62088500 *Qty: 1 COMPLETE FRAMEWORK FOR R.H. DOOR
-Not for Spider-
Call
Location: - Prev | Next Part: 63616000 *Qty: 1 COMPLETE FRAMEWORK FOR R.H. DOOR
-Valid for Spider-
$1,005.28
Location: 8 Prev | Next Part: 62182000 *Qty: 1 INTERNAL PLATE FOR L.H. SIDE MEMBER
-Not for GS Spider-
$36.21
Location: - Prev | Next Part: 62069000 *Qty: 1 INTERNAL PLATE FOR L.H. SIDE MEMBER
-Valid for GS Spider-
$28.20
Location: - Prev | Next Part: 62181900 *Qty: 1 INTERNAL PLATE FOR R.H. SIDE MEMBER
-Not for GS Spider-
$36.21
Location: - Prev | Next Part: 62068900 *Qty: 1 INTERNAL PLATE FOR R.H. SIDE MEMBER
-Valid for GS Spider-
$28.20
Location: 9 Prev | Next Part: 62080200 *Qty: 1 L.H. PILLAR BOX-TYPE $78.25
Location: - Prev | Next Part: 62080100 *Qty: 1 R.H. PILLAR BOX-TYPE $150.50
Location: 10 Prev | Next Part: 62164000 *Qty: 1 R.H. PLATE WITH REINFORCEMENT $47.49
Location: - Prev | Next Part: 62164100 *Qty: 1 L.H. PLATE WITH REINFORCEMENT $47.49
Location: 11 Prev | Next Part: 14506987 *Qty: 10 PLUG $4.45
Location: 12 Prev | Next Part: 14506587 *Qty: 2 PLUG $0.90
Location: 13 Prev | Next Part: 62446300 *Qty: 4 D. 30 PLUG $22.53
Location: - Prev | Next Part: 14506787 *Qty: 4 D. 20 PLUG $0.90
Location: 14 Prev | Next Part: 14507987 *Qty: 2 PLUG $6.50

* Quantity shown indicates the number of pieces used in the diagram.
