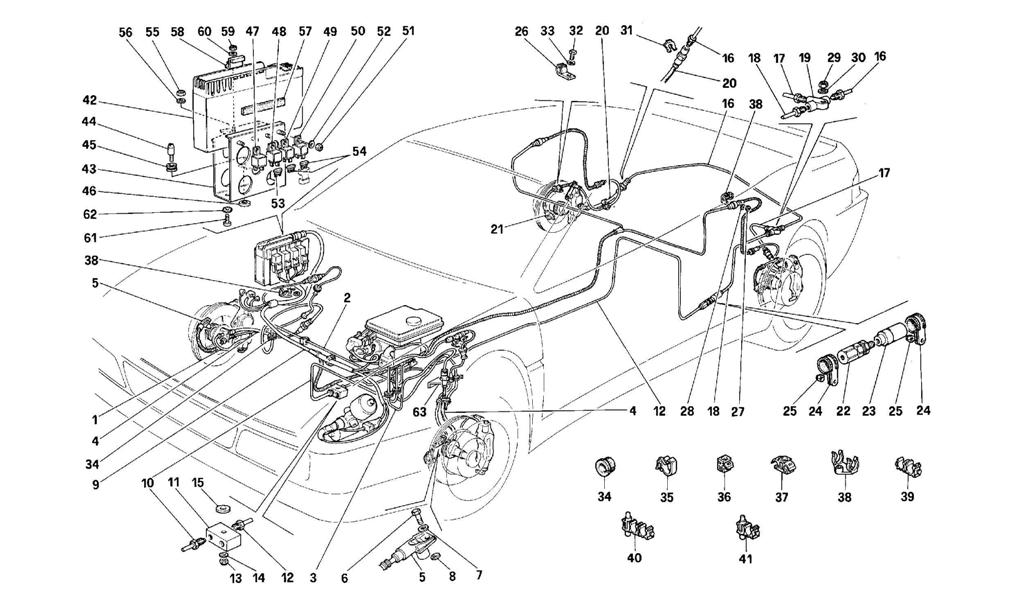

BRAKE SYSTEM

Go to Split View

BRAKE SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 143641 *Qty: 1 PIPE TO R.H. FRONT CALIPER $180.89
Location: - Prev | Next Part: 143669 *Qty: 1 PIPE TO L.H. FRONT CALIPER $180.89
Location: 2 Prev | Next Part: 153471 *Qty: 1 PIPE FROM CENTER UNIT TO R.H. FRONT FLEXIBLE PIPE
-Not for RHD-
$17.49
Location: - Prev | Next Part: 153474 *Qty: 1 PIPE FROM CENTER UNIT TO R.H. FRONT FLEXIBLE PIPE
-Valid for RHD-
$13.59
Location: 3 Prev | Next Part: 153472 *Qty: 1 PIPE FROM CENTER UNIT TO L.H. REAR FLEXIBLE PIPE
-Not for RHD-
$15.22
Location: - Prev | Next Part: 153473 *Qty: 1 PIPE FROM CENTER UNIT TO L.H. REAR FLEXIBLE PIPE
-Valid for RHD-
$16.62
Location: 4 Prev | Next Part: 116373 *Qty: 2 FRONT BRAKE FLEXIBLE PIPE Superseded
Location: 5 Prev | Next Part: 139639 *Qty: 2 FRONT SENSOR $343.58
Location: 6 Prev | Next Part: 10902111 *Qty: 4 SCREW Superseded
Location: 7 Prev | Next Part: 12601274 *Qty: 4 WASHER $0.90
Location: 8 Prev | Next Part: 154747 *Qty: 0 THICKNESS
-Possible fitting-
$1.71
Location: 9 Prev | Next Part: 134436 *Qty: 1 ANTISKID COMPLETE CABLE
-Not for RHD-
$1,649.74
Location: - Prev | Next Part: 142530 *Qty: 1 ANTISKID COMPLETE CABLE
-Valid for RHD-
$493.28
Location: 10 Prev | Next Part: 143642 *Qty: 1 BRAKE PIPE FROM CENTER UNIT TO 2-WAY UNIT
-Not for RHD-
$14.61
Location: - Prev | Next Part: 143067 *Qty: 1 BRAKE PIPE FROM CENTER UNIT TO 2-WAY UNION
-Valid for RHD-
$11.56
Location: 11 Prev | Next Part: 139375 *Qty: 1 2-WAY UNION $63.79
Location: 12 Prev | Next Part: 158198 *Qty: 1 PIPE FROM 2-WAY UNION TO BRAKING CORRECTOR $30.62
Location: 13 Prev | Next Part: 102741 *Qty: 1 NUT $0.90
Location: 14 Prev | Next Part: 12639701 *Qty: 1 WASHER Call
Location: 15 Prev | Next Part: 143041 *Qty: 1 SPACER $0.90
Location: 16 Prev | Next Part: 143646 *Qty: 1 PIPE FROM 3-WAY UNION TO REAR R.H. FLEXIBLE $6.96
Location: 17 Prev | Next Part: 143668 *Qty: 1 PIPE FROM 3-WAY UNION TO REAR L.H. FLEXIBLE Call
Location: 18 Prev | Next Part: 143645 *Qty: 1 PIPE FROM CORRECTOR TO 3-WAY UNION $5.96
Location: 19 Prev | Next Part: 101394 *Qty: 1 3-WAY UNION Call
Location: 20 Prev | Next Part: 118100 *Qty: 2 HOSE Superseded
Location: 21 Prev | Next Part: 139479 *Qty: 2 REAR SENSOR $483.62
Location: 22 Prev | Next Part: 134597 *Qty: 1 DELAY VALVE $1,436.54
Location: 23 Prev | Next Part: 136313 *Qty: 1 VALVE CORRECTOR $79.86
Location: 24 Prev | Next Part: 10441990 *Qty: 2 BRACKET $0.94
Location: 25 Prev | Next Part: 102741 *Qty: 2 NUT $0.90
Location: 26 Prev | Next Part: 131783 *Qty: 2 CLIP Call
Location: 27 Prev | Next Part: 62790300 *Qty: 4 NUT
-For RHD qty 2-
$0.90
Location: 28 Prev | Next Part: 10519281 *Qty: 4 WASHER
-For RHD qty 2-
Call
Location: 29 Prev | Next Part: 102741 *Qty: 1 NUT $0.90
Location: 30 Prev | Next Part: 12639701 *Qty: 1 WASHER Call
Location: 31 Prev | Next Part: 116374 *Qty: 4 CLIP $2.96
Location: 32 Prev | Next Part: 10902111 *Qty: 2 SCREW Superseded
Location: 33 Prev | Next Part: 12601274 *Qty: 2 WASHER $0.90
Location: 34 Prev | Next Part: 105369 *Qty: 3 CABLE GROMMET $1.76
Location: 35 Prev | Next Part: 140798 *Qty: 3 CLIP $0.90
Location: 36 Prev | Next Part: 141505 *Qty: 15 CLIP $1.55
Location: 37 Prev | Next Part: 141522 *Qty: 5 CLIP $2.09
Location: 38 Prev | Next Part: 128292 *Qty: 4 CLIP
-For RHD q.ty 2-
$3.15
Location: 39 Prev | Next Part: 145544 *Qty: 4 FRONT PIPE FIXING MODULE Call
Location: - Prev | Next Part: 140130 *Qty: 8 REAR PIPE FIXING MODULE $0.90
Location: 40 Prev | Next Part: 140164 *Qty: 2 CLIP $0.90
Location: 41 Prev | Next Part: 140163 *Qty: 2 CLIP $0.90
Location: 42 Prev | Next Part: 148838 *Qty: 1 ELECTRONIC CONTROL STATION Call
Location: 43 Prev | Next Part: 138499 *Qty: 1 BRACKET FOR CONTROL UNIT FIXING
-Not for RHD-
$71.84
Location: - Prev | Next Part: 142381 *Qty: 1 BRACKET FOR CONTROL UNIT FIXING
-Valid for RHD-
$43.48
Location: 44 Prev | Next Part: 137144 *Qty: 1 PIN $2.94
Location: 45 Prev | Next Part: 103549 *Qty: 1 CABLE GROMMET $1.57
Location: 46 Prev | Next Part: 104731 *Qty: 1 WASHER $3.41
Location: 47 Prev | Next Part: 131785 *Qty: 1 DIODES CONTAINER $30.07
Location: 48 Prev | Next Part: 131940 *Qty: 1 SYSTEM RELEASE RELAY $102.60
Location: 49 Prev | Next Part: 131938 *Qty: 1 ELECTRONIC UNIT RELAY $76.22
Location: 50 Prev | Next Part: 131939 *Qty: 1 PUMP MOTOR RELAY $81.50
Location: 51 Prev | Next Part: 169180 *Qty: 4 NUT $0.90
Location: 52 Prev | Next Part: 10519377 *Qty: 4 WASHER $0.90
Location: 53 Prev | Next Part: 131942 *Qty: 1 FUSE 3 A. $0.90
Location: 54 Prev | Next Part: 131941 *Qty: 2 FUSE 30 A. Call
Location: 55 Prev | Next Part: 102948 *Qty: 2 NUT $0.90
Location: 56 Prev | Next Part: 12646601 *Qty: 2 WASHER $0.90
Location: 57 Prev | Next Part: 144823 *Qty: 1 GASKET $2.27
Location: 58 Prev | Next Part: 138500 *Qty: 1 PLATE
-Not for RHD-
$12.77
Location: - Prev | Next Part: 142382 *Qty: 1 PLATE
-Valid for RHD-
$6.02
Location: 59 Prev | Next Part: 169180 *Qty: 1 NUT $0.90
Location: 60 Prev | Next Part: 10519377 *Qty: 1 WASHER $0.90
Location: 61 Prev | Next Part: 11021111 *Qty: 2 SCREW $0.90
Location: 62 Prev | Next Part: 10615279 *Qty: 2 WASHER Call
Location: 63 Prev | Next Part: 62822000 *Qty: 1 R.H. BRACKET $15.26
Location: 63 Prev | Next Part: 62822100 *Qty: 1 L.H. BRACKET $15.26

* Quantity shown indicates the number of pieces used in the diagram.
