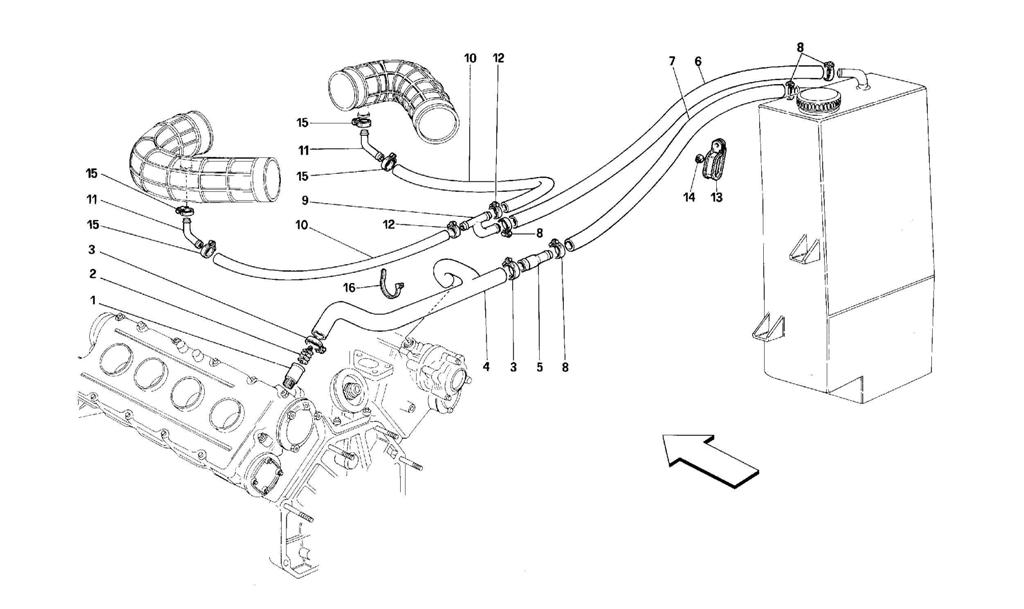

BLOW-BY SYSTEM

Go to Split View

BLOW-BY SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 119236 *Qty: 2 UNION $10.18
Location: 2 Prev | Next Part: 119237 *Qty: 2 SPLASH GUARD $0.90
Location: 3 Prev | Next Part: 12180290 *Qty: 3 SCREW COLLAR Call
Location: 4 Prev | Next Part: 139525 *Qty: 1 VENT HEADS CONNECTION PIPE $429.64
Location: 5 Prev | Next Part: 140369 *Qty: 1 UNION $54.66
Location: 6 Prev | Next Part: 143051 *Qty: 1 PIPE Superseded
Location: 7 Prev | Next Part: 139342 *Qty: 1 PIPE Superseded
Location: 8 Prev | Next Part: 13000390 *Qty: 4 SCREW COLLAR $0.97
Location: 9 Prev | Next Part: 140096 *Qty: 1 UNION $39.07
Location: 10 Prev | Next Part: 140360 *Qty: 2 PIPE TO THE SLEEVE Call
Location: 11 Prev | Next Part: 140338 *Qty: 2 UNION $10.53
Location: 12 Prev | Next Part: 13000190 *Qty: 2 SCREW COLLAR $0.90
Location: 13 Prev | Next Part: 61712600 *Qty: 1 BRACKET $2.09
Location: 14 Prev | Next Part: 102741 *Qty: 1 NUT $0.90
Location: 15 Prev | Next Part: 12179690 *Qty: 4 SCREW COLLAR Call
Location: 16 Prev | Next Part: 145855 *Qty: 2 CLAMP $0.90

* Quantity shown indicates the number of pieces used in the diagram.
