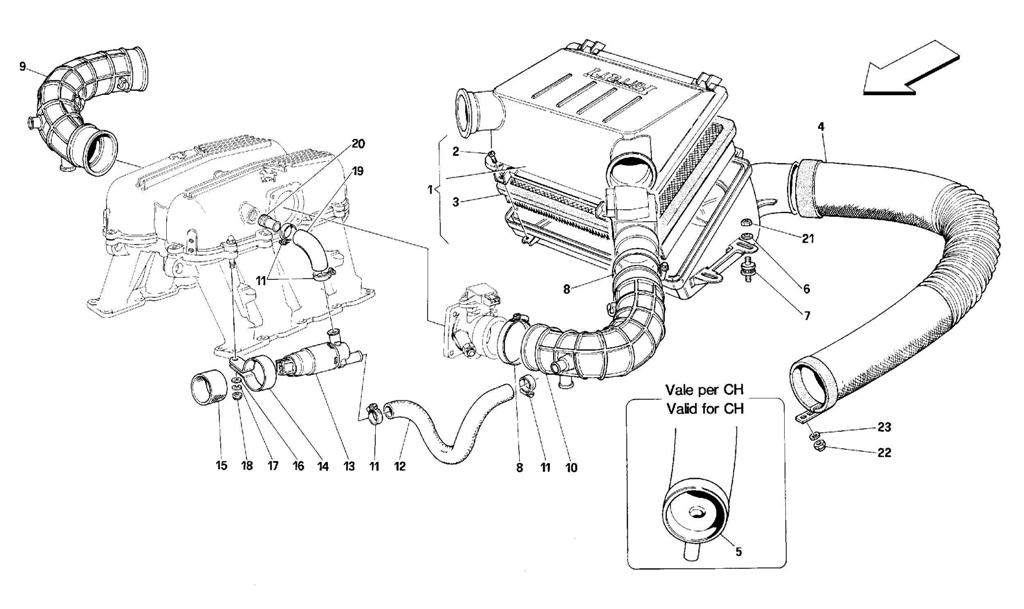

AIR INTAKE

Go to Split View

AIR INTAKE

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 142054 *Qty: 1 COMPLETE AIR INTAKE
-Not for CH-
$531.45
Location: - Prev | Next Part: 144090 *Qty: 1 COMPLETE AIR INTAKE
-Valid for CH-
$838.79
Location: 2 Prev | Next Part: 10376577 *Qty: 4 SCREW $1.22
Location: 3 Prev | Next Part: 155871 *Qty: 1 AIR FILTER $65.69
Location: 4 Prev | Next Part: 142402 *Qty: 2 AIR INLET CONNECTION PIPE
-Not for CH
-Not for Spider-
-For Spider see Table 22-
$246.72
Location: 5 Prev | Next Part: 143882 *Qty: 2 AIR INLET CONNECTION PIPE
-Valid for CH
-Not for Spider-
-For Spider see Table 22-
$525.68
Location: 6 Prev | Next Part: 10519424 *Qty: 8 WASHER Call
Location: 7 Prev | Next Part: 102947 *Qty: 4 PAD $18.79
Location: 8 Prev | Next Part: 12176490 *Qty: 4 SCREW COLLAR Superseded
Location: 9 Prev | Next Part: 143257 *Qty: 1 R.H. SLEEVE $373.95
Location: 10 Prev | Next Part: 143236 *Qty: 1 L.H. SLEEVE $373.95
Location: 11 Prev | Next Part: 12180290 *Qty: 8 SCREW COLLAR Call
Location: 12 Prev | Next Part: 143201 *Qty: 1 L.H. PIPE TO REGULATUR $24.26
Location: 12 Prev | Next Part: 143202 *Qty: 1 R.H. PIPE TO REGULATOR $24.26
Location: 13 Prev | Next Part: 142432 *Qty: 2 REGULATOR FOR IDLE ADJUSTMENT $710.33
Location: 14 Prev | Next Part: 143294 *Qty: 1 L.H. BRACKET $3.06
Location: 14 Prev | Next Part: 143301 *Qty: 1 R.H. BRACKET $2.27
Location: 15 Prev | Next Part: 143291 *Qty: 2 SLEEVE $2.54
Location: 16 Prev | Next Part: 14496424 *Qty: 2 WASHER Superseded
Location: 17 Prev | Next Part: 127494 *Qty: 2 WASHER $0.90
Location: 18 Prev | Next Part: 15896214 *Qty: 2 NUT $0.90
Location: 19 Prev | Next Part: 143270 *Qty: 2 PIPE FROM REGULATOR TO AIR PLENUM CHAMBER $8.97
Location: 20 Prev | Next Part: 143286 *Qty: 2 UNION $6.21
Location: 21 Prev | Next Part: 102948 *Qty: 8 NUT $0.90
Location: 22 Prev | Next Part: 102741 *Qty: 1 NUT $0.90
Location: 23 Prev | Next Part: 14496424 *Qty: 1 WASHER Superseded

* Quantity shown indicates the number of pieces used in the diagram.
