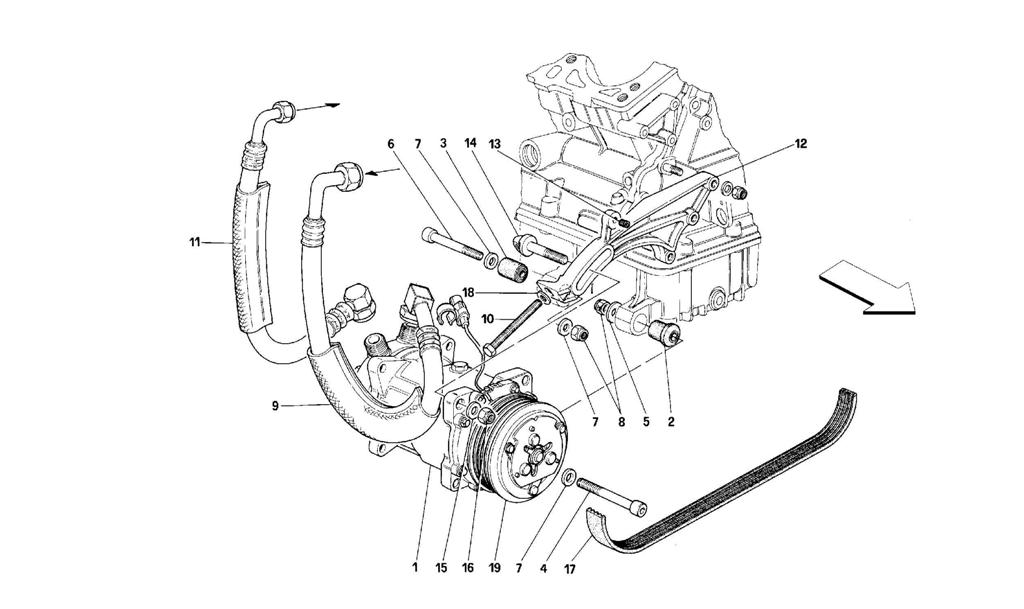

AIR CONDITIONING COMPRESSOR

Go to Split View

AIR CONDITIONING COMPRESSOR

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 146619 *Qty: 1 COMPRESSOR
(SANKYO SD 709)
Call
Location: 2 Prev | Next Part: 137768 *Qty: 1 ESTENDBLOCK $16.17
Location: 3 Prev | Next Part: 135108 *Qty: 1 ESTENDBLOCK Call
Location: 4 Prev | Next Part: 101632 *Qty: 1 SCREW $12.28
Location: 5 Prev | Next Part: 12626224 *Qty: 1 WASHER $0.90
Location: 6 Prev | Next Part: 14308121 *Qty: 1 SCREW $3.85
Location: 7 Prev | Next Part: 12642501 *Qty: 5 WASHER Call
Location: 8 Prev | Next Part: 102742 *Qty: 2 NUT $0.90
Location: 9 Prev | Next Part: 62642800 *Qty: 1 RETURN TUBE $422.07
Location: 10 Prev | Next Part: 125668 *Qty: 1 SCREW $1.81
Location: 11 Prev | Next Part: 62642300 *Qty: 1 DELIVERY TUBE $713.15
Location: 12 Prev | Next Part: 147639 *Qty: 1 BRACKET $1,022.19
Location: 13 Prev | Next Part: 13525470 *Qty: 1 THREADED INSERT $0.90
Location: 14 Prev | Next Part: 139352 *Qty: 1 PIN $81.03
Location: 15 Prev | Next Part: 13550401 *Qty: 1 WASHER $0.90
Location: 16 Prev | Next Part: 102742 *Qty: 1 NUT $0.90
Location: 17 Prev | Next Part: 199819 *Qty: 1 COMPRESSOR CONTROL BELT $21.49
Location: 18 Prev | Next Part: 14496501 *Qty: 1 WASHER $0.90
Location: 19 Prev | Next Part: 138331 *Qty: 1 ELECTRO-MAGNETIC JOINT $1,244.63

* Quantity shown indicates the number of pieces used in the diagram.
