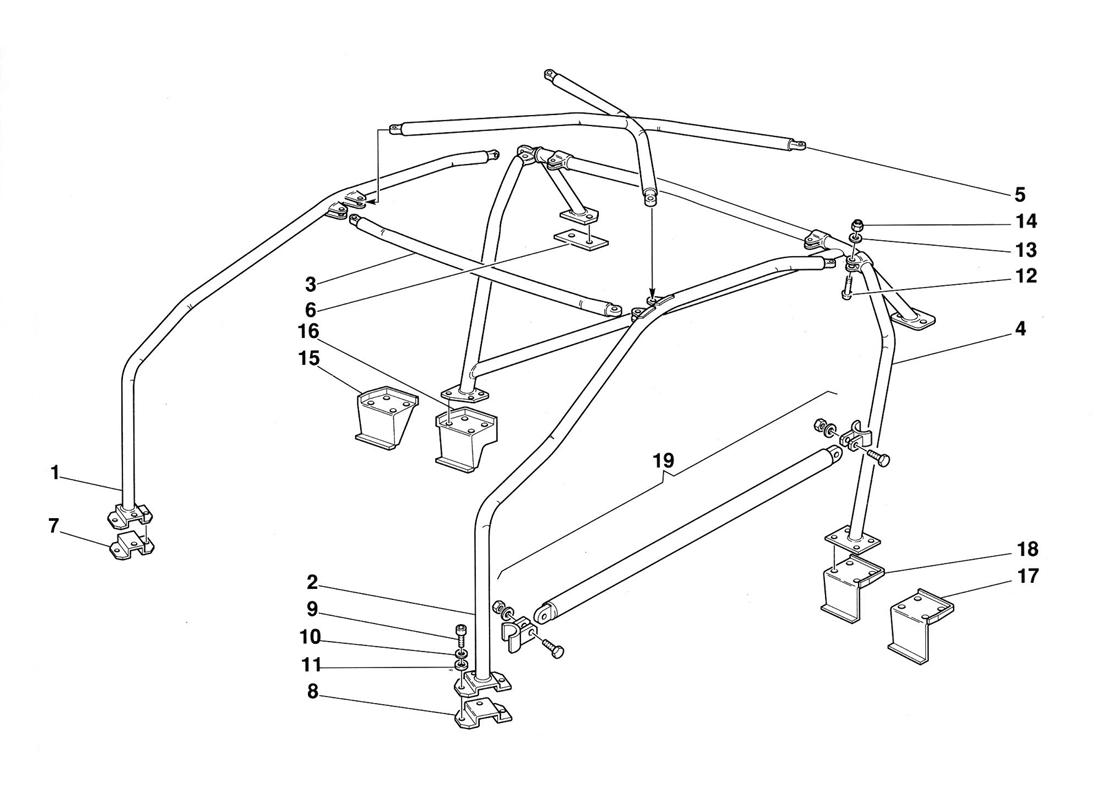

ROLL BAR

Go to Split View

ROLL BAR

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 145217 *Qty: 1 L.H. steering compl-roll bar Call
Location: - Prev | Next Part: 62965300 *Qty: 1 Plates assembly
(Valid for 2nd series 348 TS only from N 94269 USA version car and 94905 for all other versions).
Call
Location: - Prev | Next Part: 62965100 *Qty: 1 Plates assembly
(Valid for 1st series 346 TH and 348 TS all cars until N 94268 USA version car and 94904 for all other versions)
$57.78
Location: - Prev | Next Part: 145218 *Qty: 1 R.H. steering compl-roll bar $2,187.91
Location: 1 Prev | Next Part: 62964300 *Qty: 1 R.H. cross member
(Supplied with roll bar assembly only)
Call
Location: 2 Prev | Next Part: 62964300 *Qty: 1 L H. cross member
(Supplied with roll bar assembly only)
Call
Location: 3 Prev | Next Part: 62964400 *Qty: 1 Froni cross member
(Supplied with roll bar assembly only)
Call
Location: 4 Prev | Next Part: 62907100 *Qty: 1 Main frame rib for L H. sleering
(Supplied with roll bar assembly only)
Call
Location: 4 Prev | Next Part: 62923700 *Qty: 1 Main frame rib for R H. steering
(Supplied with roll bar assembly only)
Call
Location: 5 Prev | Next Part: 62971400 *Qty: 1 X-structure on the top
(Supplied with roll bar assembly only)
Call
Location: 6 Prev | Next Part: 62969900 *Qty: 2 Rear plate
(Supplied with plates assembly only)
Call
Location: 7 Prev | Next Part: 62967200 *Qty: 1 R.H front plale
(Supplied with plates assembly only)
Call
Location: 8 Prev | Next Part: 62967300 *Qty: 1 L.H front plate
(Supplied with plates assembly only)
Call
Location: 9 Prev | Next Part: 14306424 *Qty: 18 Screw $0.90
Location: 10 Prev | Next Part: 11198079 *Qty: 18 Conic washer Superseded
Location: 11 Prev | Next Part: 13550301 *Qty: 18 Washer $19.34
Location: 12 Prev | Next Part: 147798 *Qty: 10 Screw $3.34
Location: 13 Prev | Next Part: 12638601 *Qty: 10 Washer $0.90
Location: 14 Prev | Next Part: 147799 *Qty: 10 Nut $1.14
Location: 15 Prev | Next Part: 62965700 *Qty: 1 R.H. rear reinforced housing
(Valid for 1st series 346 TH and 348 TS all cars until N 94268 USA version car and 94904 for all other versions) (Supplied with plates assembly only)
Call
Location: 16 Prev | Next Part: 62967000 *Qty: 1 R.H. rear reinforced housing
(Valid for 1st series 346 TH and 348 TS all cars until N 94268 USA version car and 94904 for all other versions) (Supplied with plates assembly only)
Call
Location: 17 Prev | Next Part: 62966600 *Qty: 1 L.H. rear reinforced housing
(Valid for 1st series 346 TH and 348 TS all cars until N 94268 USA version car and 94904 for all other versions) (Supplied with plates assembly only)
Call
Location: 18 Prev | Next Part: 62967100 *Qty: 1 L.H. rear reinforced housing
(Valid for 1st series 346 TH and 348 TS all cars until N 94268 USA version car and 94904 for all other versions) (Supplied with plates assembly only)
Call
Location: 19 Prev | Next Part: 62974600 *Qty: 2 Protection cross member kit
(Valid for 1st series 346 TH and 348 TS all cars until N 94268 USA version car and 94904 for all other versions) (Supplied with plates assembly only)
$493.15

* Quantity shown indicates the number of pieces used in the diagram.
